Headstock Tailstock welding positioners 1 Axis with Rail
Rotate Long Parts with Precision (with Rail system)
Headstock Tailstock welding positioners 1 Axis with Rail
Heavy-duty Cyclotron Headstock tailstock welding positioners 1 Axis with Rail system from 500 kgs to 5 tons load capacity. Designed for Chasis, dumpers, pipes, booms, structural frames, pressure vessels, wind components, and oversized fabrications requiring synchronized 360° rotation.
- Up to 5 Tons Load Capacity
- Smooth Variable Speed Rotation
- Precision Rotational Control
- Remote Control Options
- Designed for Continuous Industrial Operation
Introduction
Handling long and heavy fabrications during welding is challenging. Components such as pipes, pressure vessels, structural beams, crane booms, and heavy equipment frames need stable support with precise positioning and controlled movement throughout the welding process.
Cyclotron’s Headstock Tailstock Welding Positioner (1 Axis) is designed to provide reliable dual-end support and greater rotational control for long workpieces. By securing the fabrication between a powered headstock and tailstock, the system allows operators and robotic welding cells to maintain the ideal welding position, improving weld quality while reducing handling time.
Our heavy-duty welding positioners are used across fabrication shops, pressure vessel manufacturing plants, structural steel facilities, and automated welding lines where productivity and precision are critical.
Key features

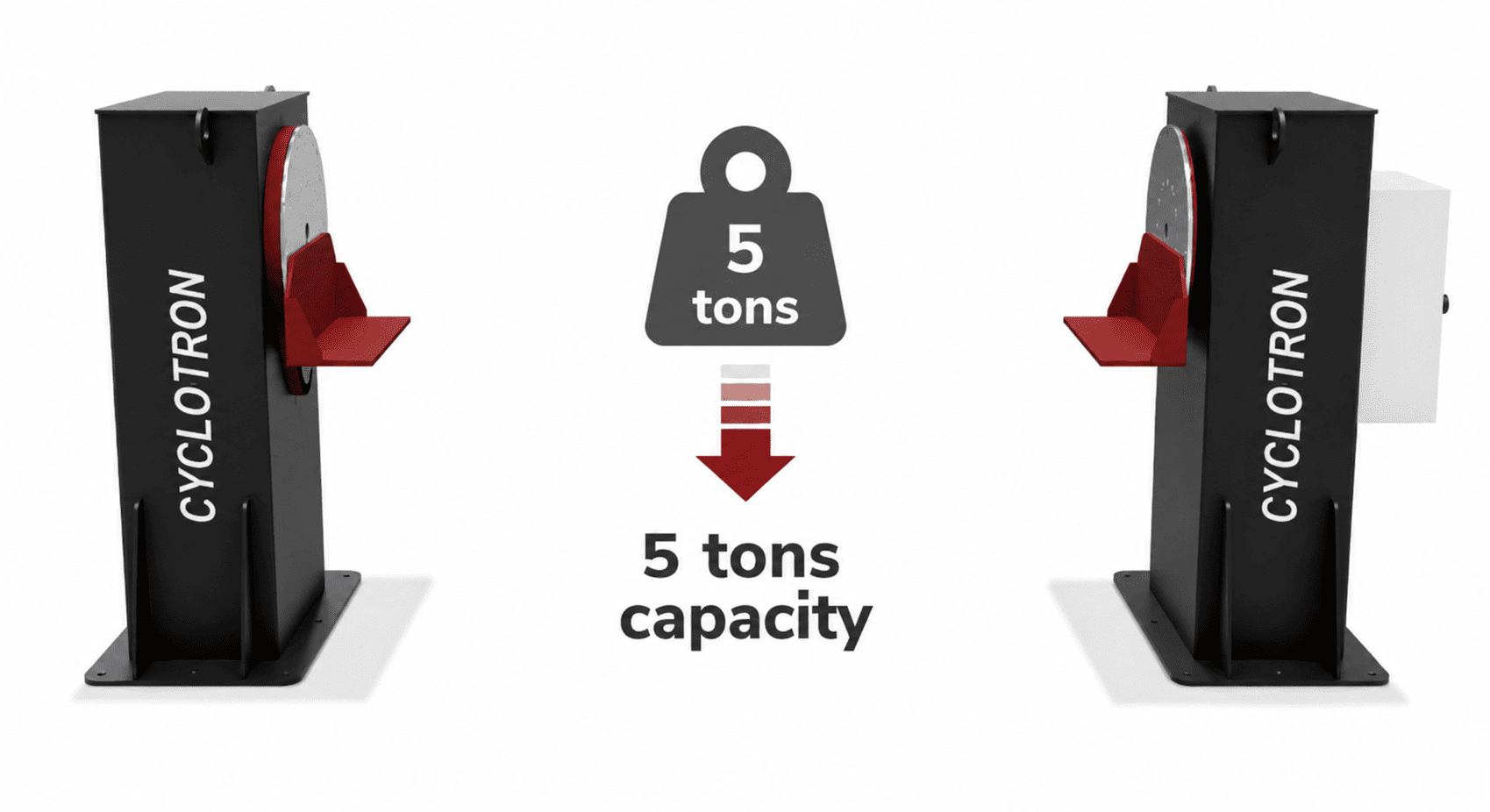

Upto 5 tons capacity
Cyclotron Headstock tailstock welding positioners are available from 500 kgs to 5 tons load capacity.

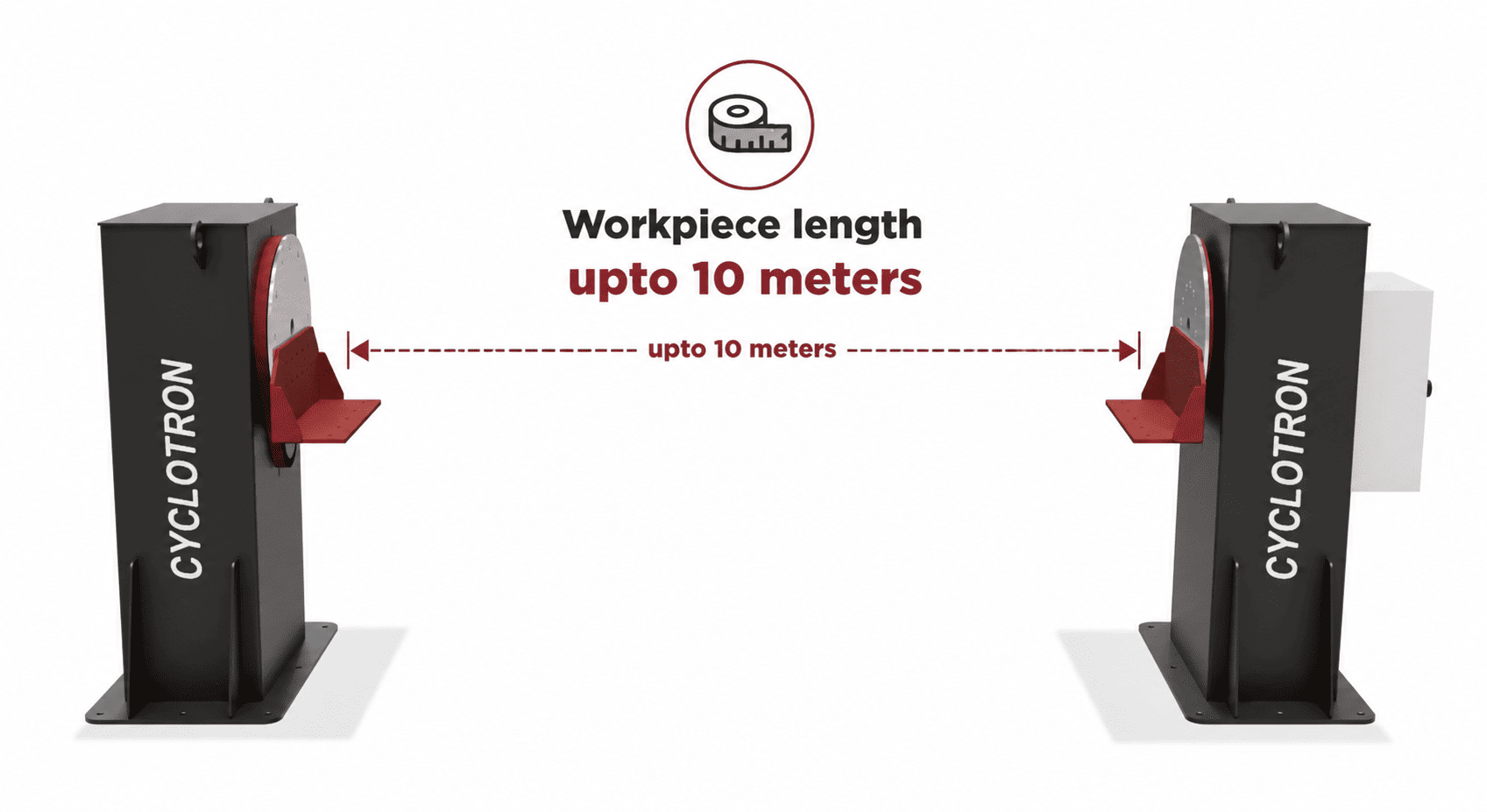

Workpiece Lengths Up to 10 Meters
Engineered to handle long and oversized fabrications up to 10 meters and beyond. Ideal for pipes, structural beams, pressure vessels, wind energy components, and other heavy-duty welding applications.

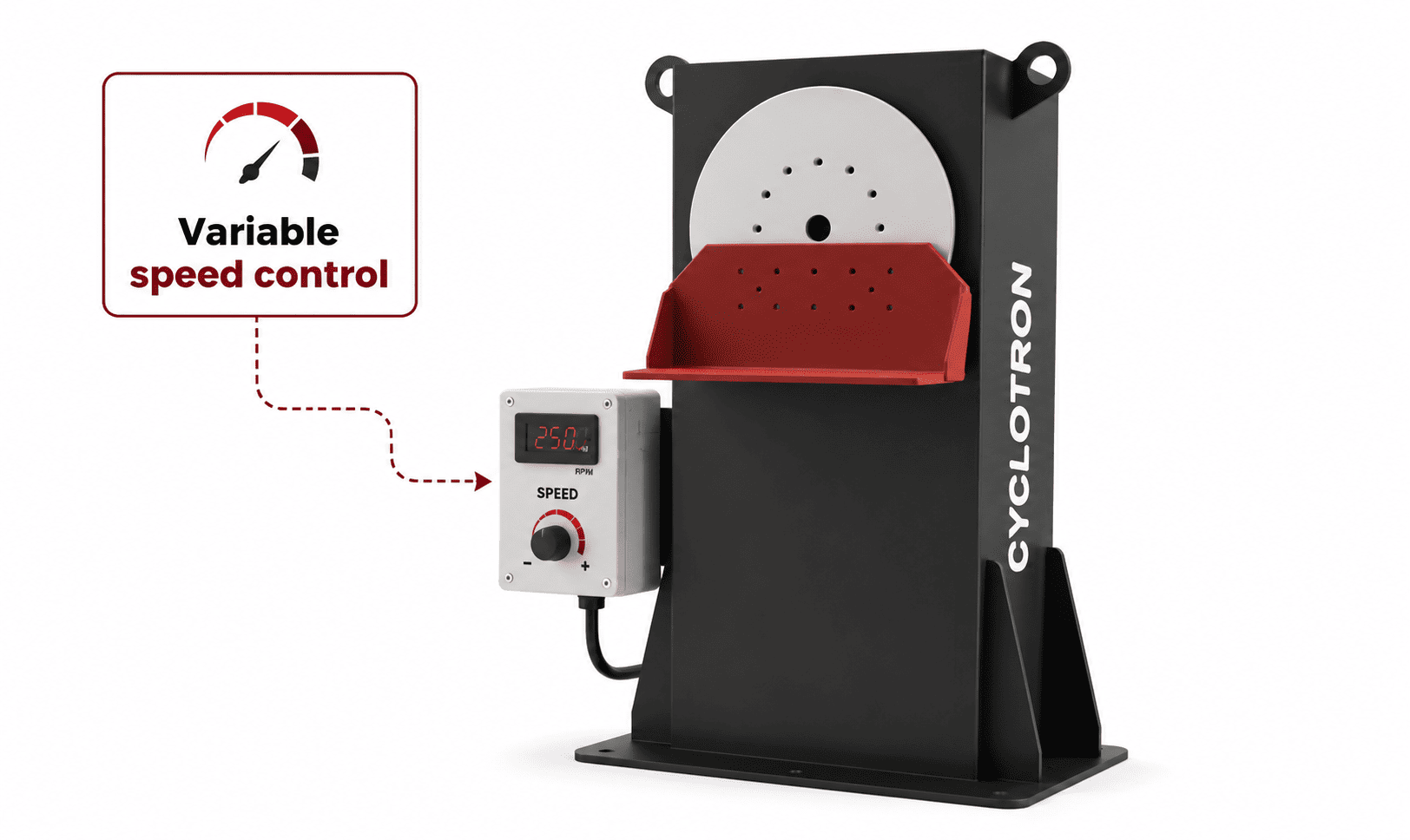

Variable Speed Rotation Control
The positioner features variable speed rotation control, enabling operators to precisely adjust the rotational speed to suit different welding processes, material thicknesses, and workpiece sizes.
Pendant operated
The ergonomic pendant control allows operators to conveniently control rotation, start/stop functions, and speed adjustments from a safe working distance, improving precision, productivity, and operational safety.
Branded gearbox and motors
Equipped with internationally recognized gearboxes and motors for reliable performance and long service life. Backed by a 1-year global warranty, allowing warranty claims and support anywhere in the world for complete peace of mind.
Synchronized Headstock-Tailstock Drive
The synchronized headstock-tailstock drive system ensures smooth and uniform rotation of long workpieces, minimizing misalignment and vibration while delivering stable positioning for high-quality welding results.
Safety first approach
Designed with operator safety as a top priority, the positioner incorporates multiple safety features including emergency stop systems, secure locking mechanisms, and reliable control options.
1 Year Warranty
Every positioner is backed by a 1-year warranty against manufacturing defects, ensuring dependable performance and customer confidence. Our dedicated support team provides prompt assistance.

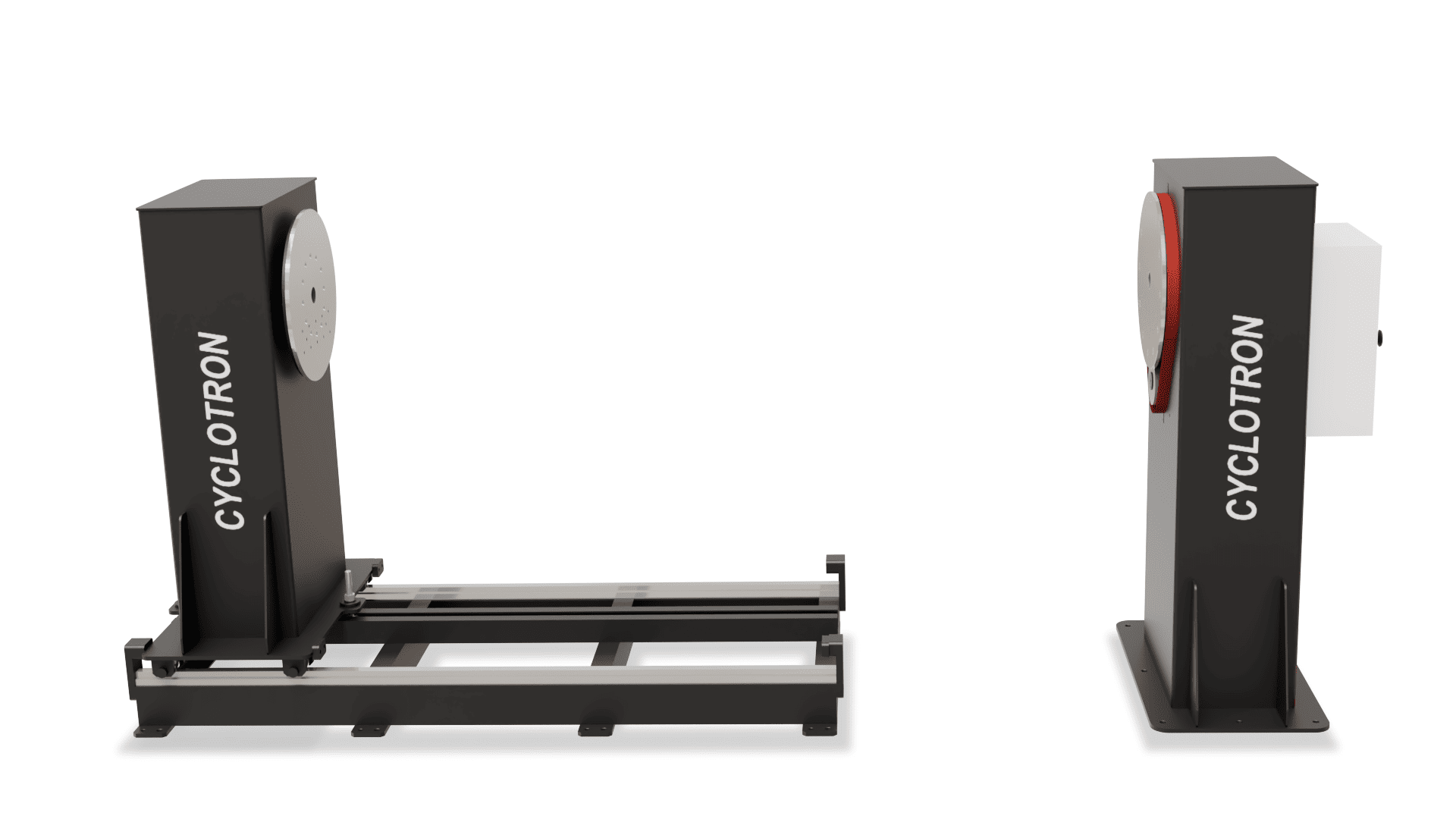

Headstock tailstock positioner 1 axis with rail

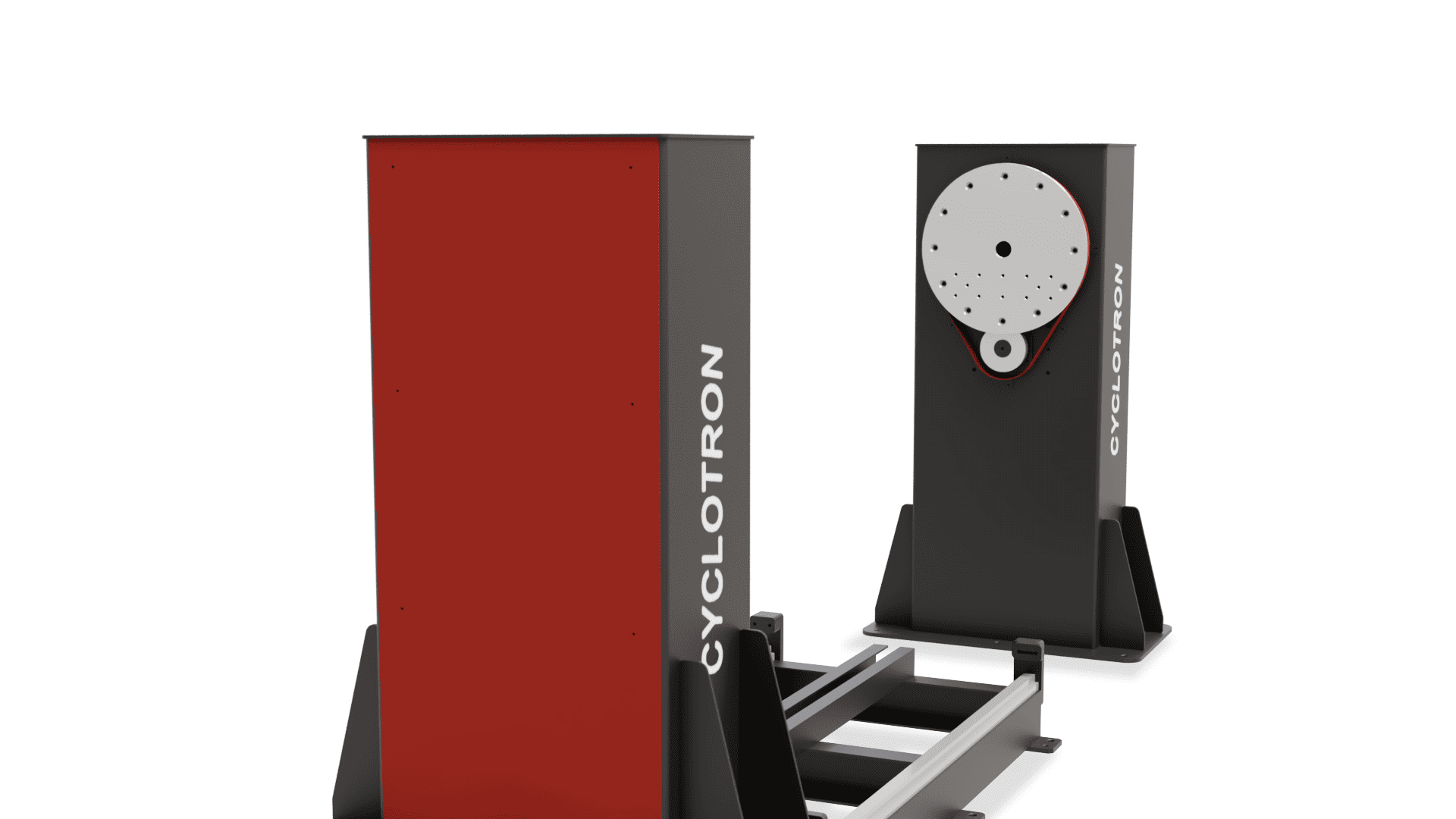

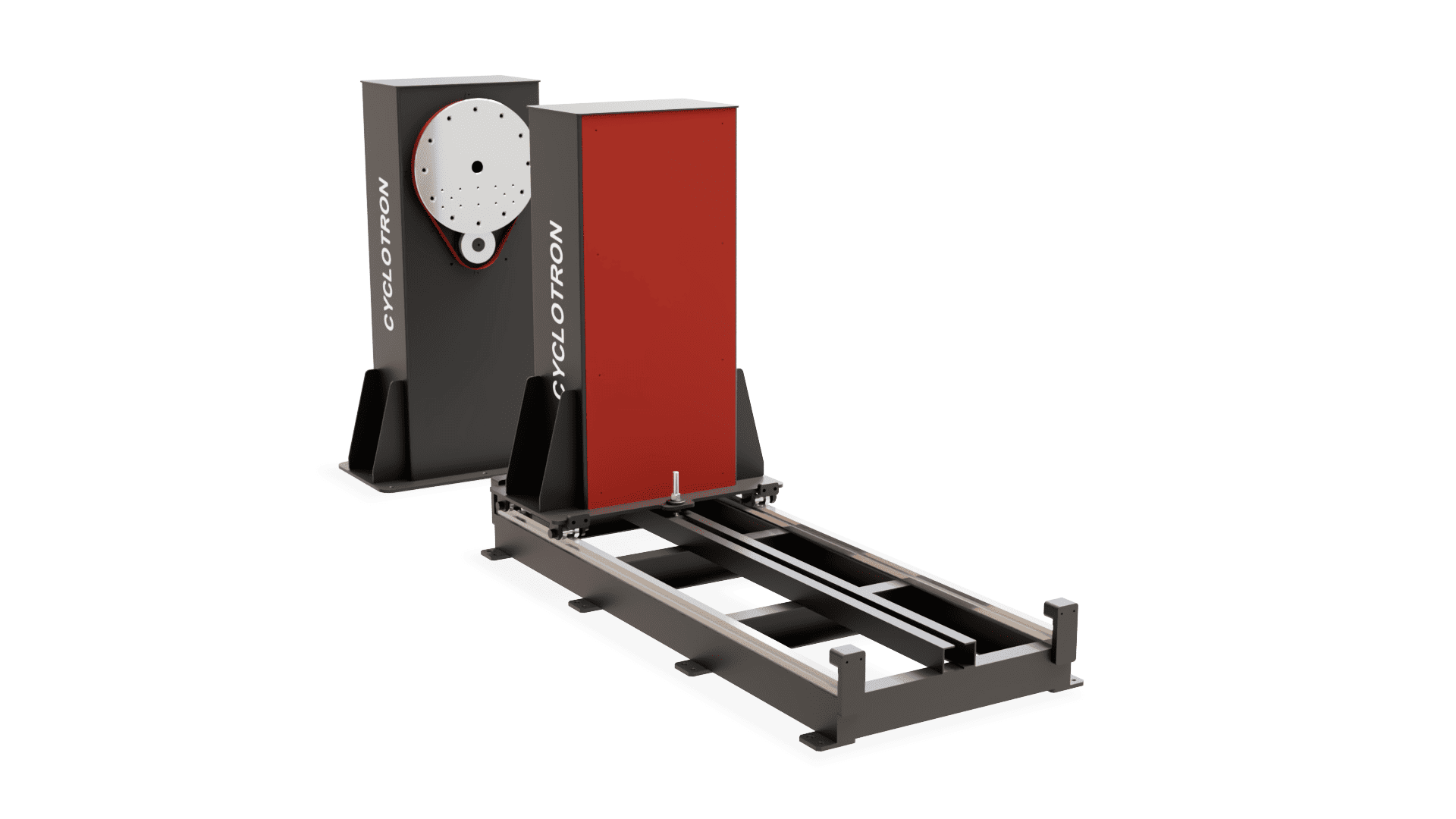

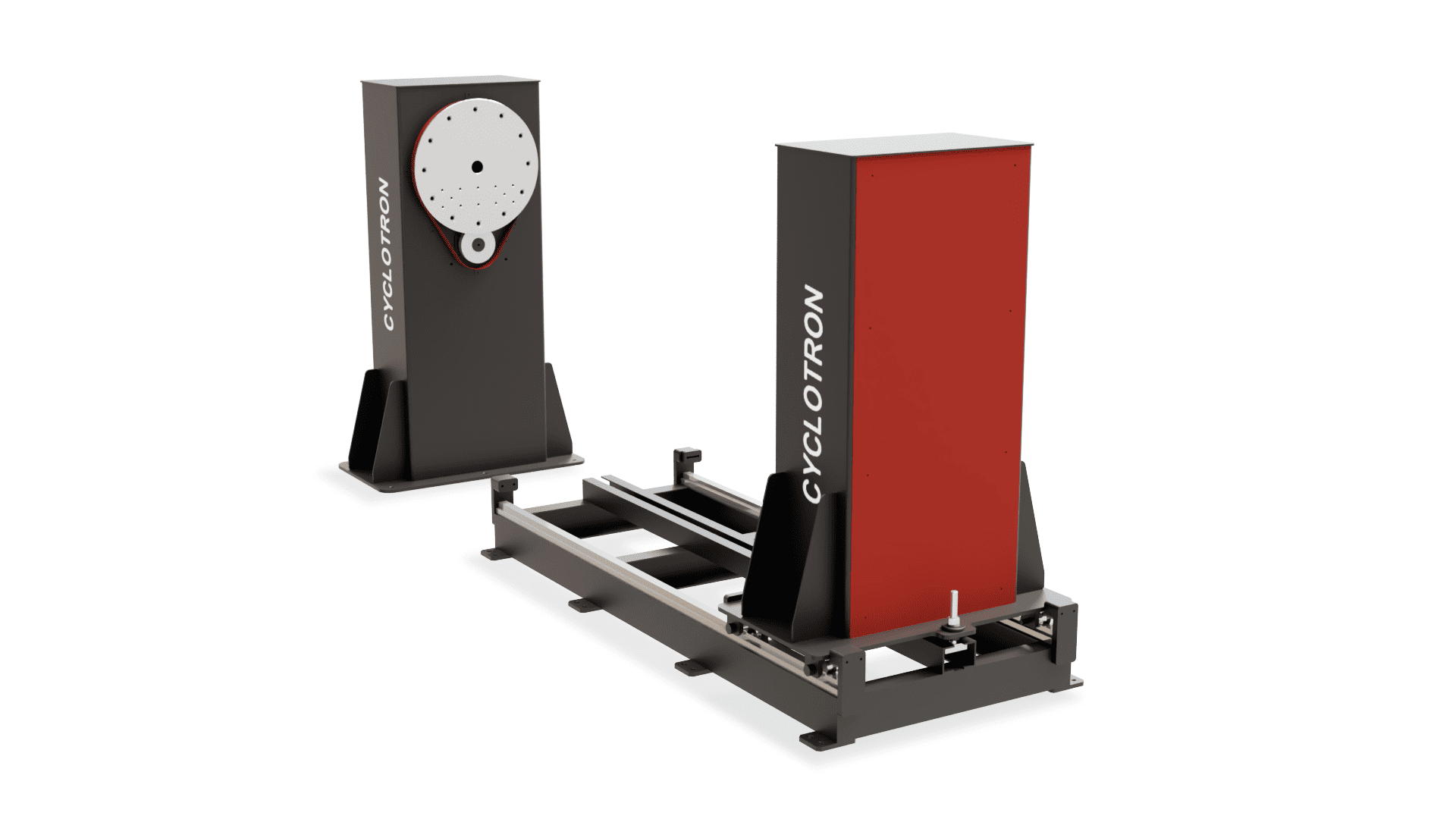

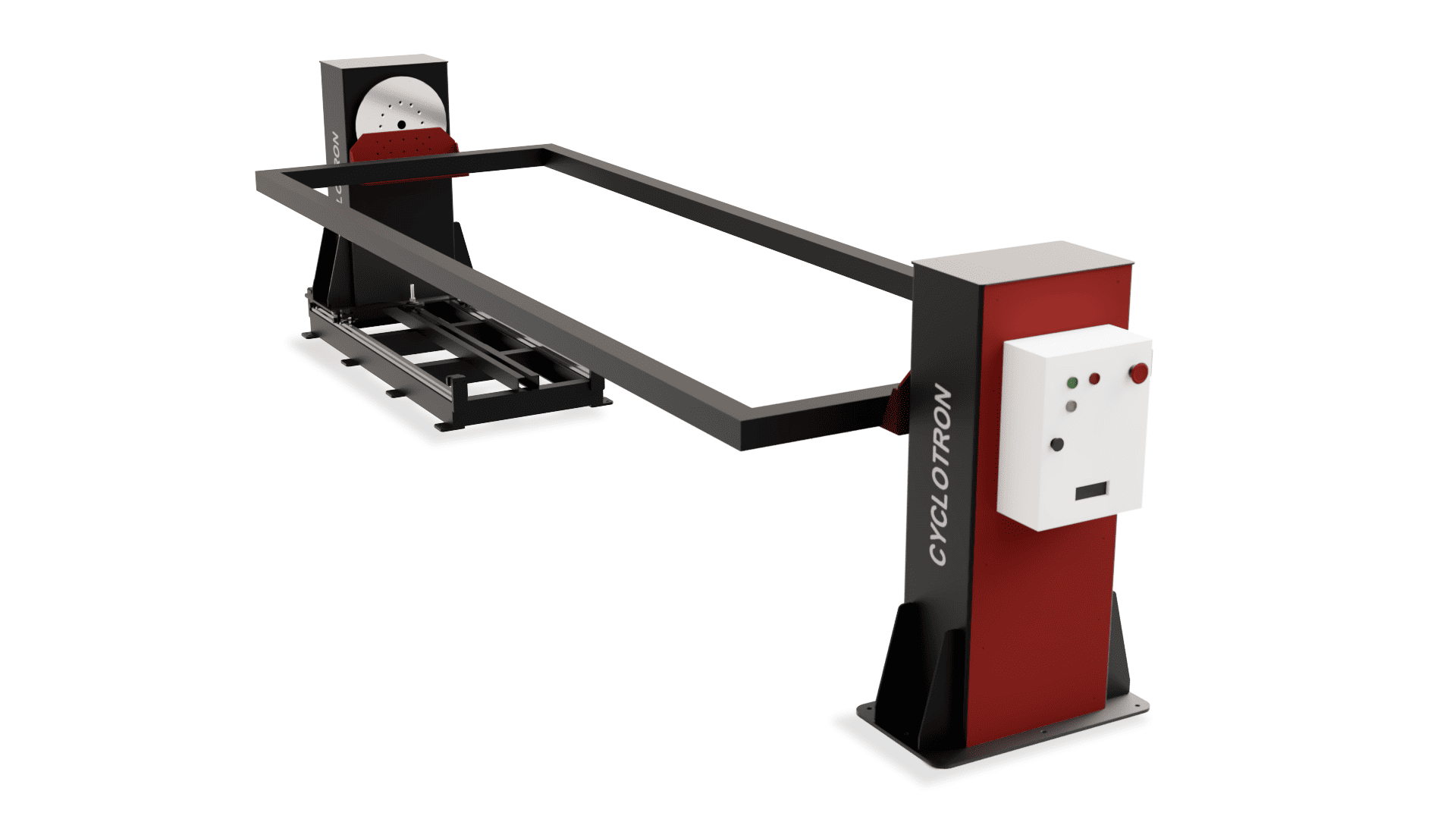

Headstock tailstock 1 axis positioner with rail

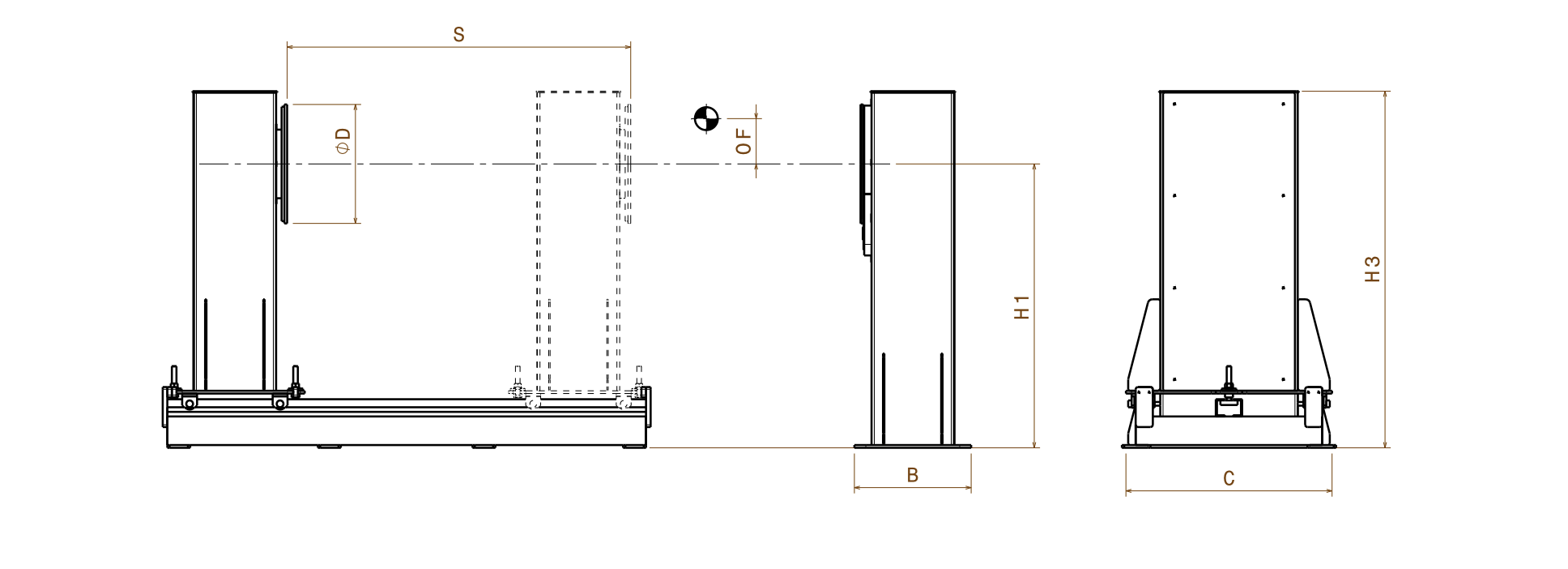

| CY-HTP-1AX-R | Sym | Unit | CY-HTP-1AX-R-1 | CY-HTP-1AX-R-2 | CY-HTP-1AX-R-3 | CY-HTP-1AX-R-5 |
|---|---|---|---|---|---|---|
| Capacity | kg | 1000 | 2000 | 3000 | 5000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | 0.2 - 1.15 | 0.2 - 1 | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 1500 | 3000 | 4500 | 5000 | |
| Rotation Axle Height | H1 | Nm | 1200 | 1200 | 1300 | 1500 |
| Offset Distance | OF | mm | 150 | 150 | 150 | 100 |
| Worktable Diameter | ØD | mm | 500 | 500 | 500 | 700 |
| Max. Workpiece Diameter | mm | 1950 | 1950 | 1950 | 2450 | |
| Height | H3 | mm | 1600 | 1600 | 1800 | 2000 |
| Length | B | mm | 500 | 600 | 650 | 700 |
| Width | C | mm | 900 | 950 | 1050 | 1200 |
| Motor Power of Table | kW | 0.37 | 0.55 | 0.75 | 1.1 | |
| Weight | kg | 700 | 850 | 1100 | 1500 | |
| Rail stroke | S | mm | 1500 | 1500 | 2000 | 2500 |
*The above values can change without prior notice. The values are approximate.
Headstock tailstock Positioner technical charts
| CY-HTP-1AX-R | Sym | Unit | CY-HTP-1AX-R-1 |
|---|---|---|---|
| Capacity | kg | 1000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 1500 | |
| Rotation Axle Height | H1 | Nm | 1200 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1600 |
| Length | B | mm | 500 |
| Width | C | mm | 900 |
| Motor Power of Table | kW | 0.37 | |
| Weight | kg | 700 | |
| Rail stroke | S | mm | 1500 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX-R | Sym | Unit | CY-HTP-1AX-2-R |
|---|---|---|---|
| Capacity | kg | 2000 | |
| Rotation Speed | rpm | 0.2 - 1.15 | |
| Max. Rotational Torque | Nm | 3000 | |
| Rotation Axle Height | H1 | Nm | 1000 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1220 |
| Length | B | mm | 600 |
| Width | C | mm | 950 |
| Motor Power of Table | kW | 0.55 | |
| Weight | kg | 850 | |
| Rail stroke | S | mm | 1500 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX-R | Sym | Unit | CY-HTP-1AX-3-R |
|---|---|---|---|
| Capacity | kg | 3000 | |
| Rotation Speed | rpm | 0.2 - 1 | |
| Max. Rotational Torque | Nm | 4500 | |
| Rotation Axle Height | H1 | Nm | 1000 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1250 |
| Length | B | mm | 650 |
| Width | C | mm | 1050 |
| Motor Power of Table | kW | 0.75 | |
| Weight | kg | 1100 | |
| Rail stroke | S | mm | 2000 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX-R | Sym | Unit | CY-HTP-1AX-5-R |
|---|---|---|---|
| Capacity | kg | 5000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 5000 | |
| Rotation Axle Height | H1 | Nm | 1250 |
| Offset Distance | OF | mm | 100 |
| Worktable Diameter | ØD | mm | 700 |
| Max. Workpiece Diameter | mm | 2450 | |
| Height | H3 | mm | 1500 |
| Length | B | mm | 700 |
| Width | C | mm | 1200 |
| Motor Power of Table | kW | 1.1 | |
| Weight | kg | 1500 | |
| Rail stroke | S | mm | 2500 |
*The above values can change without prior notice. The values are approximate.
Applications of Headstock Tailstock Positioners 1 axis with rail
1.Pipe and Tube Welding
Ideal for pipe spools, process piping systems, and tubular fabrication projects.
2. Structural Beam Fabrication
Provides stable support for long beams, columns, and structural assemblies.
3. Pressure Vessel Manufacturing
Supports vessel shells, storage tanks, and cylindrical fabrication projects.
4. Wind Energy Components
Used in the production of wind tower sections and renewable energy structures
5. Heavy Equipment Frames
Suitable for construction, mining, and industrial equipment manufacturing.
6. Crane Boom Welding
Allows controlled positioning and rotation of long boom assemblies.
7. Automotive Chassis Production
Supports repetitive production environments and robotic welding systems.
8. Aerospace and Defense Fabrication
Provides accurate positioning for precision fabrication applications.
How a Headstock Tailstock Welding Positioner Works
- 1. Powered Headstock Operation: The headstock houses the drive motor, gearbox, and rotation mechanism responsible for turning the workpiece.
- 2. Tailstock Support and Alignment: The tailstock supports the opposite end of the fabrication and maintains proper alignment during rotation
- 3. Workpiece Clamping System: The workpiece is securely mounted using application-specific fixtures and clamping arrangements.
- 4. Robotic Welding Integration: The positioner can synchronize with robotic welding systems to create automated welding cells.
- 5. Automated Positioning and Programming: Advanced controls support repeatable positioning and programmable welding sequences.
Advantages of headstock tailstock welding positioners
- Superior Stability: During Welding These positioners offer axial support at both ends of the workpiece, dramatically increasing structural stability during rotation. This dual-end support is crucial when handling long or heavy components, as it prevents deflection, sagging, and vibration, factors that often compromise weld quality. The result is a more stable, controlled, and precise welding environment.
- Precision-Controlled Rotation: With a motorized headstock, operators can achieve highly accurate control over rotational speed and positioning. This capability is particularly beneficial for: Long seam welds Circular welds Multi-pass robotic welding
- Optimal Weld Accessibility: One of the biggest welding challenges is accessing difficult-to-reach weld zones. With this positioner, the workpiece can be rotated and tilted to achieve ideal torch angles and line-of-sight access for all weld areas. This promotes: Full weld fusion Deeper penetration Reduced spatter
- Enhanced Operator Safety: Manual handling of large workpieces introduces risks such as crush injuries, back strain, and exposure to hazardous welding arcs. By automating workpiece positioning, these positioners remove the need for manual lifting and frequent repositioning, significantly: Reducing operator fatigue Preventing OSHA-reportable incidents Creating a safer and more ergonomic work environment
- Greater Operational Flexibility: Welding businesses often handle a diverse range of projects, from structural frames to custom pipework. The modular design of headstock and tailstock positioners allows for: Quick fixture changes Adaptation to various workpiece lengths, diameters, and weights Smooth switching between production runs
- Long-Term Cost Efficiency: While the initial investment in a robotic positioner may be significant, the return on investment (ROI) is undeniable. Over time, you will see measurable cost reductions through: Lower labor dependency Faster cycle times Reduced weld defects and rework Higher throughput Consistent part quality These savings compound over projects, making this equipment an asset rather than an expense.
Get Yours with Cyclotron Automation
Upgrade your welding operations with Cyclotron Automation. Our Headstock tailstock welding positioners are a strategic investment designed to deliver high-quality welds while significantly reducing operational costs and downtime. With these advanced machines, large and heavy workpieces are easily handled, allowing you to achieve precise welds every time without manual repositioning. Their motor-assisted controls enable smooth rotation, tilting, and vertical movement, ensuring that each weld is executed at the optimal angle for unmatched consistency and strength.
At Cyclotron Automation, we understand that every welding requirement is unique. That’s why we are committed to helping you select the best headstock tailstock welding positioner that fits your budget and specific needs. Shop with us to experience cutting-edge technology that enhances productivity, improves safety, and drives long-term savings. Let’s discuss your welding requirements, and we’ll recommend the perfect solution to elevate your operations. Get yours with Cyclotron Automation today!
Headstock Tailstock welding positioner
Headstock Tailstock welding positioner (with Rail)
Frequently asked questions (FAQs)
1.What is a headstock tailstock welding positioner with rail?
A headstock tailstock welding positioner is a positioning system that supports and rotates a workpiece between a powered headstock and a tailstock to improve welding access and control. Rail system is provided for the adjustment of the tailstock
2.What is the difference between a welding rotator and a headstock tailstock positioner?
A welding rotator supports a cylindrical component on rollers, whereas a headstock tailstock positioner clamps and rotates the workpiece between two support points.
3. Can the positioner be integrated with robotic welding systems?
Yes. Our welding positioners can be synchronized with robotic welding systems and industrial automation controls.
4. What is the maximum workpiece length supported?
Standard systems can handle workpieces up to 10 meters or more, depending on the application.
5. Can the tailstock be motorized?
Yes. We offer motorized tailstock options when synchronized movement is required.
6. What load capacities are available?
Our standard welding positioners models range from 500 kg to 5 tons, with higher capacities available on request.
7. Is variable speed rotation available?
Absolutely. Variable speed control is available to match different welding processes.
8. Can Cyclotron customize the positioner?
Yes. We design a custom welding positioner based on payload, dimensions, and automation requirements.
9. What industries use headstock tailstock welding positioners?
They are commonly used in pipe fabrication, pressure vessel manufacturing, structural steel fabrication, automotive, aerospace, mining, and construction equipment industries.
10. Do you provide installation and commissioning support?
Yes. At Cyclotron, we provide installation, commissioning, operator training, and after-sales support of the welding positioners.
