Cyclotron Universal Welding Positioners

Rotate & Tilt Parts with Precision

Cyclotron Universal Welding Positioners

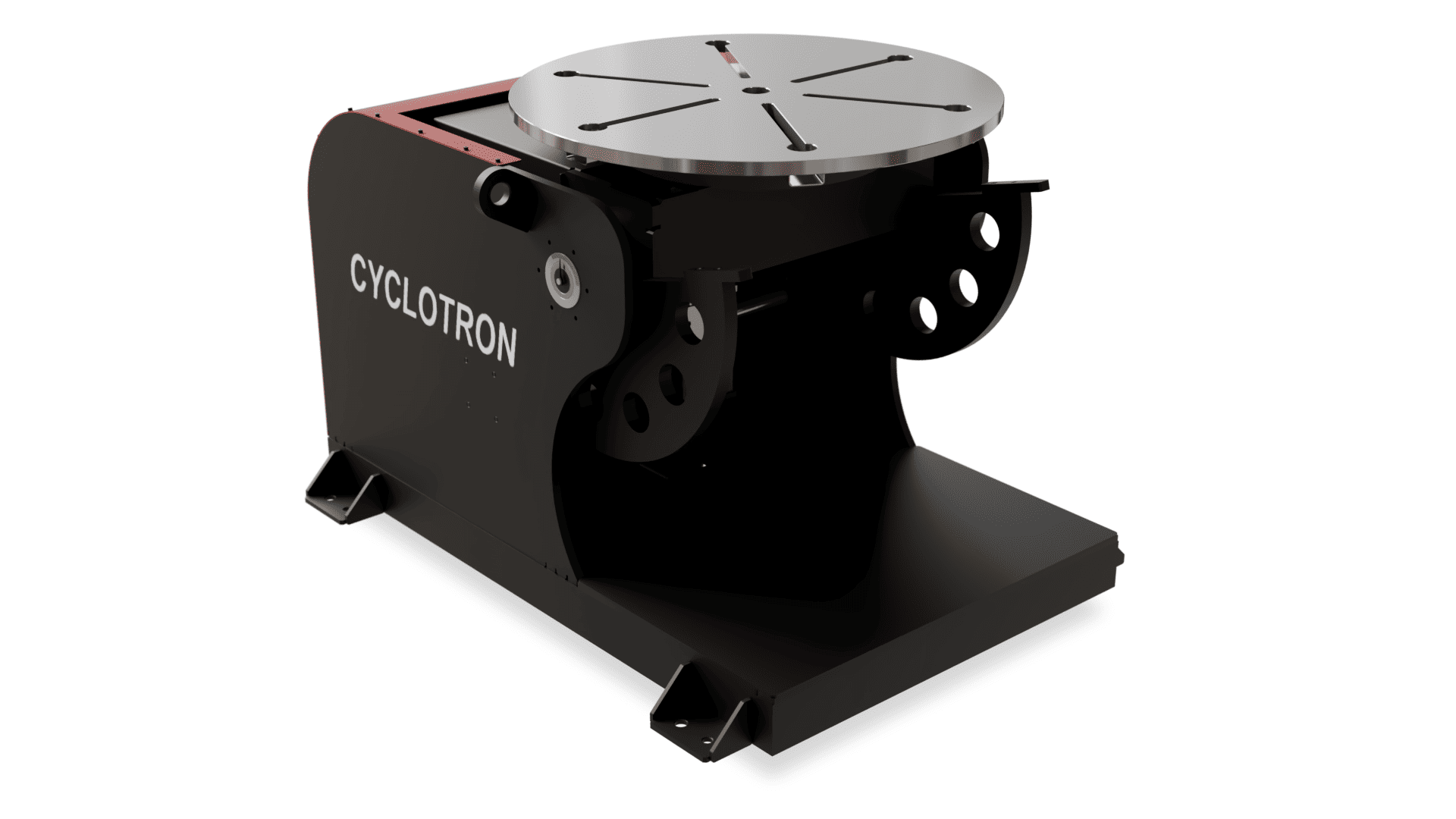

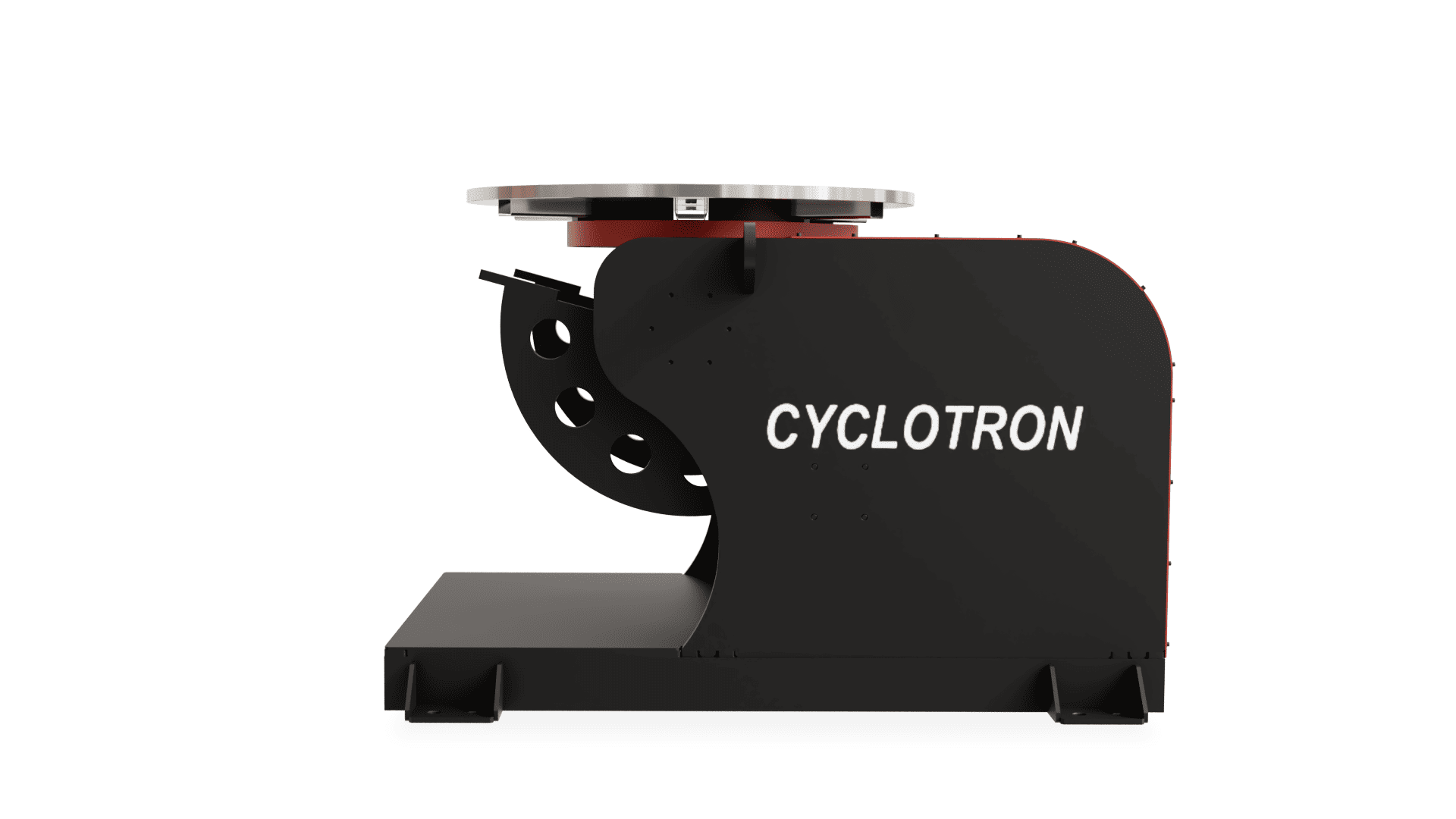

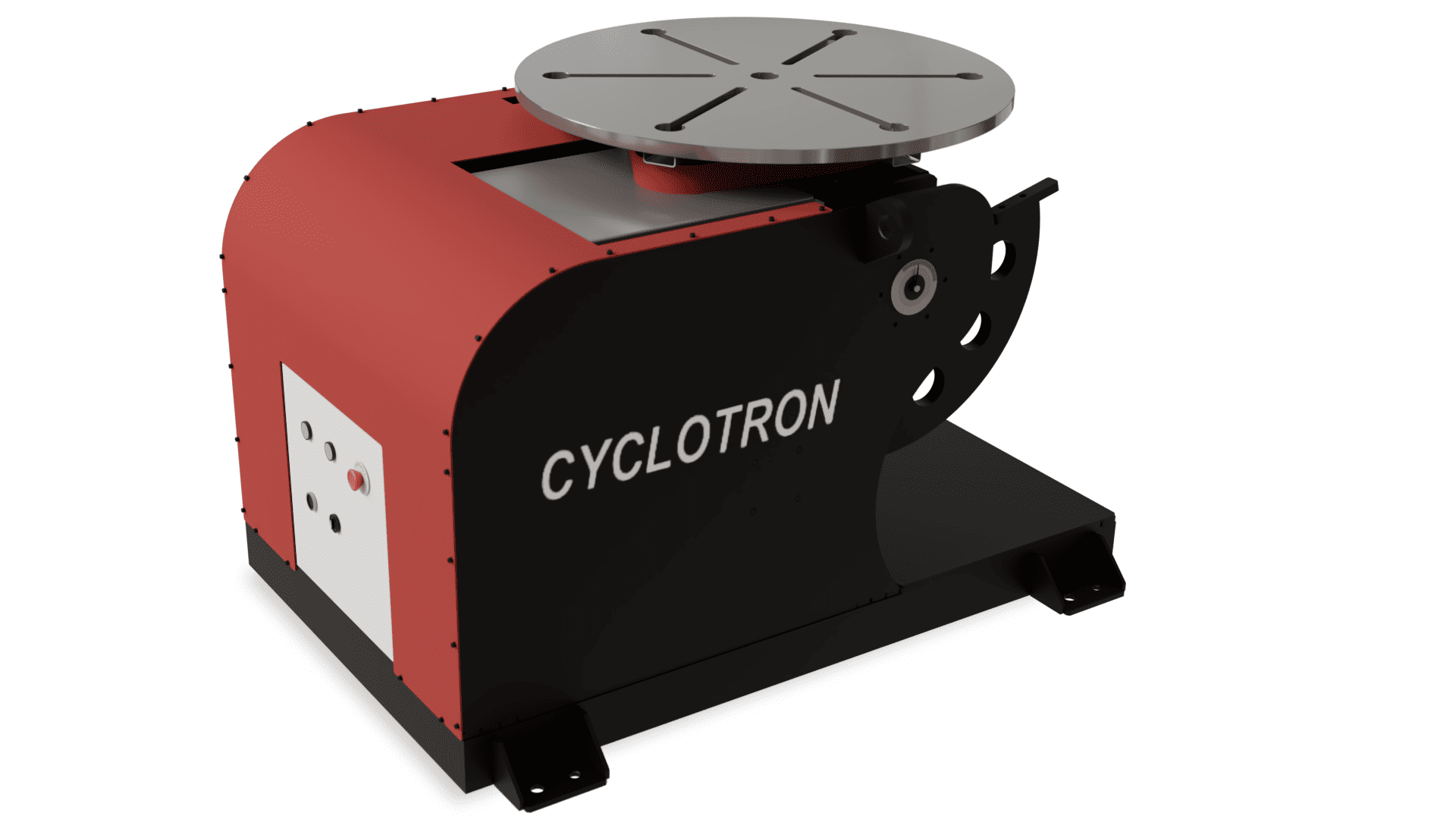

Heavy-duty Cyclotron Universal welding positioners from 1 to 20 tons load capacity. 2 Axis rotation (Tilting and rotation) engineered for smooth rotational positioning, improved weld accessibility, and higher welding productivity.

Up to 20 Tons Load Capacity
Smooth Variable Speed Rotation
Precision Rotational Control
Foot Pedal & Remote Control Options
Designed for Continuous Industrial Operation

Key features

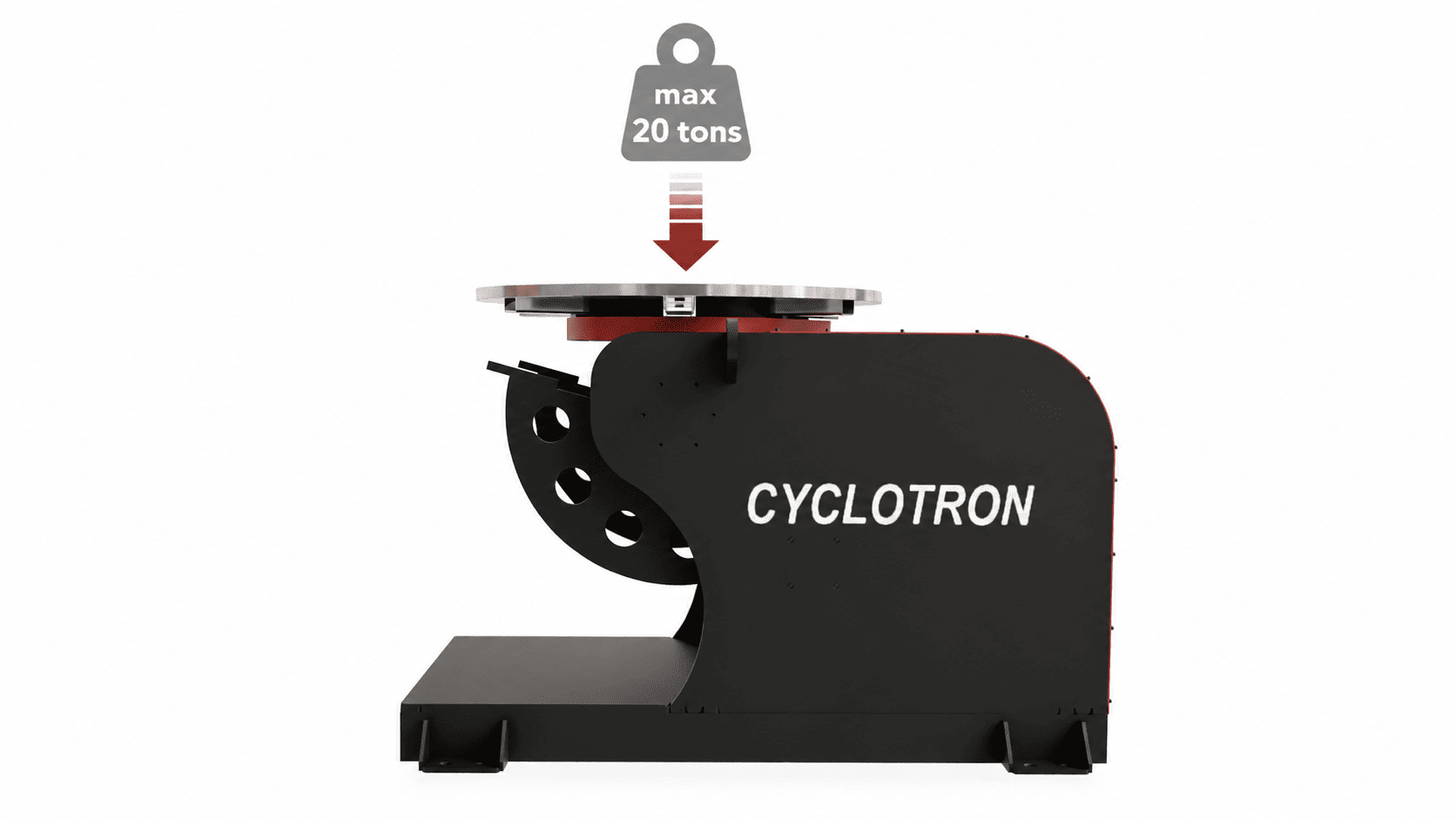

20 tons load capacity

Cyclotron Turntables are available from 1 ton to 20 tons load capacity.

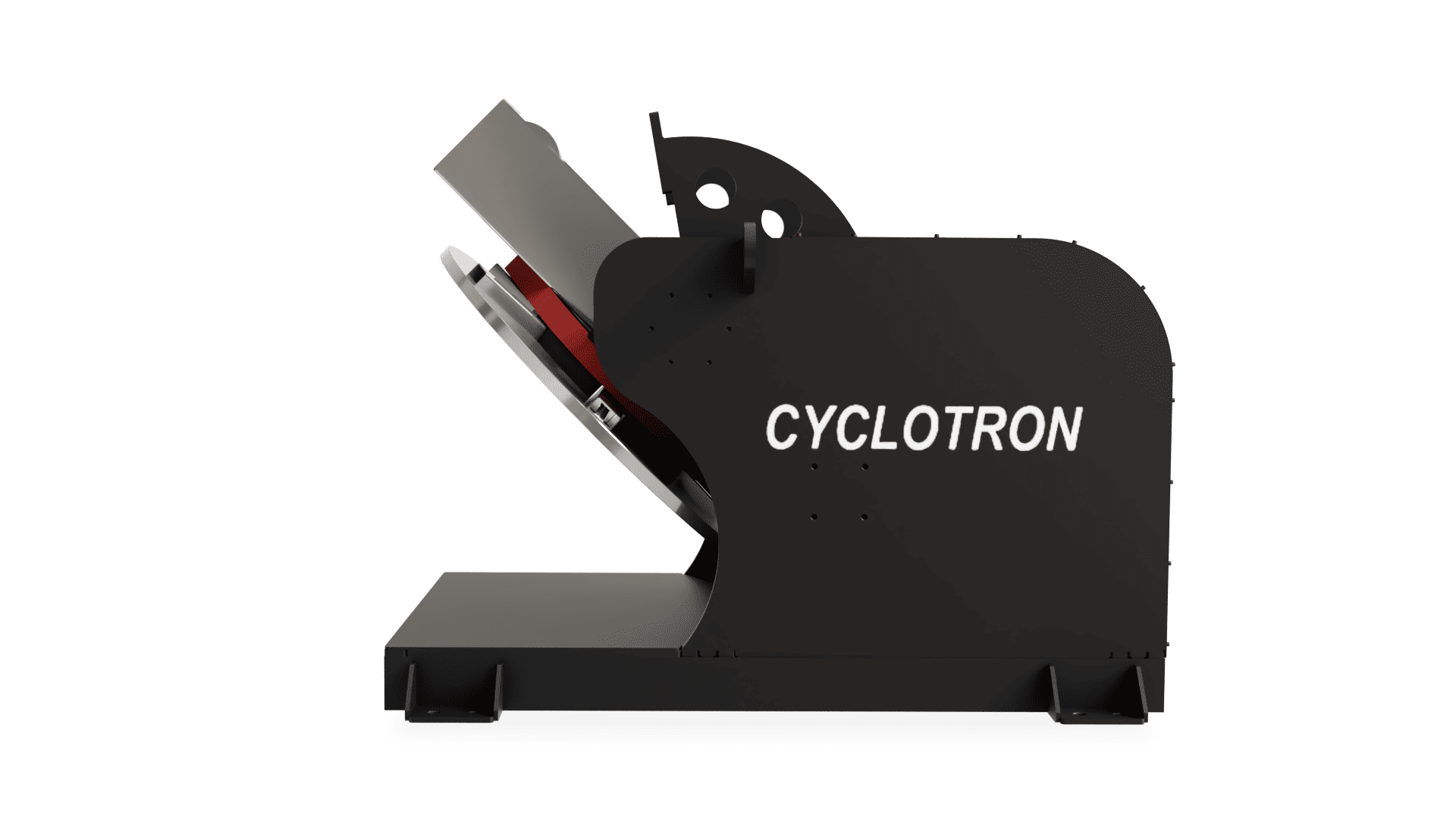

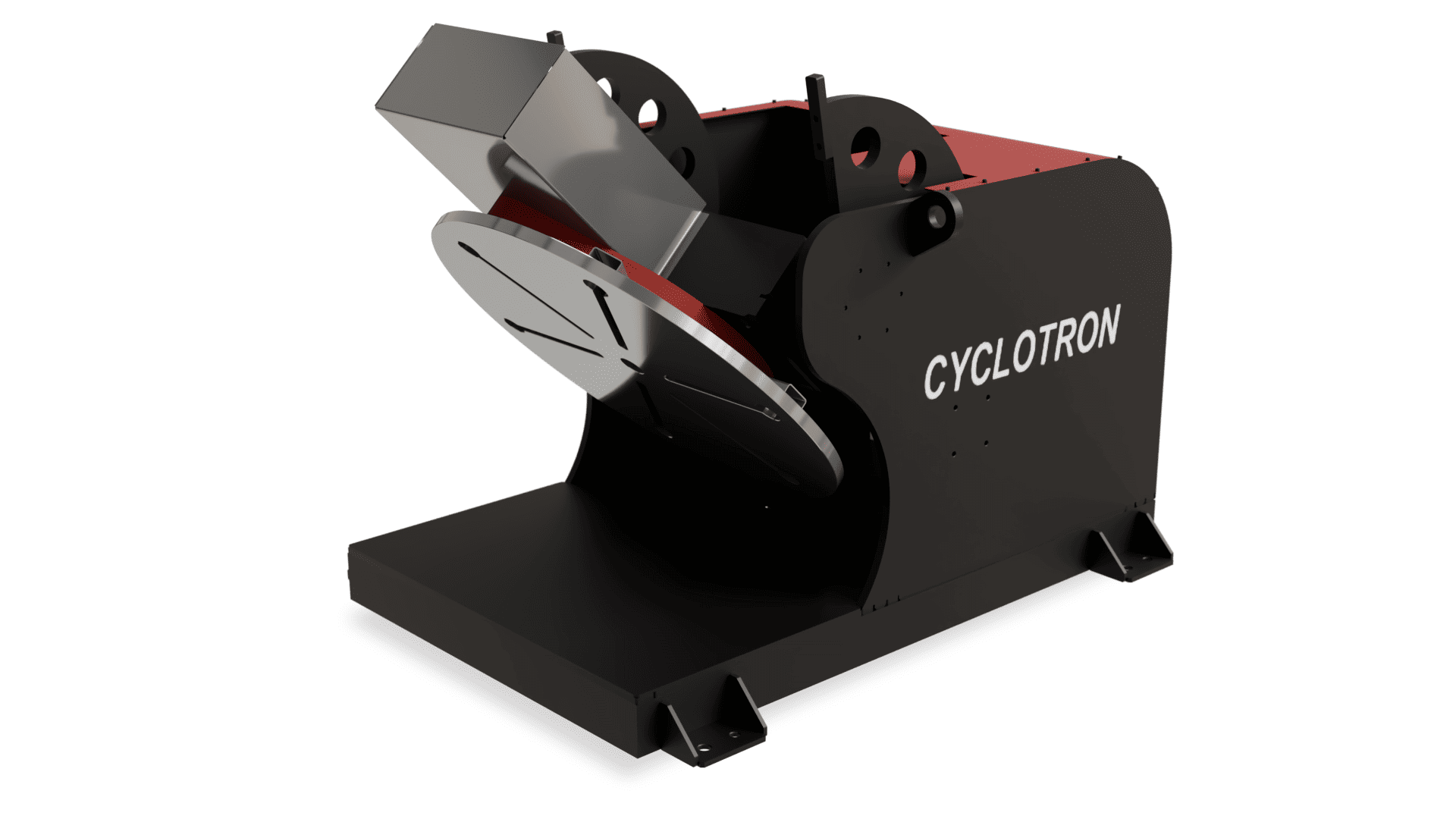

0-135 Tilting

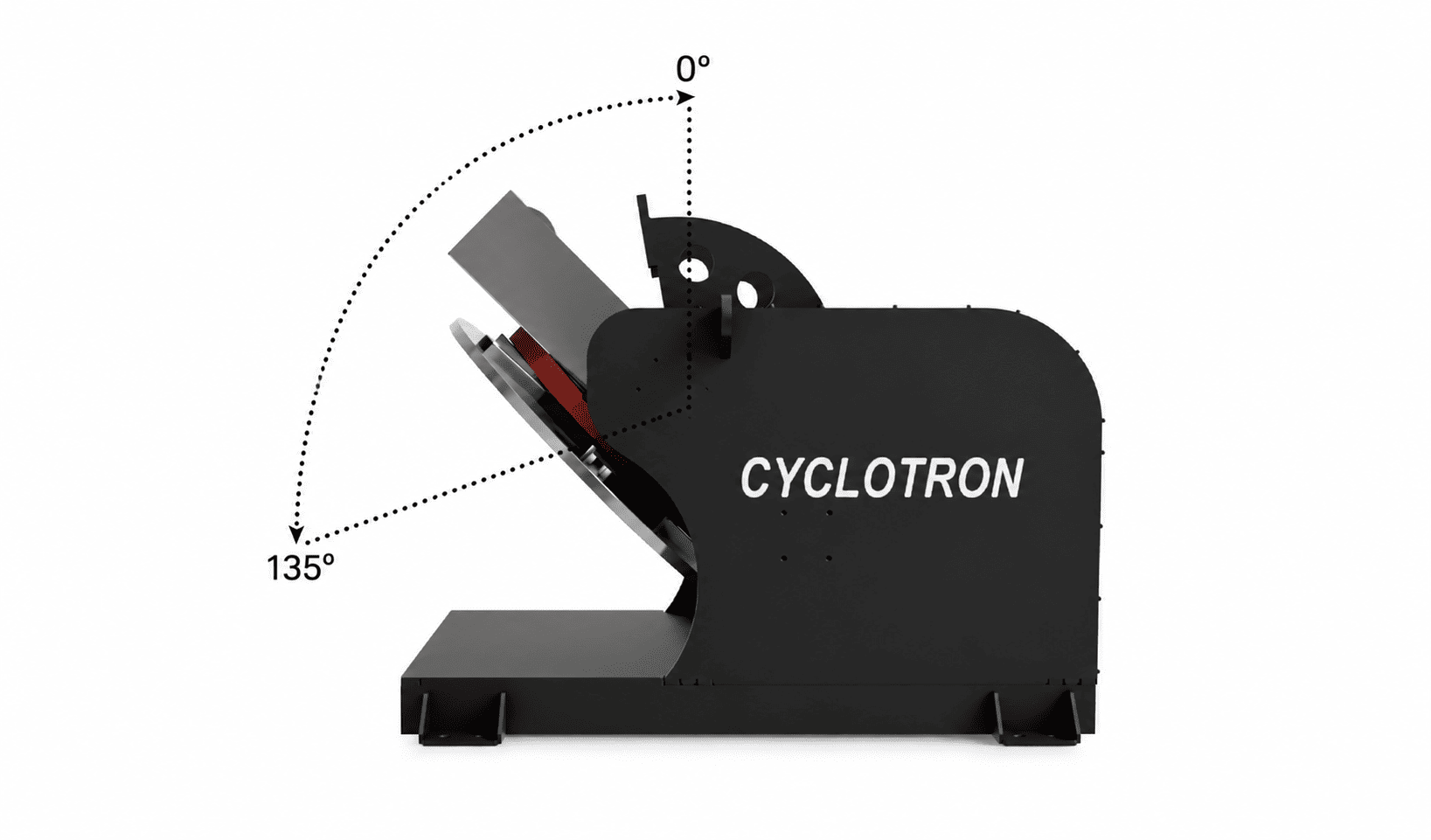

The positioner offers a wide tilting range from 0° to 135°, allowing operators to position workpieces at the most convenient welding angle. It can be stopped at any angle as per the welders requirments

Variable Speed Rotation Control

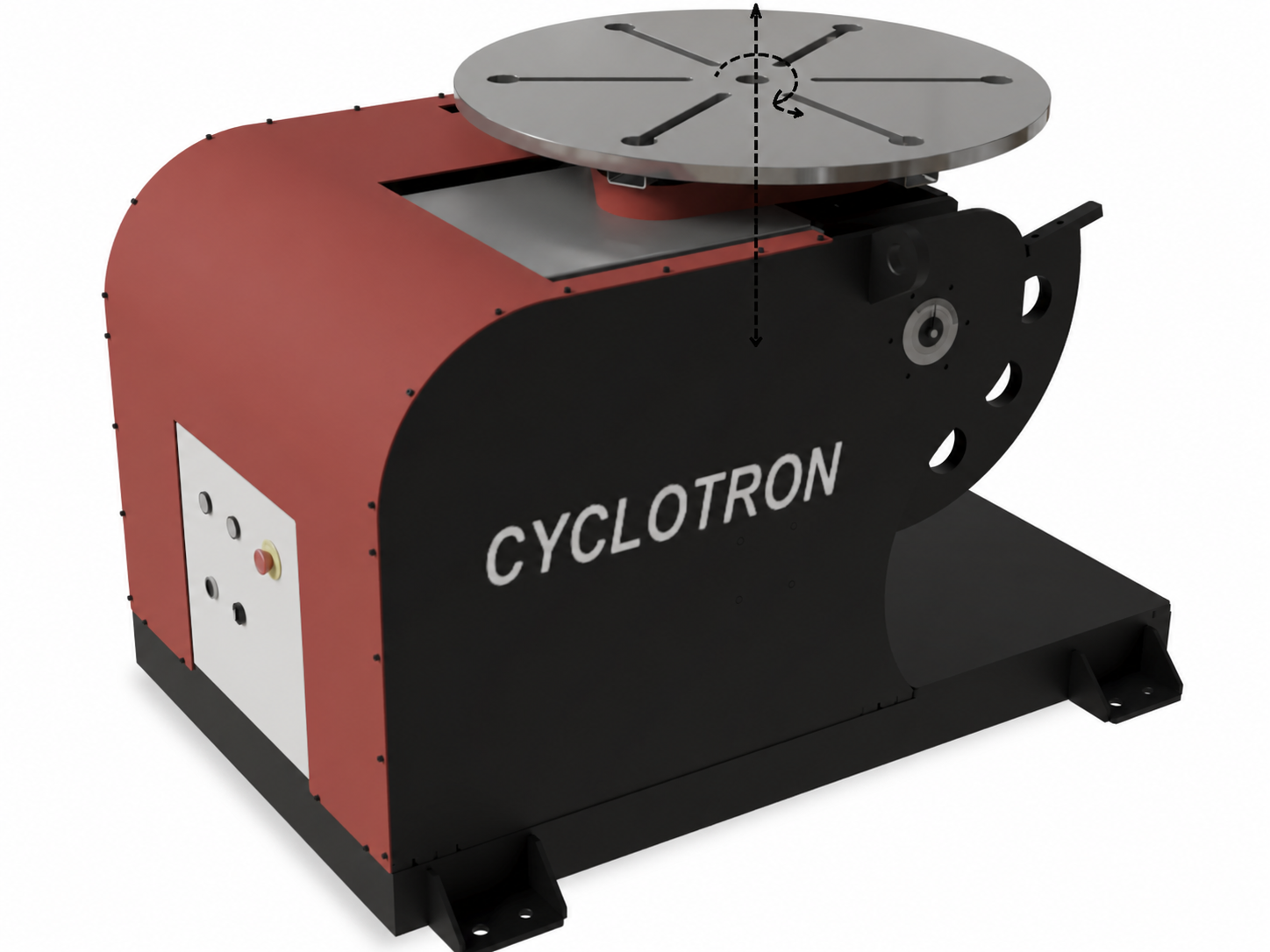

The positioner features variable speed rotation control, enabling operators to precisely adjust the rotational speed to suit different welding processes, material thicknesses, and workpiece sizes.

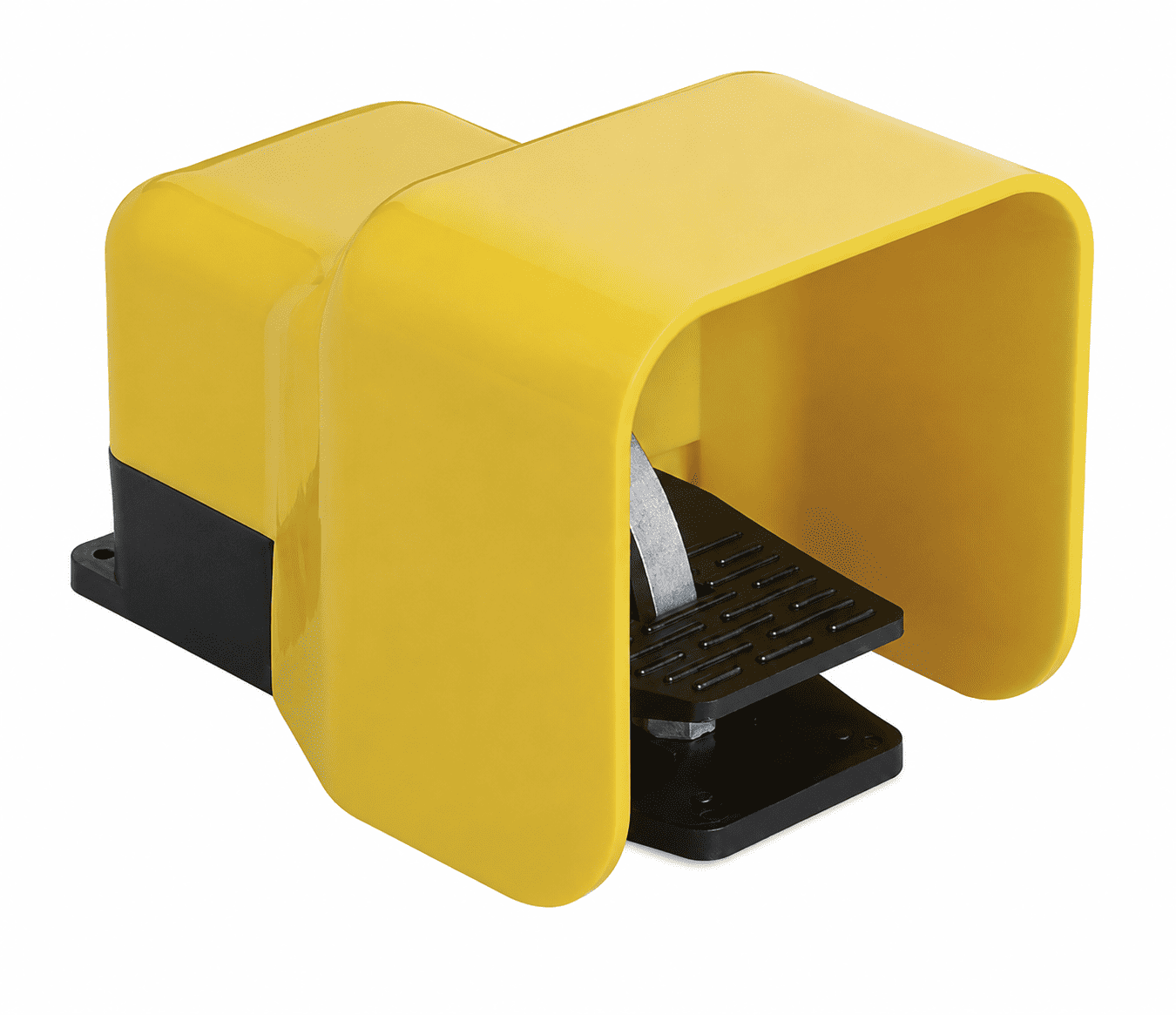

Foot Pedal & Remote Control Options

Optional foot pedal and remote control systems provide hands-free operation and convenient machine control, improving operator safety, productivity, and ease of use during welding operations.

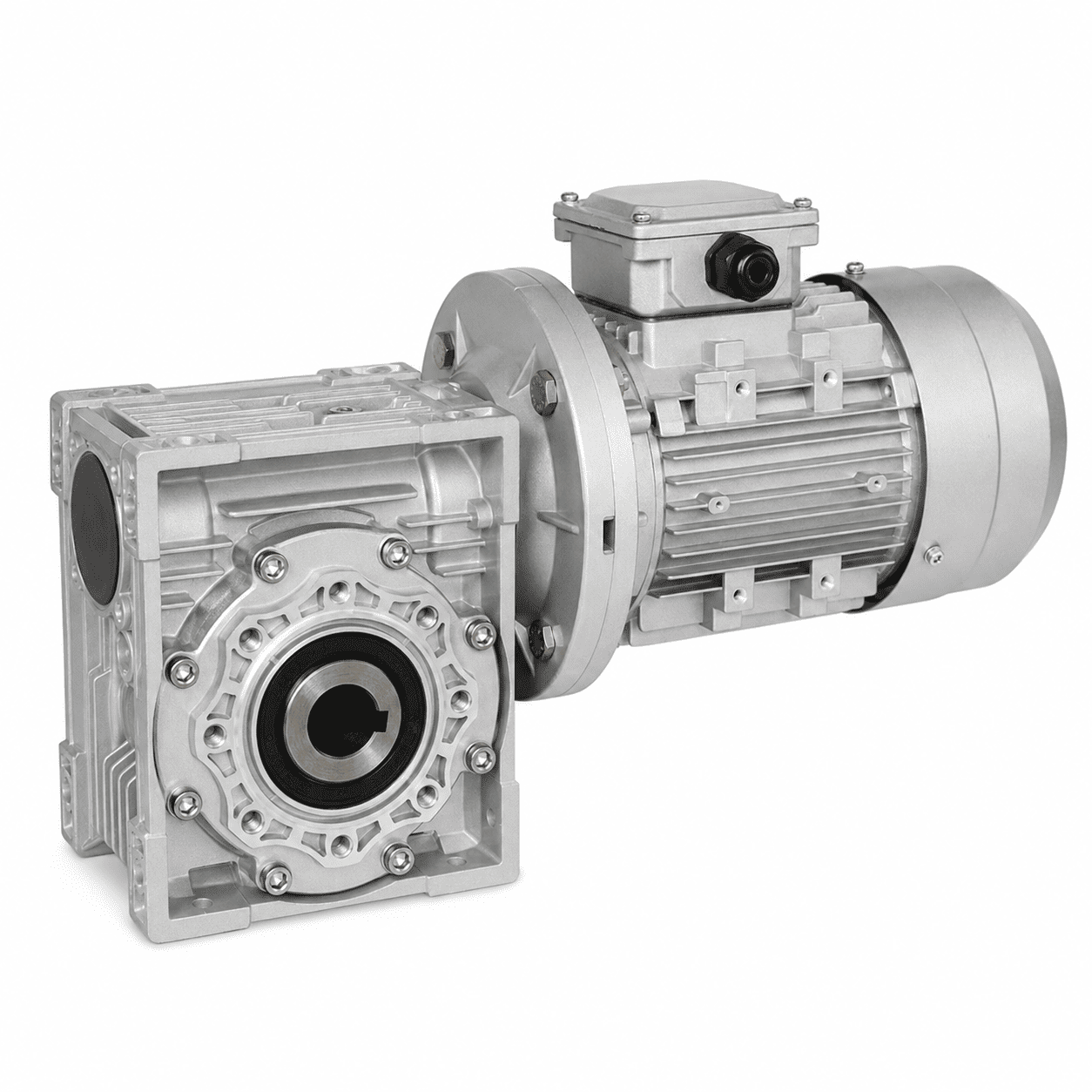

Branded gearbox and motors

Equipped with internationally recognized gearboxes and motors for reliable performance and long service life. Backed by a 1-year global warranty, allowing warranty claims and support anywhere in the world for complete peace of mind.

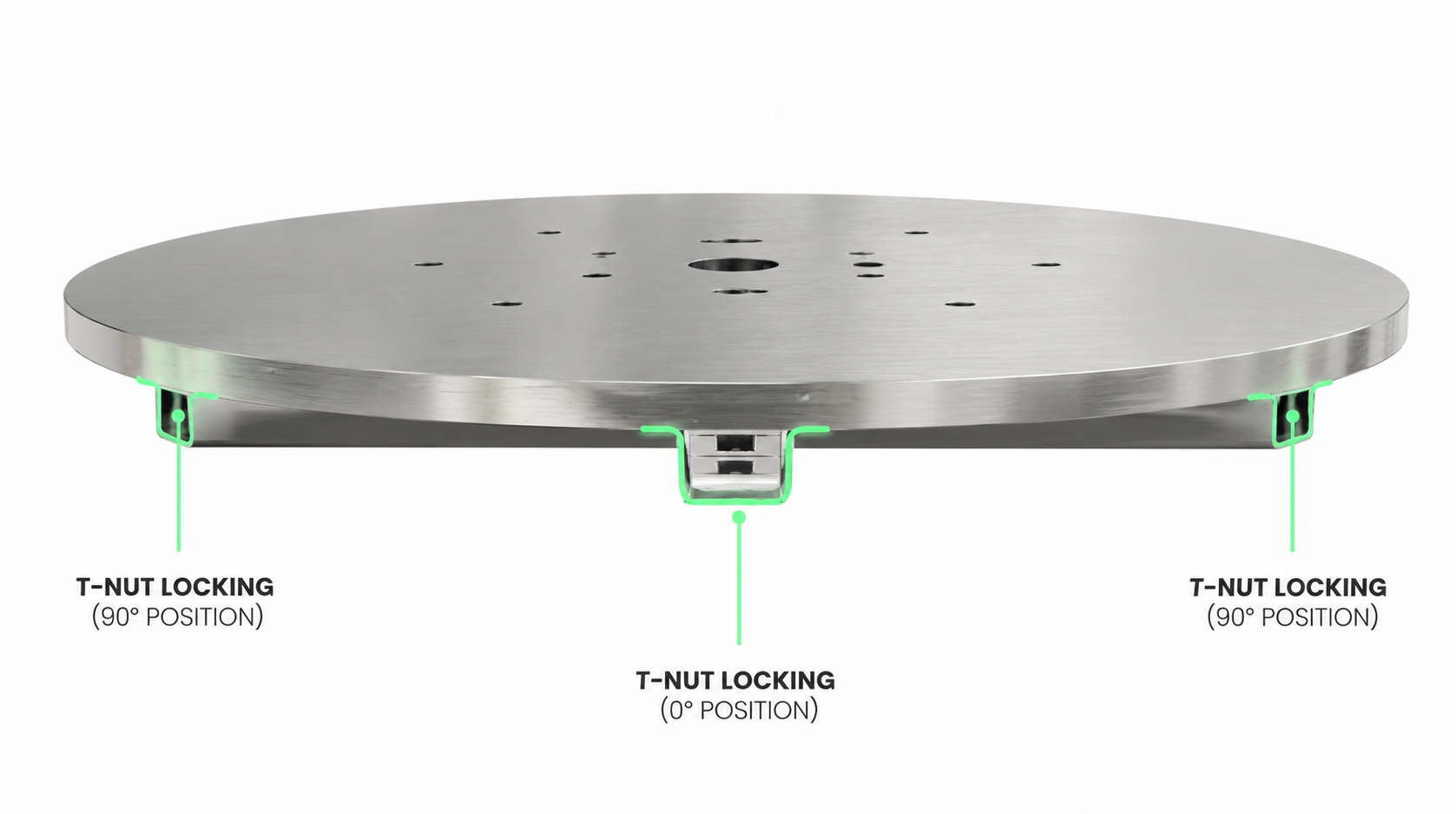

T nut locking

The robust T-nut locking system ensures secure and vibration-free workpiece positioning during welding and fabrication. It provides quick setup, strong clamping force, and reliable holding for improved accuracy and repeatability.

Safety first approach

Designed with operator safety as a top priority, the positioner incorporates multiple safety features including emergency stop systems, secure locking mechanisms, and reliable control options.

1 Year Warranty

Every positioner is backed by a 1-year warranty against manufacturing defects, ensuring dependable performance and customer confidence. Our dedicated support team provides prompt assistance.

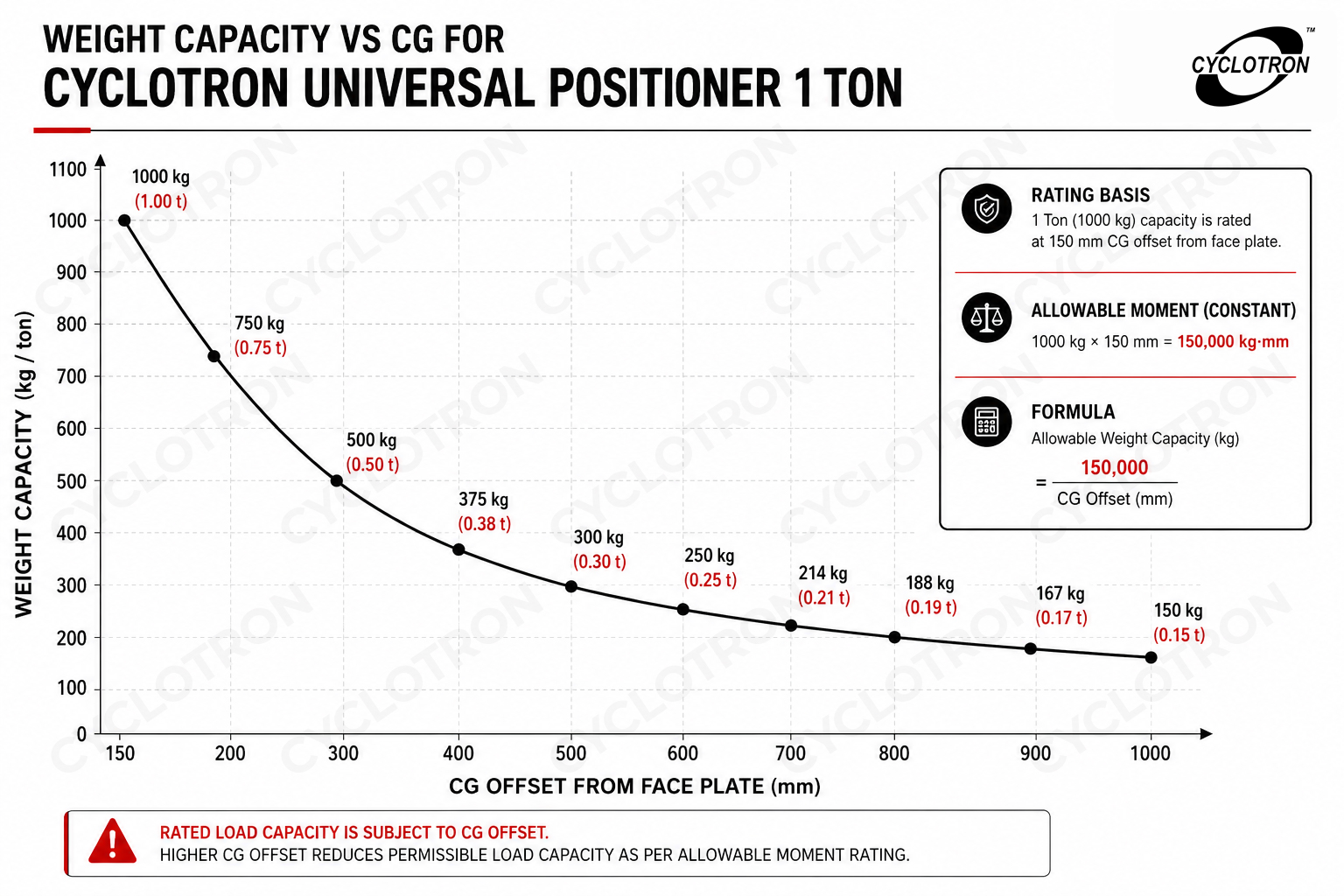

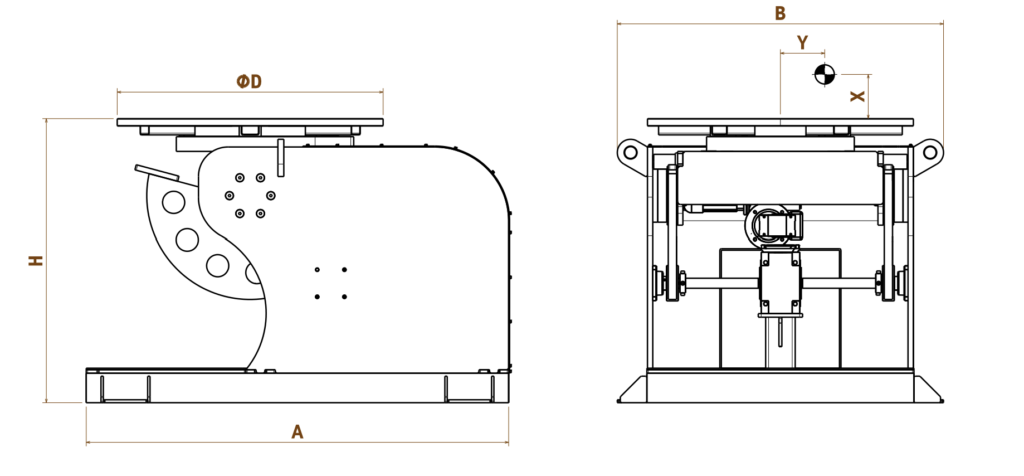

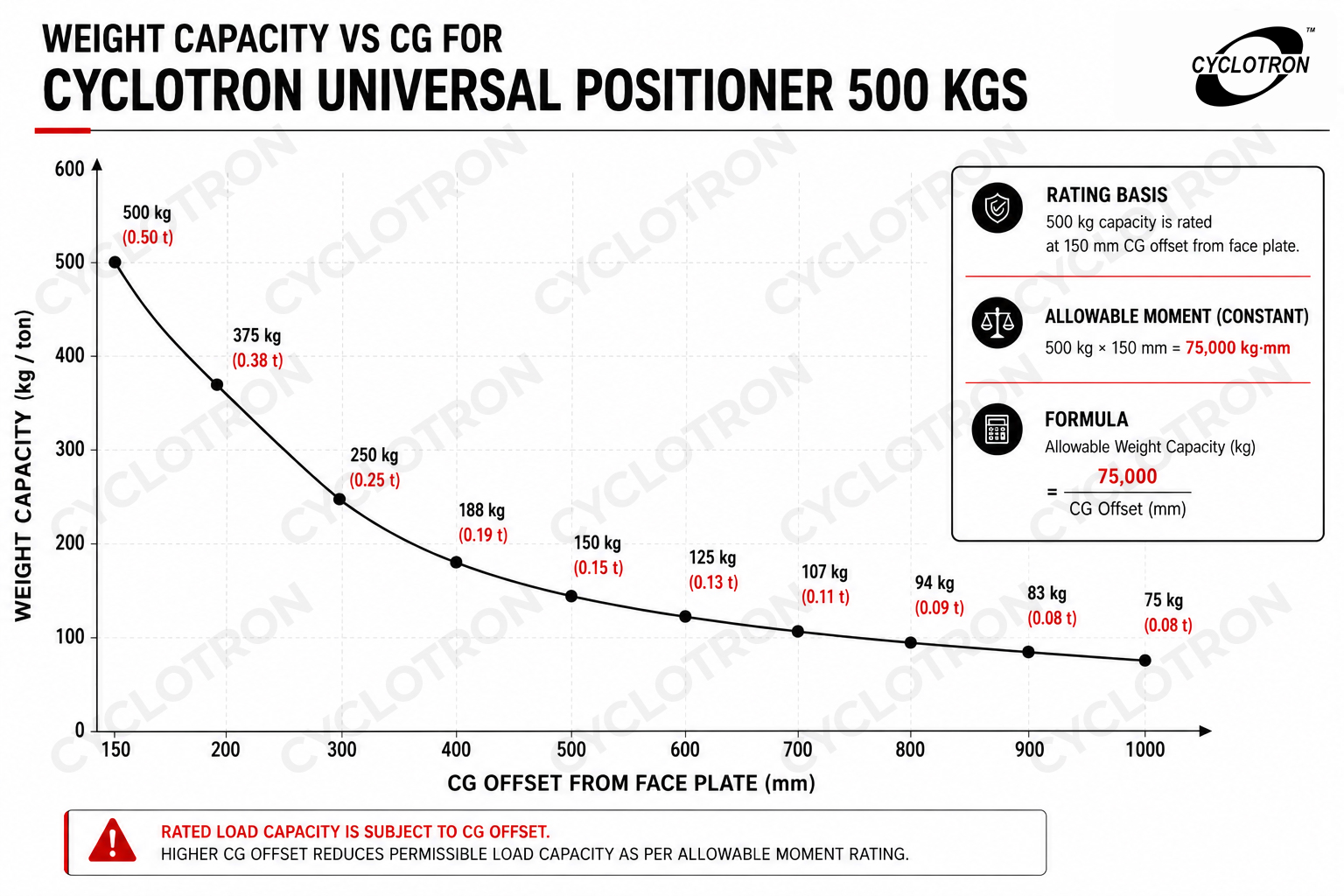

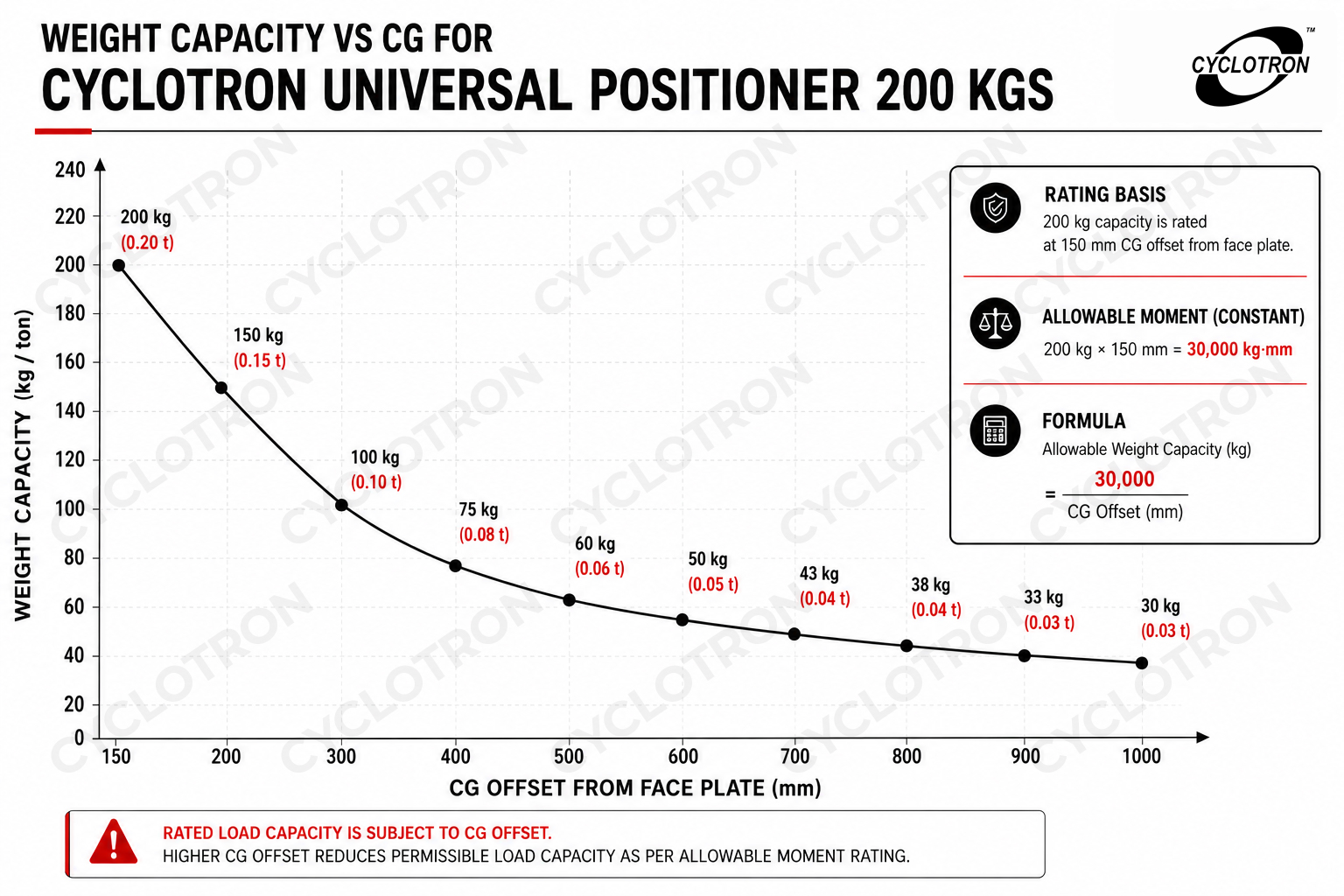

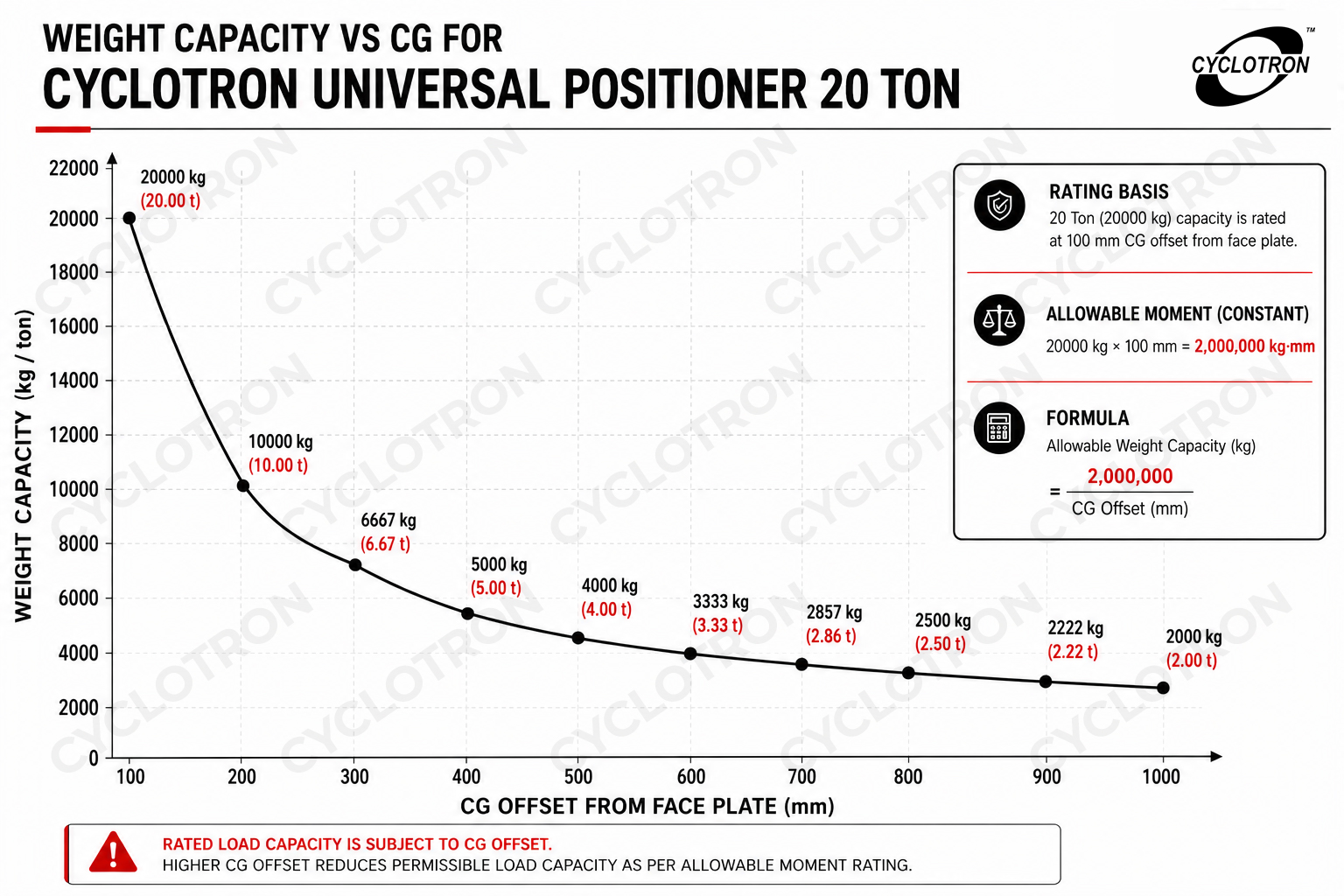

2 Axis Welding Positioner Drawings

CUP (Cyclotron Universal positioner)	Symbol	Unit	CUP-020	CUP-050	CUP-1	CUP-2	CUP-3	CUP-5	CUP-8	CUP-10	CUP-20
Loading Capacity	-	kg	200	500	1000	2000	3000	5000	8000	10000	20000
Rotation Speed	-	rpm	0.15 - 1.65	0.15 - 1.75	0.15 - 1.4	0.15 - 1	0.1 - 0.70	0.1 - 0.78	0,1 - 0,66	0,1 - 0,5	0,05 - 0,5
Max. Rotational Torque	-	Nm	500	750	1570	3050	4500	7500	12050	15050	35000
Tilting Angle	-	deg	100	100	135	115	115	115	110	110	120
Tilting Torque	-	Nm	650	1360	2720	5130	8500	15500	25520	31580	108800
Offset Distance	X-Y	mm	150-150	150-150	150-150	150-150	150-150	150-150	150-150	150-150	100-100
Max. Welding Current	Amp	Amp	700	700	700	700	700	1000	1000	1000	1000
Table Plate Diameter	ØD	mm	600	700	900	900	1000	1250	1500	1800	1800
Height	H	mm	750	800	960	1000	1100	1200	1400	1400	1850
Length	A	mm	1020	1050	1430	1600	1800	2000	2250	2750	3200
Width	B	mm	830	890	1200	1200	1400	1850	1900	2000	2500
Weight	-	kg	310	380	680	980	1020	1800	2800	3200	9500

*The above values can change without prior notice. The values are approximate.

Universal Positioner technical charts

CUP	Sym	Unit	CUP-020
Loading Capacity	-	kg	200
Rotation Speed	-	rpm	0.15 - 1.65
Max. Rotational Torque	-	Nm	500
Tilting Angle	-	deg	100
Tilting Torque	-	Nm	650
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	700
Table Plate Diameter	ØD	mm	600
Height	H	mm	750
Length	A	mm	1020
Width	B	mm	830
Weight	-	kg	310

*The above values can change without prior notice. The values are approximate.

CUP	Sym	Unit	CUP-050
Loading Capacity	-	kg	500
Rotation Speed	-	rpm	0.15 - 1.75
Max. Rotational Torque	-	Nm	750
Tilting Angle	-	deg	100
Tilting Torque	-	Nm	1360
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	700
Table Plate Diameter	ØD	mm	700
Height	H	mm	800
Length	A	mm	1050
Width	B	mm	890
Weight	-	kg	380

*The above values can change without prior notice. The values are approximate.

CUP	Sym	Unit	CUP-1
Loading Capacity	-	kg	1000
Rotation Speed	-	rpm	0.15 - 1.4
Max. Rotational Torque	-	Nm	1570
Tilting Angle	-	deg	135
Tilting Torque	-	Nm	2720
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	700
Table Plate Diameter	ØD	mm	900
Height	H	mm	960
Length	A	mm	1430
Width	B	mm	1200
Weight	-	kg	680

*The above values can change without prior notice. The values are approximate.

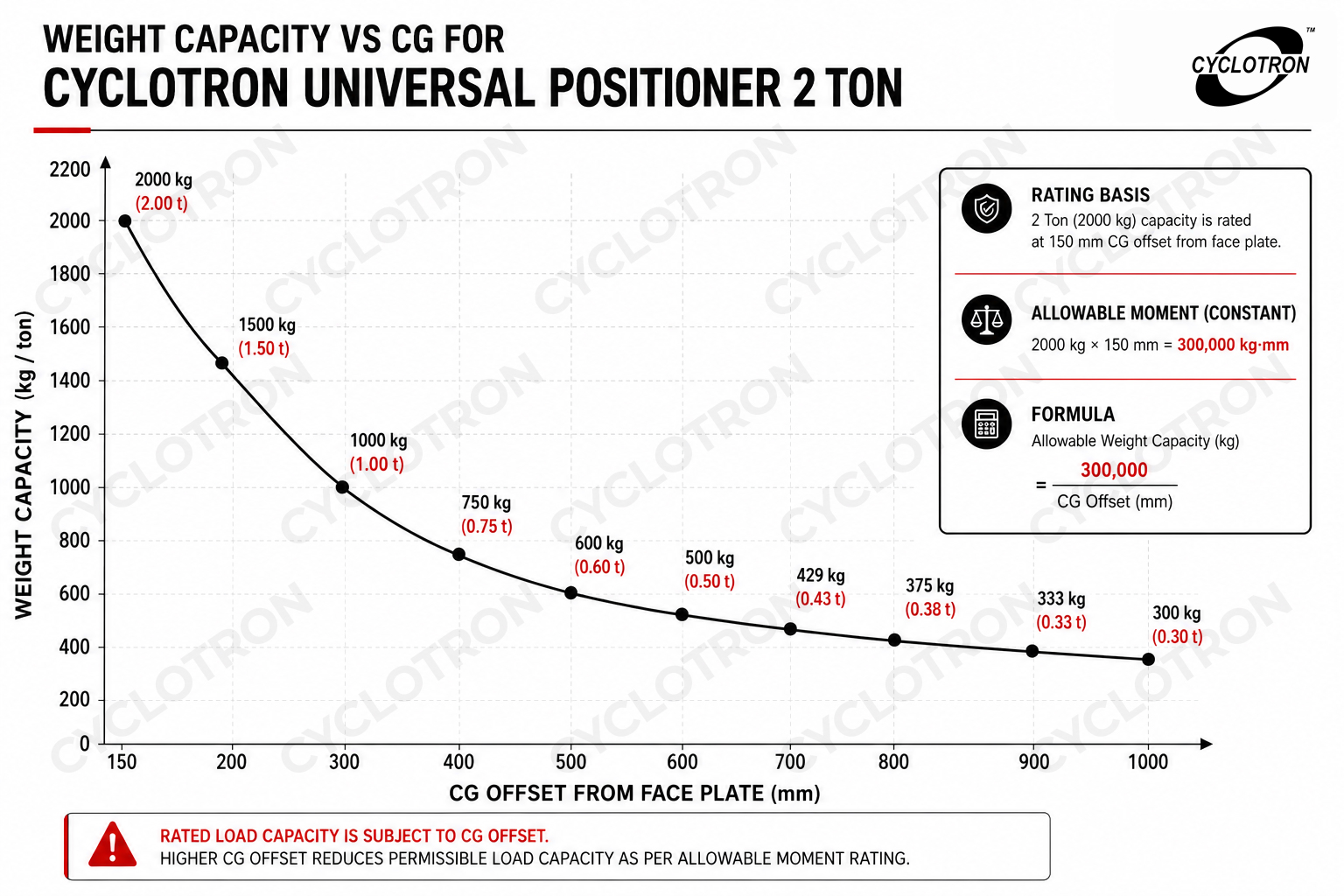

CUP	Sym	Unit	CUP-2
Loading Capacity	-	kg	2000
Rotation Speed	-	rpm	0.15 - 1
Max. Rotational Torque	-	Nm	3050
Tilting Angle	-	deg	115
Tilting Torque	-	Nm	5130
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	700
Table Plate Diameter	ØD	mm	900
Height	H	mm	1000
Length	A	mm	1600
Width	B	mm	1200
Weight	-	kg	980

*The above values can change without prior notice. The values are approximate.

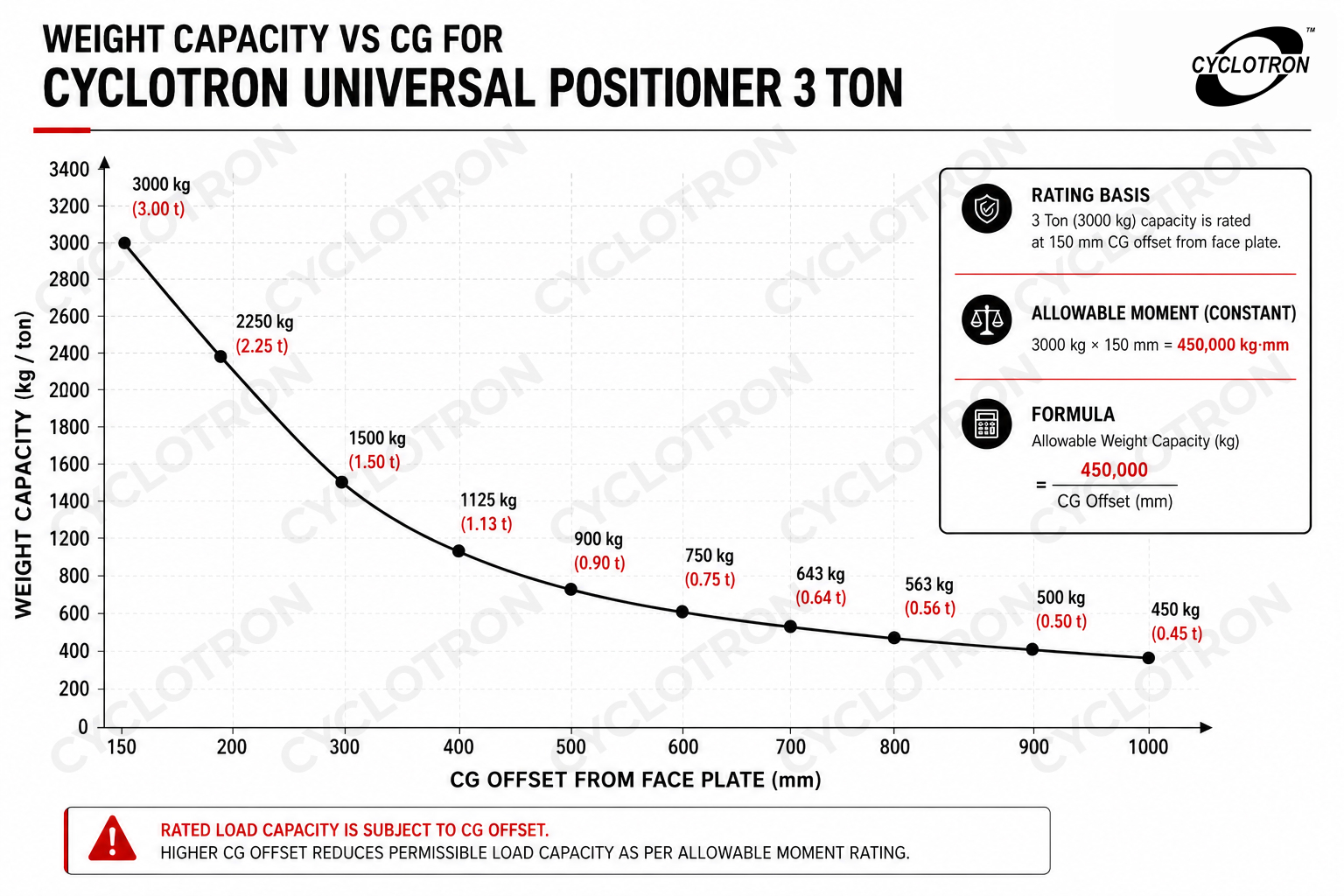

CUP	Sym	Unit	CUP-3
Loading Capacity	-	kg	3000
Rotation Speed	-	rpm	0.1 - 0.70
Max. Rotational Torque	-	Nm	4500
Tilting Angle	-	deg	115
Tilting Torque	-	Nm	8500
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	700
Table Plate Diameter	ØD	mm	1000
Height	H	mm	1100
Length	A	mm	1800
Width	B	mm	1400
Weight	-	kg	1020

*The above values can change without prior notice. The values are approximate.

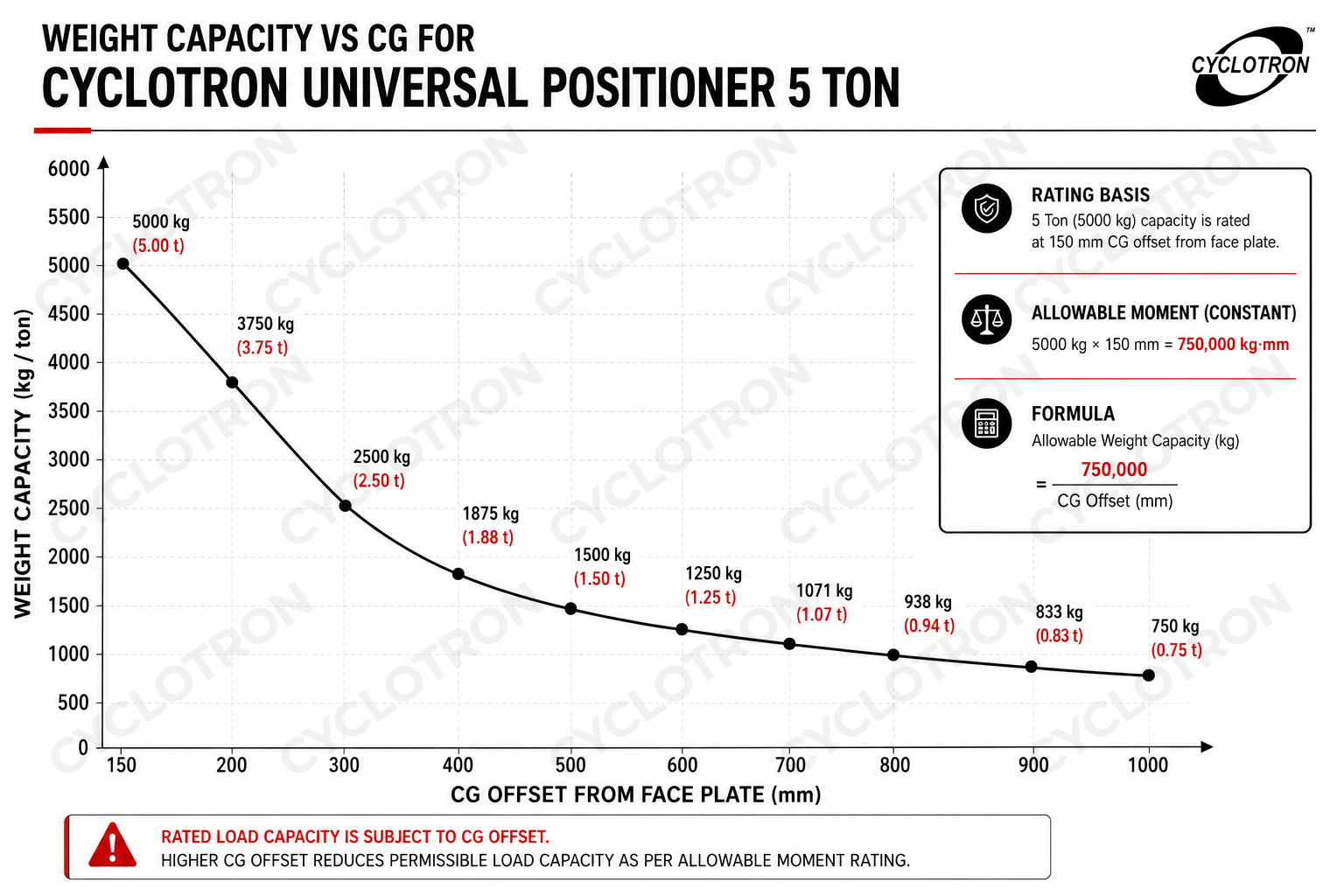

CUP	Sym	Unit	CUP-5
Loading Capacity	-	kg	5000
Rotation Speed	-	rpm	0.1 - 0.78
Max. Rotational Torque	-	Nm	7500
Tilting Angle	-	deg	115
Tilting Torque	-	Nm	15500
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	1000
Table Plate Diameter	ØD	mm	1250
Height	H	mm	1200
Length	A	mm	2000
Width	B	mm	1850
Weight	-	kg	1800

*The above values can change without prior notice. The values are approximate.

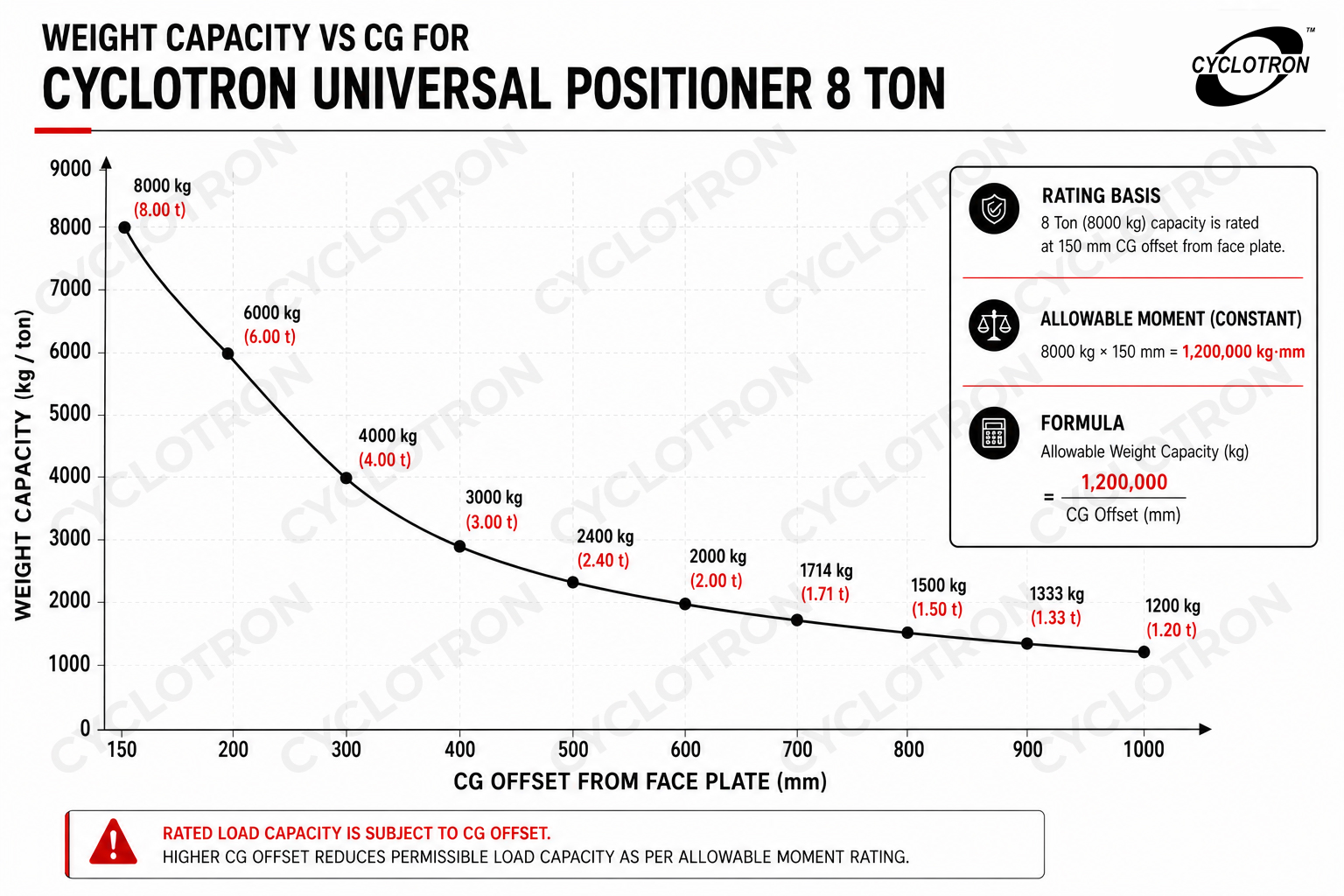

CUP	Sym	Unit	CUP-8
Loading Capacity	-	kg	8000
Rotation Speed	-	rpm	0.1 - 0.66
Max. Rotational Torque	-	Nm	12050
Tilting Angle	-	deg	110
Tilting Torque	-	Nm	25520
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	1000
Table Plate Diameter	ØD	mm	1500
Height	H	mm	1400
Length	A	mm	2250
Width	B	mm	1900
Weight	-	kg	2800

*The above values can change without prior notice. The values are approximate.

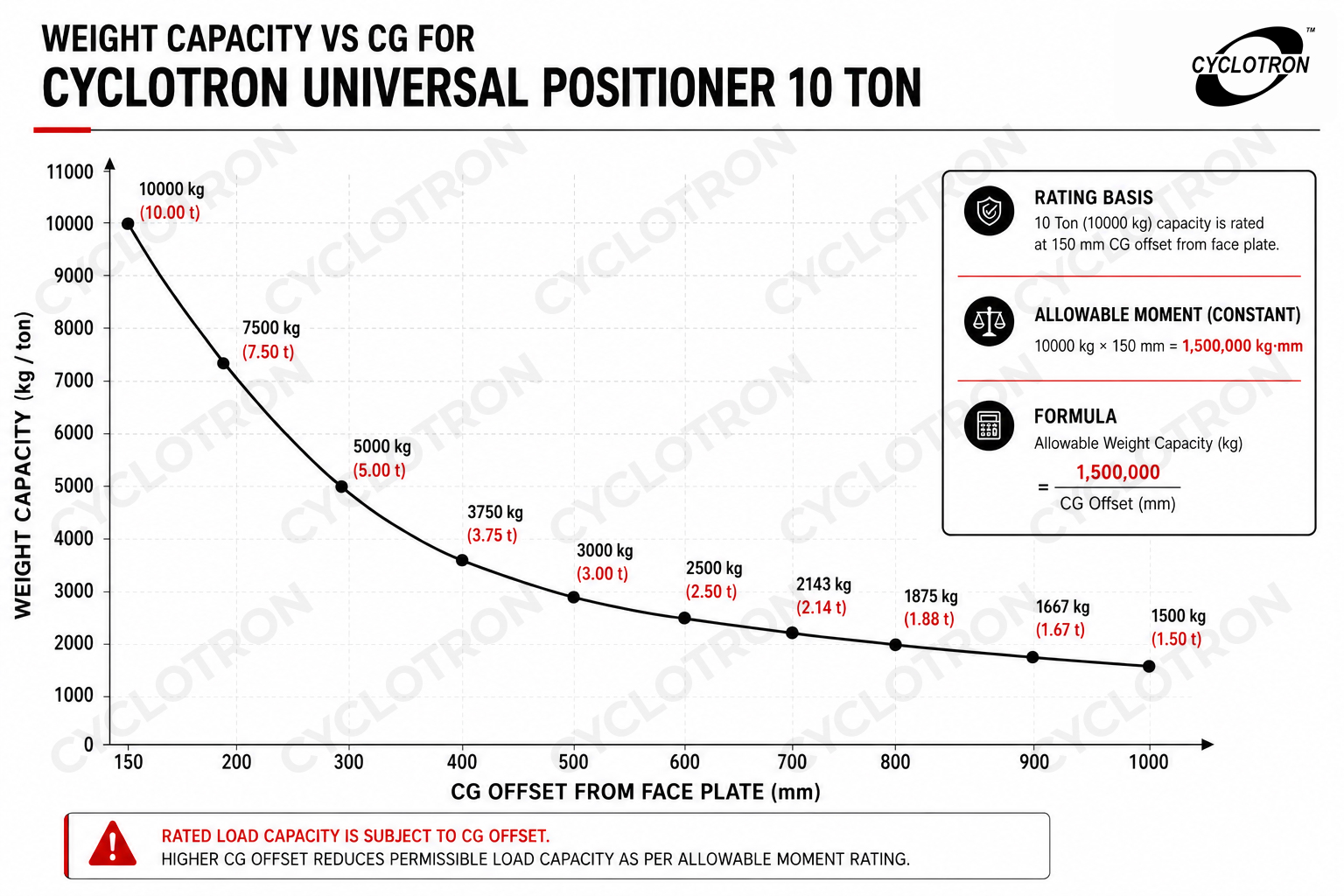

CUP	Sym	Unit	CUP-10
Loading Capacity	-	kg	10000
Rotation Speed	-	rpm	0.1 - 0.5
Max. Rotational Torque	-	Nm	15050
Tilting Angle	-	deg	110
Tilting Torque	-	Nm	31580
Offset Distance	X-Y	mm	150-150
Max. Welding Current	A	Amp	1000
Table Plate Diameter	ØD	mm	1800
Height	H	mm	1400
Length	A	mm	2750
Width	B	mm	2000
Weight	-	kg	3200

*The above values can change without prior notice. The values are approximate.

CUP	Sym	Unit	CUP-20
Loading Capacity	-	kg	20000
Rotation Speed	-	rpm	0.05 - 0.5
Max. Rotational Torque	-	Nm	3500
Tilting Angle	-	deg	120
Tilting Torque	-	Nm	108800
Offset Distance	X-Y	mm	100-100
Max. Welding Current	A	Amp	1000
Table Plate Diameter	ØD	mm	1800
Height	H	mm	1850
Length	A	mm	3200
Width	B	mm	2500
Weight	-	kg	9500

*The above values can change without prior notice. The values are approximate.

How to choose the right 2 axis welding positioner?

Workpiece Size and Weight:
Ensure the positioner has the load-bearing capacity to support your heaviest components. Overloading can cause instability, motor failure, or inaccurate positioning.
Precision and Automation Needs:
For high-precision applications or robotic welding integration, opt for electric or servo-controlled positioners. These models allow for programmable movements, variable speeds, and precise angular control.

Speed and Control Options:
Different welding jobs require different rotation or tilt speeds. Advanced models offer variable-speed settings and control interfaces for fine-tuned operations.
Cost and ROI:
While higher-capacity or robotic models come with a higher price tag, they provide long-term savings through faster production, reduced rework, and less material wastage. Balance your budget with your current and future production demands.

Maintenance and Care Tips

To ensure the longevity and smooth functioning of your welding positioner, follow these best practices:

Regular Inspection: Check for wear and tear in gears, bearings, and clamping mechanisms.
Lubrication: Keep all moving parts properly lubricated to reduce friction and prevent premature failure.
Cleaning: Regularly clean the positioner, especially in key mechanical and electronic components, to remove dust, spatter, and welding debris.

Training: Operators should be trained on the safe and efficient use of the equipment. Machine-specific training programs are recommended to reduce the risk of errors or damage.

Invest in Precision with Cyclotron Automations

A two-axis welding positioner is a game-changer for welding operations that demand precision, safety, and efficiency. Whether you’re working on tubular structures, frames, or heavy industrial components, this equipment ensures better weld access, reduced fatigue, and high-quality results.

At Cyclotron Automation, we manufacture and supply a wide range of industrial-grade welding positioners tailored to your specific needs. Our machines are engineered for performance, reliability, and safety.

Book a consultation today and let our experts help you choose the ideal two-axis welding positioner for your workflow.

FAQs of 2 Axis welding positioners

1. Why Should I Choose Cyclotron’s 2-Axis Welding Positioner?

Cyclotron has been a leading supplier of welding tables and welding positions in India for over 7 years. We offer a wide range of welding positioners, including 2-axis, 3-axis, robotic, and fully customizable models, designed to meet your welding requirements.

Whether it’s for simple fabrication tasks or handling complex components in the defense and aerospace industries, our positioners deliver superior accuracy and safer work environments.

When you partner with us, you access reliable after-sales support, expert customization, and unmatched product quality, making our positioners a smart investment for long-term welding performance.

2. Is the 2-Axis Positioner Suitable for Tasks Beyond Welding?

Yes, the 2-axis positioner is versatile and can be used beyond welding tasks. It provides firm and adjustable positioning of workpieces for various operations such as:
Milling, machining, and part fabrication
Quality inspection at specific angles
Accurate assembly of heavy and complex components
Even surface coating and painting applications

3. Can One Person Operate the 2-Axis Welding Positioner Easily?

Absolutely. Our positioners feature user-friendly controls that allow a single welder to handle and position even heavy workpieces with minimal effort. They minimizes the need for manual intervention, enhance operational safety, and help speed up productivity on the shop floor.

4. Can the 2-Axis Positioner Be Customized to Fit My Specific Work Requirements?

Yes, at Cyclotron Automation, we offer fully customized 2-axis welding positioners based on your specific part size, load capacity, angle requirements, and production goals.
When you book a call with us, our team connects with you for a detailed consultation, provides a demo, understands your welding needs, and configures the positioner to suit your welding goals.

5. What Is the Load Capacity of Cyclotron's 2 Axis Welding Positioner?

Our sturdy 2-axis welding positioners can handle loads ranging from 100 kg to 20 tons, making them ideal for various industrial welding applications.

6. Do Your 2-Axis Welding Positioners Come With a Warranty?

We offer a 1-year full warranty against manufacturing defects. Spare parts are readily available at our facility, ensuring you get quick replacements whenever needed to minimize downtime.

7. Is Special Training Required to Operate the 2-Axis Welding Positioner?

Not necessarily. Our positioners come with simple, intuitive controls and a clear instruction manual. With minimal training, your welders can quickly learn how to operate the machine and manipulate workpieces with confidence.

8. Can Your Positioners Be Integrated With Robotic Welding Systems?

Yes, Cyclotron’s 2-axis welding positioners are compatible with robotic welding systems. Book a call with us to discuss your setup and integration needs.

9. What Safety Features Are Included in Your 2-Axis Welding Positioners?

At Cyclotron Automation, we prioritize operator safety and welding precision. Our 2-axis welding positioners are equipped with the necessary built-in safety features, including:
Emergency stop button
Remote controls for hands-free operation
Overload protection system
Anti-slip rotation and tilt mechanisms
Safety limit switches.

10. Do You Offer Service and Maintenance Support for Your Welding Positioners?

Yes, we provide comprehensive support and maintenance to maximize the lifespan and performance of your positioner. Our offerings include:
Scheduled routine maintenance sessions.
Troubleshooting assistance via email, phone, or live chat.
Program updates, repairs, and easy access to replacement parts on request.
Expert tips on daily care and long-term maintenance best practices.

11. Can You Help Me Select the Right 2-Axis Welding Positioner for My Application? How Can I Get in Touch With Your Team?

Absolutely. Just schedule a consultation with us, and our team will contact you promptly. We’ll take the time to understand your welding needs, project type, and budget before recommending the most suitable 2-axis welding positioner. Write to us at Mktg@cyclotronautomation.com, and our team will get back to you shortly.

Rotary Welding Positioners
