Headstock Tailstock welding positioners- 1 Axis
Rotate Long Parts with Precision

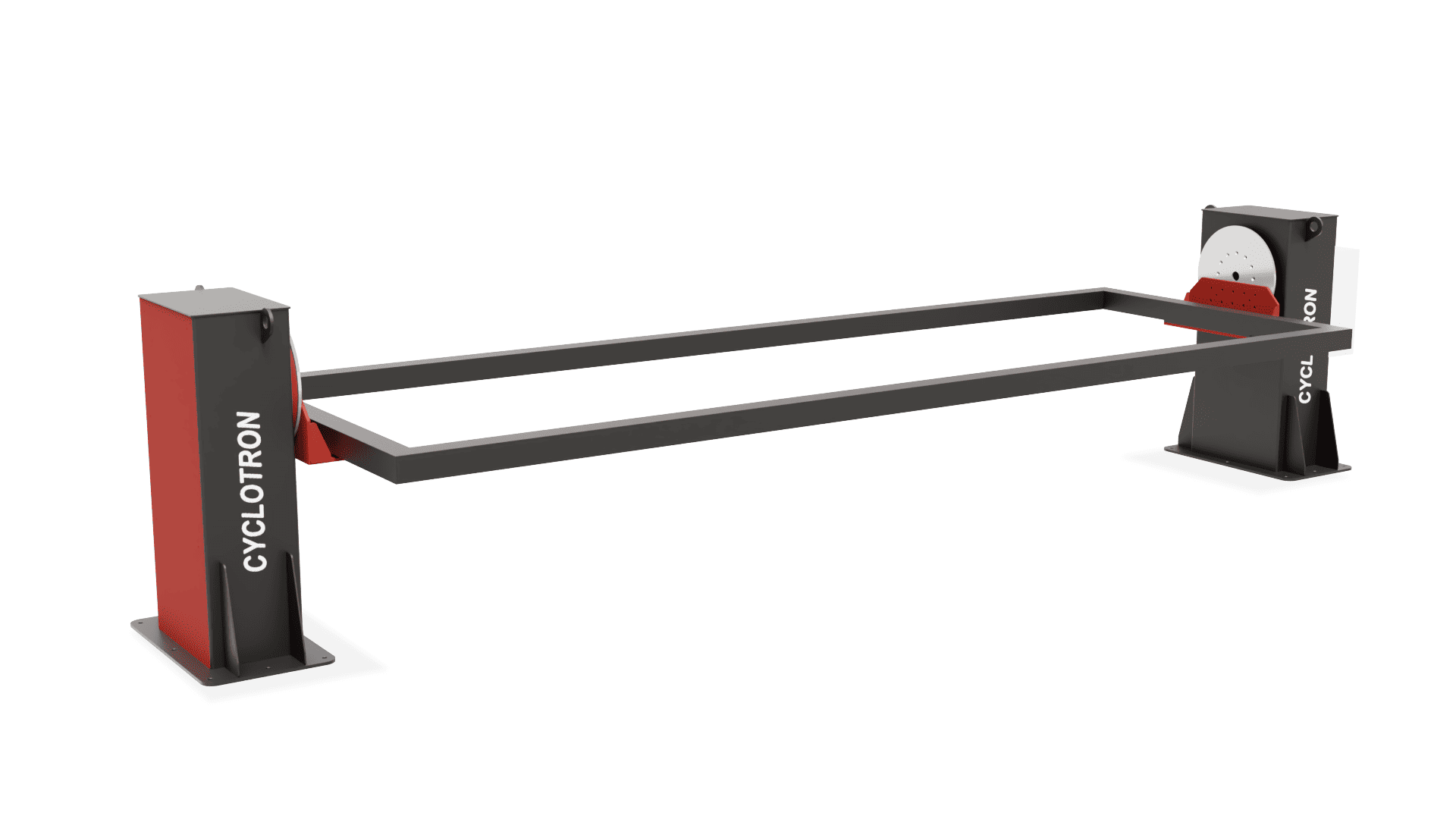

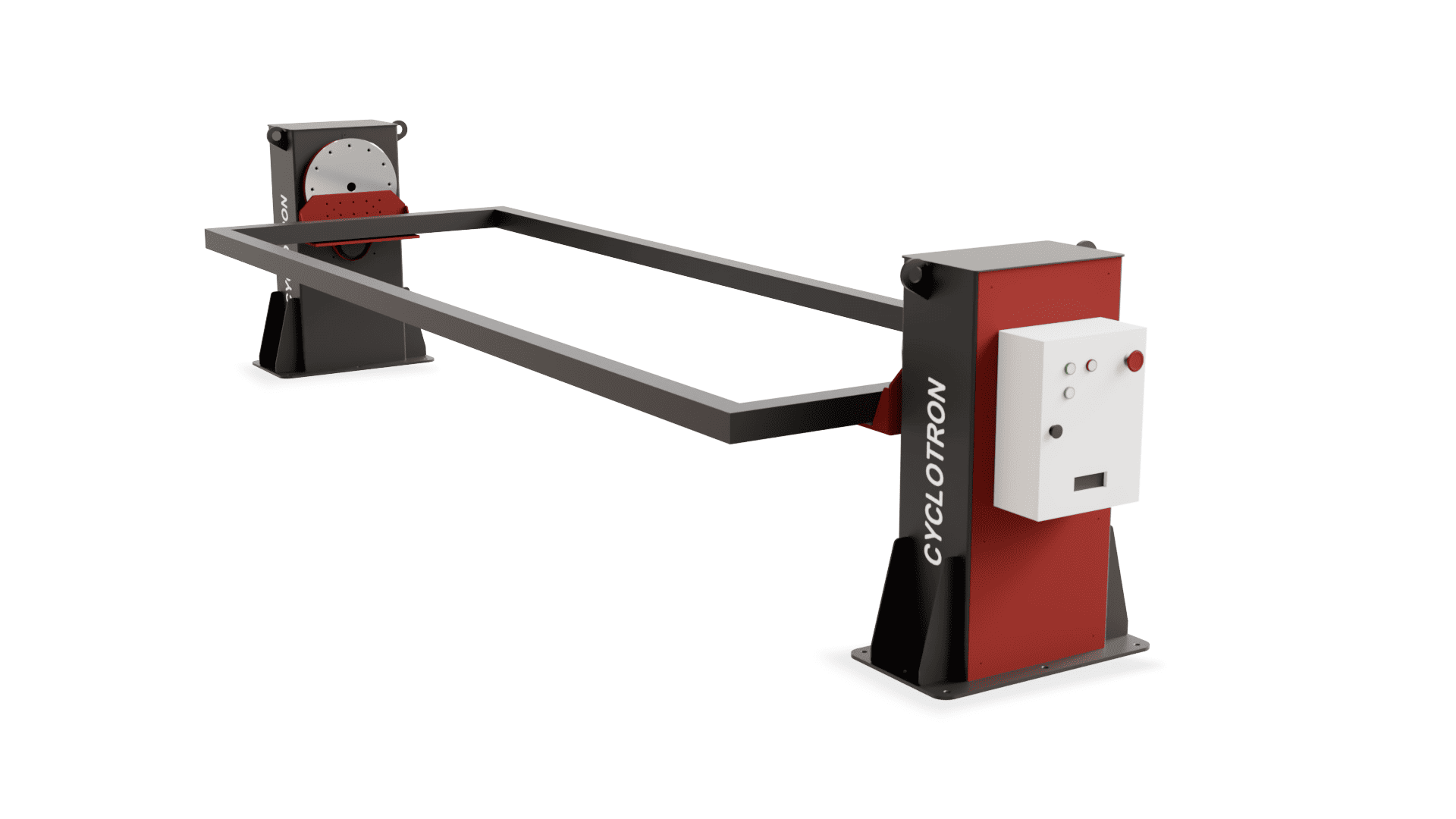

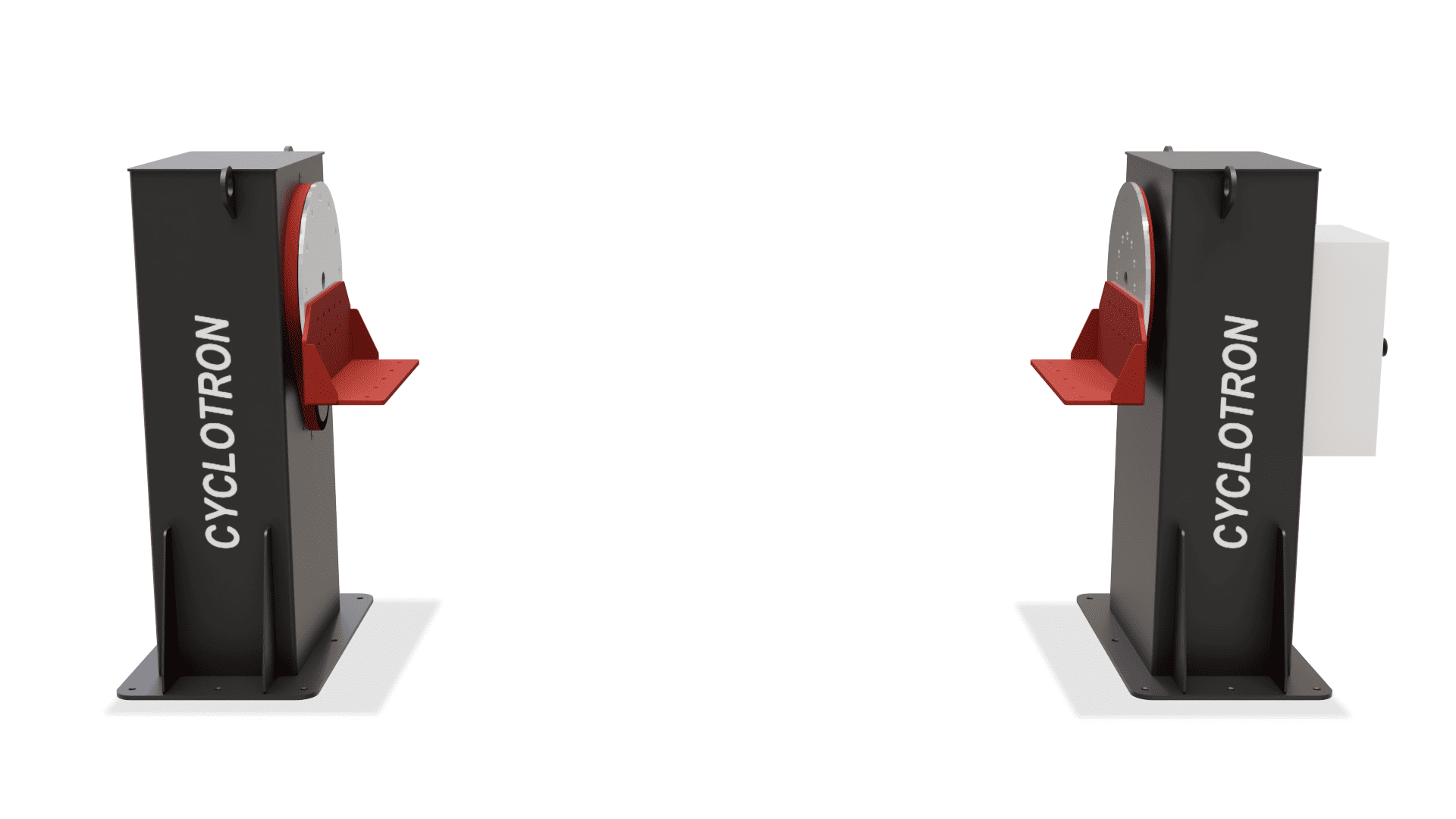

Headstock tailstock welding positioner- 1 Axis
Heavy-duty Cyclotron Headstock tailstock welding positioners (1 Axis) from 500 kgs to 5 tons load capacity. Designed for Chasis, dumpers, pipes, booms, structural frames, pressure vessels, wind components, and oversized fabrications requiring synchronized 360° rotation.
- Up to 5 Tons Load Capacity
- Smooth Variable Speed Rotation
- Precision Rotational Control
- Remote Control Options
- Designed for Continuous Industrial Operation
Introduction
Handling long and heavy fabrications during welding is challenging. Components such as pipes, pressure vessels, structural beams, crane booms, and heavy equipment frames need stable support with precise positioning and controlled movement throughout the welding process.
Cyclotron’s Headstock Tailstock Welding Positioner (1 Axis) is designed to provide reliable dual-end support and greater rotational control for long workpieces. By securing the fabrication between a powered headstock and tailstock, the system allows operators and robotic welding cells to maintain the ideal welding position, improving weld quality while reducing handling time.

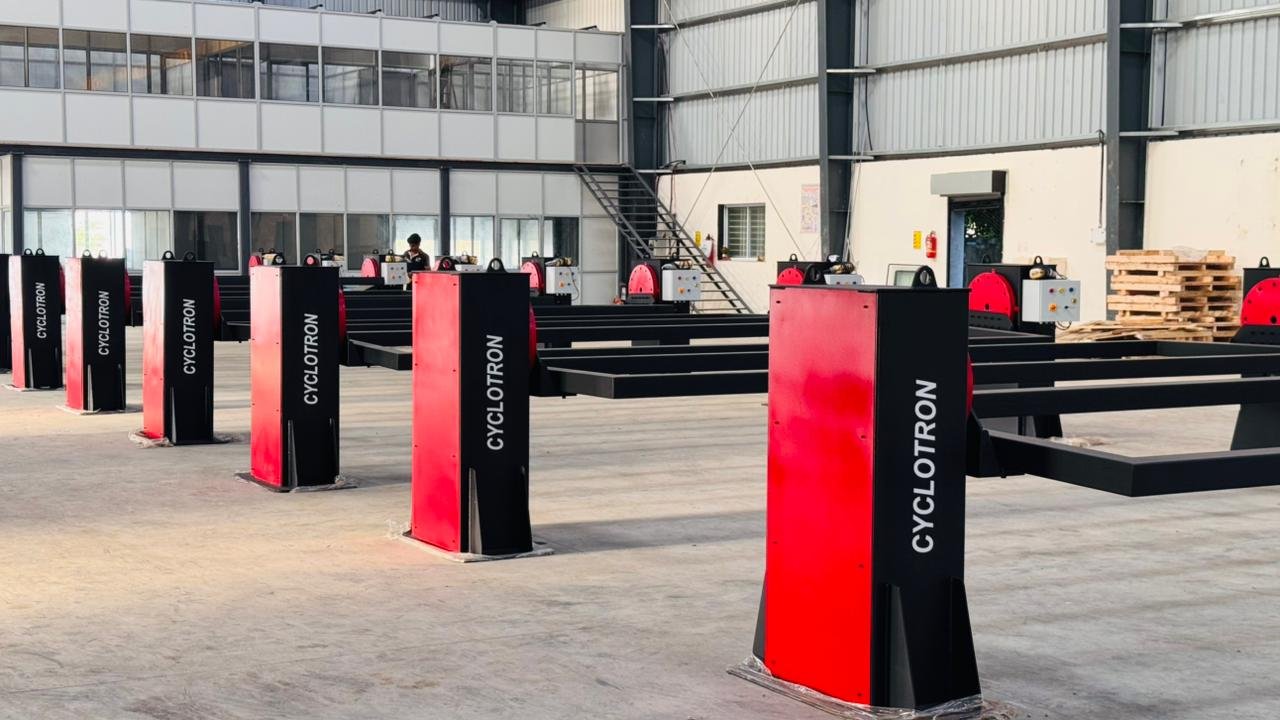

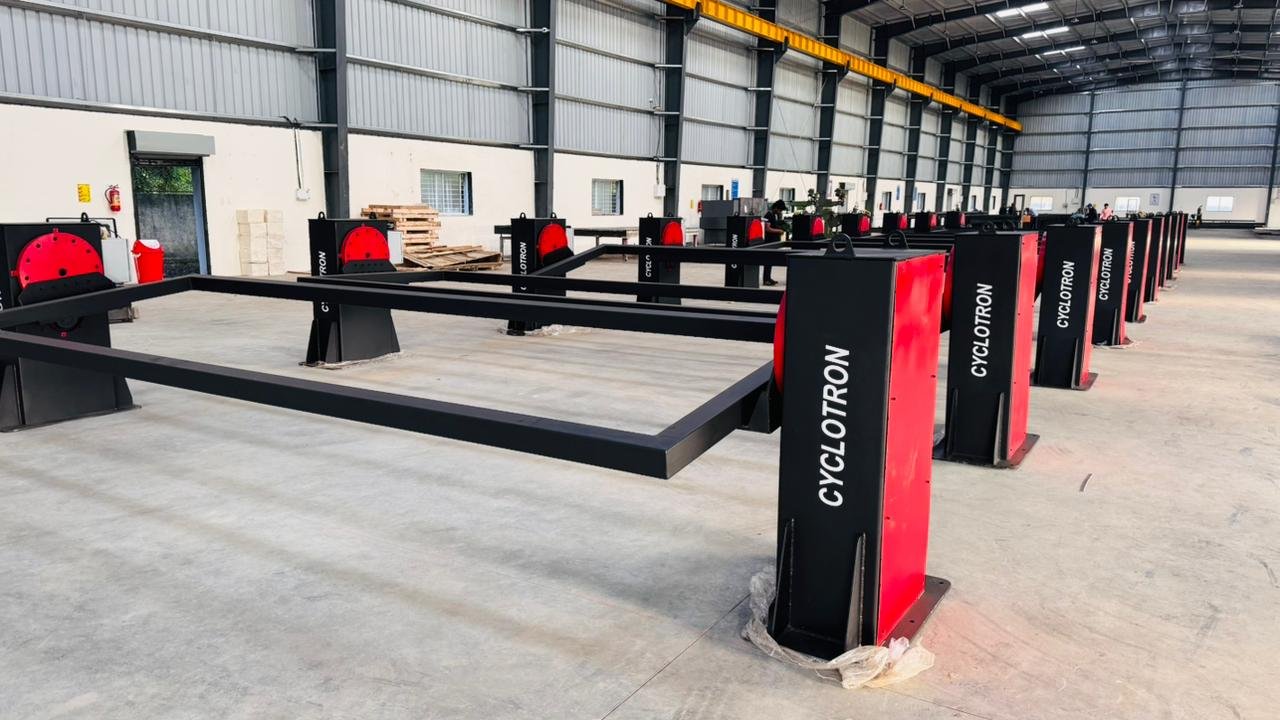

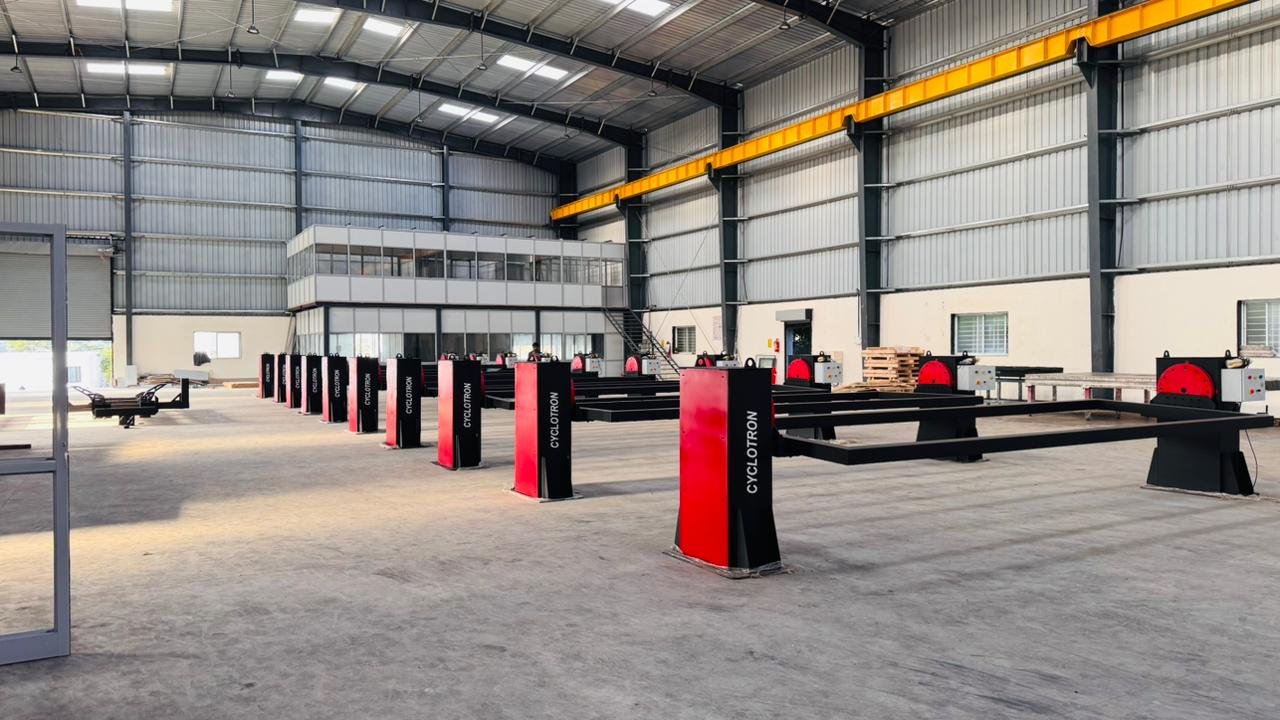

Our heavy-duty welding positioners are used across fabrication shops, pressure vessel manufacturing plants, structural steel facilities, and automated welding lines where productivity and precision are critical.
Key features
Load Capacities from 500 kg to 5 Tons
Available in multiple capacity configurations to suit different fabrication and production requirements.
Handles Workpiece Lengths up to 10 Meters
Designed for long structural fabrications that require support and alignment throughout the welding process.
Variable Speed Rotation Control
The positioner enables smooth and adjustable rotation based on welding procedures and workpiece requirements.
Precision Pendant Operation
User-friendly controls allow accurate positioning and speed adjustments during operation.
Branded gearbox and motors
Equipped with internationally recognized gearboxes and motors for reliable performance and long service life. Backed by a 1-year global warranty, allowing warranty claims and support anywhere in the world for complete peace of mind.
Synchronized Headstock-Tailstock Drive
Ensures stable and coordinated movement while maintaining proper alignment across the entire workpiece length.
Safety first approach
Designed with operator safety as a top priority, the positioner incorporates multiple safety features including emergency stop systems, secure locking mechanisms, and reliable control options.
1 Year Warranty
Every positioner is backed by a 1-year warranty against manufacturing defects, ensuring dependable performance and customer confidence. Our dedicated support team provides prompt assistance.
Headstock tailstock positioner 1 axis
Headstock tailstock 1 axis positioner

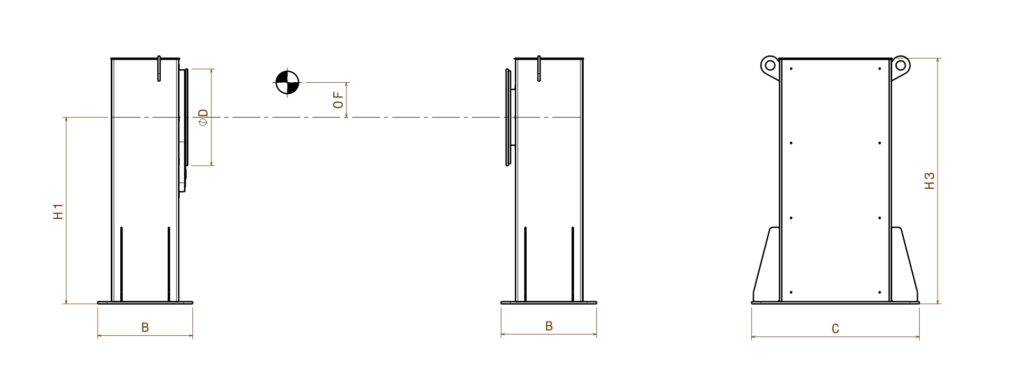

| CY-HTP-1AX | Sym | Unit | CY-HTP-1AX-1 | CY-HTP-1AX-2 | CY-HTP-1AX-3 | CY-HTP-1AX-5 |
|---|---|---|---|---|---|---|
| Capacity | kg | 1000 | 2000 | 3000 | 5000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | 0.2 - 1.15 | 0.2 - 1 | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 1500 | 3000 | 4500 | 5000 | |
| Rotation Axle Height | H1 | Nm | 1000 | 1000 | 1000 | 1250 |
| Offset Distance | OF | mm | 150 | 150 | 150 | 100 |
| Worktable Diameter | ØD | mm | 500 | 500 | 500 | 700 |
| Max. Workpiece Diameter | mm | 1950 | 1950 | 1950 | 2450 | |
| Height | H3 | mm | 1300 | 1220 | 1250 | 1500 |
| Length | B | mm | 500 | 600 | 650 | 700 |
| Width | C | mm | 900 | 950 | 1050 | 1200 |
| Motor Power of Table | kW | 0.37 | 0.55 | 0.75 | 1.1 | |
| Weight | kg | 600 | 780 | 950 | 1300 |
*The above values can change without prior notice. The values are approximate.
Headstock tailstock Positioner technical charts
| CY-HTP-1AX | Sym | Unit | CY-HTP-1AX-1 |
|---|---|---|---|
| Capacity | kg | 1000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 1500 | |
| Rotation Axle Height | H1 | Nm | 1000 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1300 |
| Length | B | mm | 500 |
| Width | C | mm | 900 |
| Motor Power of Table | kW | 0.37 | |
| Weight | kg | 600 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX | Sym | Unit | CY-HTP-1AX-2 |
|---|---|---|---|
| Capacity | kg | 2000 | |
| Rotation Speed | rpm | 0.2 - 1.15 | |
| Max. Rotational Torque | Nm | 3000 | |
| Rotation Axle Height | H1 | Nm | 1000 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1220 |
| Length | B | mm | 600 |
| Width | C | mm | 950 |
| Motor Power of Table | kW | 0.55 | |
| Weight | kg | 780 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX | Sym | Unit | CY-HTP-1AX-3 |
|---|---|---|---|
| Capacity | kg | 3000 | |
| Rotation Speed | rpm | 0.2 - 1 | |
| Max. Rotational Torque | Nm | 4500 | |
| Rotation Axle Height | H1 | Nm | 1000 |
| Offset Distance | OF | mm | 150 |
| Worktable Diameter | ØD | mm | 500 |
| Max. Workpiece Diameter | mm | 1950 | |
| Height | H3 | mm | 1250 |
| Length | B | mm | 650 |
| Width | C | mm | 1050 |
| Motor Power of Table | kW | 0.75 | |
| Weight | kg | 950 |
*The above values can change without prior notice. The values are approximate.
| CY-HTP-1AX | Sym | Unit | CY-HTP-1AX-5 |
|---|---|---|---|
| Capacity | kg | 5000 | |
| Rotation Speed | rpm | 0.2 - 1.2 | |
| Max. Rotational Torque | Nm | 5000 | |
| Rotation Axle Height | H1 | Nm | 1250 |
| Offset Distance | OF | mm | 100 |
| Worktable Diameter | ØD | mm | 700 |
| Max. Workpiece Diameter | mm | 2450 | |
| Height | H3 | mm | 1500 |
| Length | B | mm | 700 |
| Width | C | mm | 1200 |
| Motor Power of Table | kW | 1.1 | |
| Weight | kg | 1300 |
*The above values can change without prior notice. The values are approximate.
Benefits of Using a Headstock Tailstock Welding Positioner
Improved Weld Quality
Keeping the weld joint in a consistent welding position helps achieve better penetration, improved bead appearance, and greater welding accuracy.
Reduced Welding Time
Less time spent repositioning large fabrications means more time spent welding, helping improve overall production efficiency.
Increased Operator Safety
The positioner reduces the need for repeated lifting and handling of heavy workpieces using cranes and manual equipment. Thus, increasing operator safety.
Better Access to Complex Weld Joints
It improves the ability to rotate the workpiece and lets the operators to reach difficult weld locations more comfortably.
Consistent Rotation for Automated Welding
Provides smooth, repeatable movement required for robotic welding and mechanized welding systems.
Lower Rework and Manufacturing Costs
Improved positioning accuracy helps reduce weld defects, repairs, and production delays.
Key features of headstock tailstock welding positioners
- 1. Dual-End Sturdy Support This positioner offers rigid support at both ends of the workpiece, minimizing deflection, sagging, and vibration during welding. By stabilizing the component throughout the weld cycle, the system ensures consistent weld penetration and high-quality seam integrity, particularly on long or asymmetrical structures.
- Optional Powered Tailstock For more demanding applications, the tailstock can be configured as a powered unit, capable of synchronized rotation with the headstock. This enhances the balance and alignment of especially heavy or off-center workpieces, leading to smoother motion control and better positioning accuracy.
- High Load-Bearing Capacity Built to handle extreme workloads, this robotic positioner supports payloads ranging from a few hundred kilograms to several tons, depending on the model. This makes it ideal for heavy fabrication industries where large-scale components are the norm, such as oil and gas, shipbuilding, construction equipment, and aerospace.
- Industrial-Grade Construction The system is constructed using high-strength, wear-resistant steel alloys and components, designed for continuous-duty operation in harsh industrial environments. The rugged frame and precision-machined bearings ensure long service life, minimal maintenance, and reliability under demanding usage conditions.
- Programmable and Robotic Integration Compatible with robotic welding arms, the headstock-tailstock positioner can be fully automated via CNC controllers or robot programming interfaces. It allows for accurate, repeatable positioning for multi-pass welding, complex joint configurations, and batch production tasks, boosting productivity and reducing human error.
- Advanced Safety Systems To protect both operators and equipment, the robotic welding positioner is equipped with a range of integrated safety features, including: Limit switches to prevent over-rotation Overload detection systems for torque and weight protection Emergency stop mechanisms for rapid response Remote control operation to maintain safe working distances
Advantages of headstock tailstock welding positioners
- Superior Stability: During Welding These positioners offer axial support at both ends of the workpiece, dramatically increasing structural stability during rotation. This dual-end support is crucial when handling long or heavy components, as it prevents deflection, sagging, and vibration, factors that often compromise weld quality. The result is a more stable, controlled, and precise welding environment.
- Precision-Controlled Rotation: With a motorized headstock, operators can achieve highly accurate control over rotational speed and positioning. This capability is particularly beneficial for: Long seam welds Circular welds Multi-pass robotic welding
- Optimal Weld Accessibility: One of the biggest welding challenges is accessing difficult-to-reach weld zones. With this positioner, the workpiece can be rotated and tilted to achieve ideal torch angles and line-of-sight access for all weld areas. This promotes: Full weld fusion Deeper penetration Reduced spatter
- Enhanced Operator Safety: Manual handling of large workpieces introduces risks such as crush injuries, back strain, and exposure to hazardous welding arcs. By automating workpiece positioning, these positioners remove the need for manual lifting and frequent repositioning, significantly: Reducing operator fatigue Preventing OSHA-reportable incidents Creating a safer and more ergonomic work environment
- Greater Operational Flexibility: Welding businesses often handle a diverse range of projects, from structural frames to custom pipework. The modular design of headstock and tailstock positioners allows for: Quick fixture changes Adaptation to various workpiece lengths, diameters, and weights Smooth switching between production runs
- Long-Term Cost Efficiency: While the initial investment in a robotic positioner may be significant, the return on investment (ROI) is undeniable. Over time, you will see measurable cost reductions through: Lower labor dependency Faster cycle times Reduced weld defects and rework Higher throughput Consistent part quality These savings compound over projects, making this equipment an asset rather than an expense.
Conclusion
From a technical and operational standpoint, the headstock and tailstock robotic welding positioner is a game-changer in welding industry. It ensures superior weld quality, faster production cycles, and also creates a safer, more productive work environment. For any welding business looking to stay competitive in today’s automated manufacturing landscape, this equipment is a must-have.
If you are exploring reliable solutions, we recommend Cyclotron Automation. We specialize in delivering high-quality, customizable headstock-tailstock robotic welding positioners built to meet your specific industrial needs. Let’s revolutionize your welding process. Contact us today and take your welding business to the next level.
Get Yours with Cyclotron Automation
Upgrade your welding operations with Cyclotron Automation. Our Headstock tailstock welding positioners are a strategic investment designed to deliver high-quality welds while significantly reducing operational costs and downtime. With these advanced machines, large and heavy workpieces are easily handled, allowing you to achieve precise welds every time without manual repositioning. Their motor-assisted controls enable smooth rotation, tilting, and vertical movement, ensuring that each weld is executed at the optimal angle for unmatched consistency and strength.
At Cyclotron Automation, we understand that every welding requirement is unique. That’s why we are committed to helping you select the best headstock tailstock welding positioner that fits your budget and specific needs. Shop with us to experience cutting-edge technology that enhances productivity, improves safety, and drives long-term savings. Let’s discuss your welding requirements, and we’ll recommend the perfect solution to elevate your operations. Get yours with Cyclotron Automation today!
Frequently asked questions (FAQs)
1.What is a headstock tailstock welding positioner?
A headstock tailstock welding positioner is a positioning system that supports and rotates a workpiece between a powered headstock and a tailstock to improve welding access and control.
2.What is the difference between a welding rotator and a headstock tailstock positioner?
A welding rotator supports a cylindrical component on rollers, whereas a headstock tailstock positioner clamps and rotates the workpiece between two support points.
3. Can the positioner be integrated with robotic welding systems?
Yes. Our welding positioners can be synchronized with robotic welding systems and industrial automation controls.
4. What is the maximum workpiece length supported?
Standard systems can handle workpieces up to 10 meters or more, depending on the application.
5. Can the tailstock be motorized?
Yes. We offer motorized tailstock options when synchronized movement is required.
6. What load capacities are available?
Our standard welding positioners models range from 500 kg to 5 tons, with higher capacities available on request.
7. Is variable speed rotation available?
Absolutely. Variable speed control is available to match different welding processes.
8. Can Cyclotron customize the positioner?
Yes. We design a custom welding positioner based on payload, dimensions, and automation requirements.
9. What industries use headstock tailstock welding positioners?
They are commonly used in pipe fabrication, pressure vessel manufacturing, structural steel fabrication, automotive, aerospace, mining, and construction equipment industries.
10. Do you provide installation and commissioning support?
Yes. At Cyclotron, we provide installation, commissioning, operator training, and after-sales support of the welding positioners.
