Headstock Tailstock welding positioner-2 Axis

Rotate & Height adjustment for long parts with precision

Headstock tailstock welding positioner- 2 Axis

Heavy-duty Cyclotron Headstock tailstock welding positioners (2 Axis) from 500 kgs to 50 tons load capacity. Designed for Chasis, dumpers, pipes, booms, structural frames, pressure vessels, wind components, and oversized fabrications requiring synchronized 360° rotation.

Up to 50 Tons Load Capacity
Smooth Variable Speed Rotation
Precision Rotational Control
Remote Control Options
Designed for Continuous Industrial Operation

Headstock tailstock welding positioner 2 axis

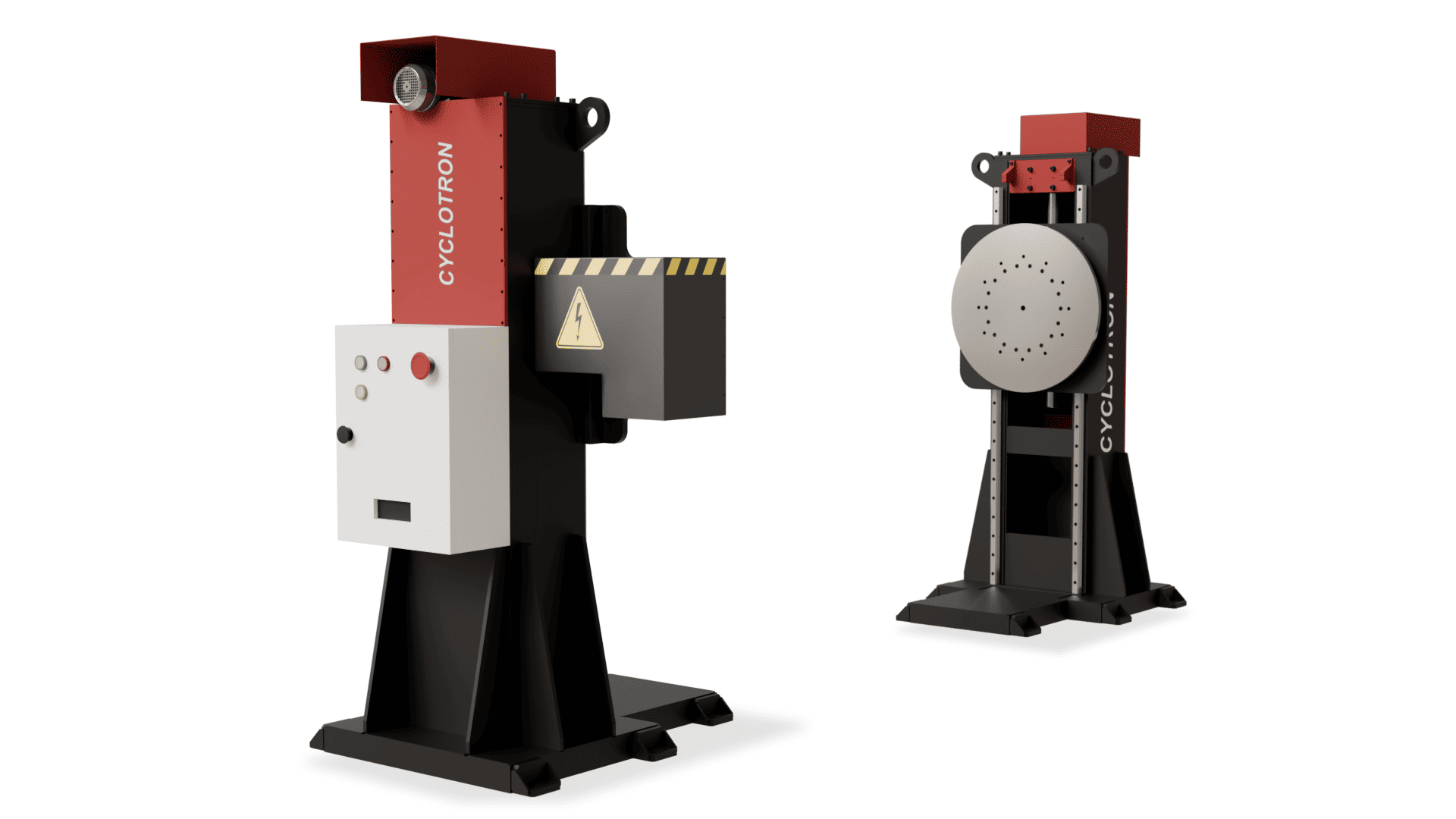

Headstock tailstock welding positioner-5

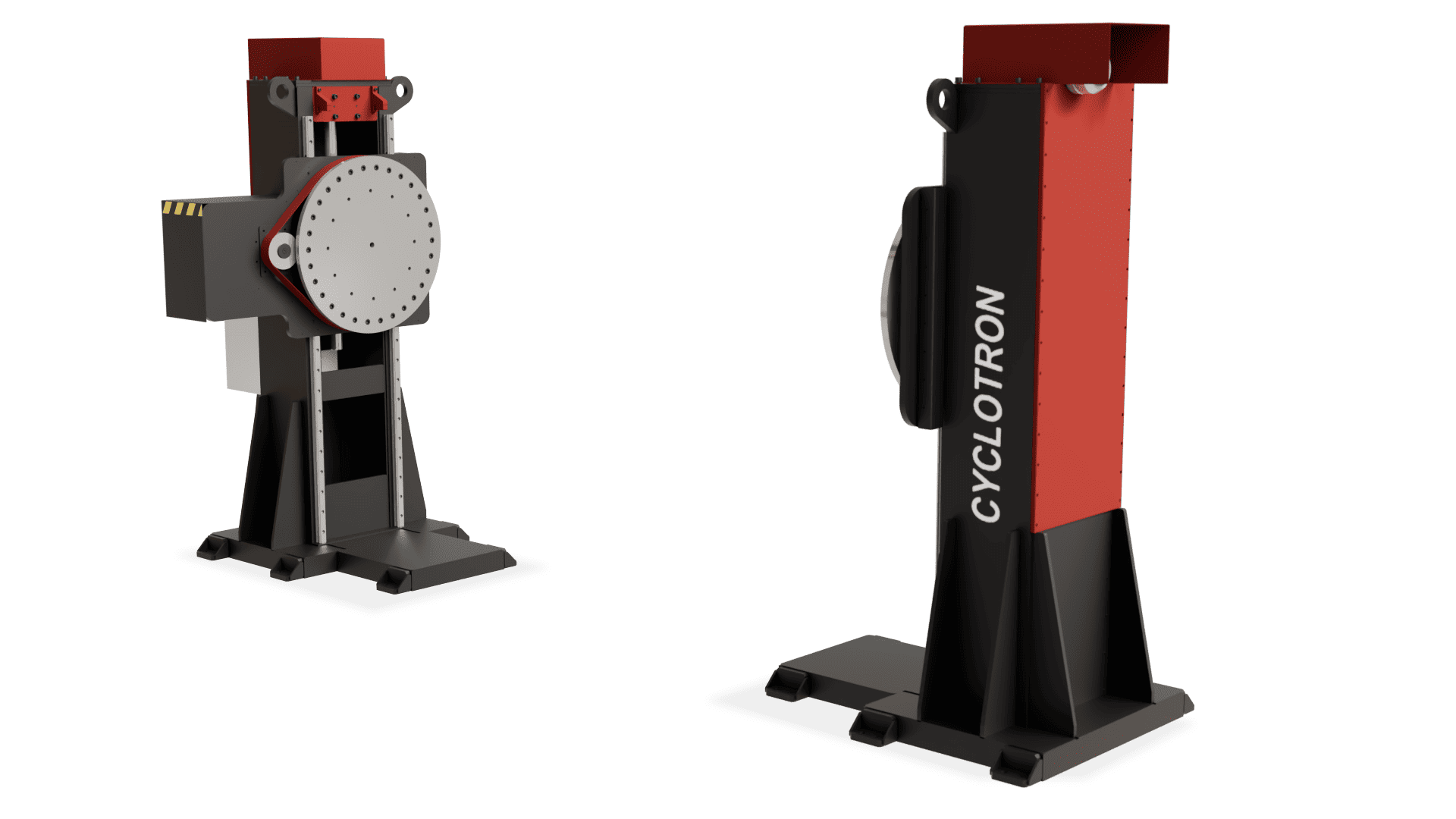

Headstock tailstock welding positioner-2

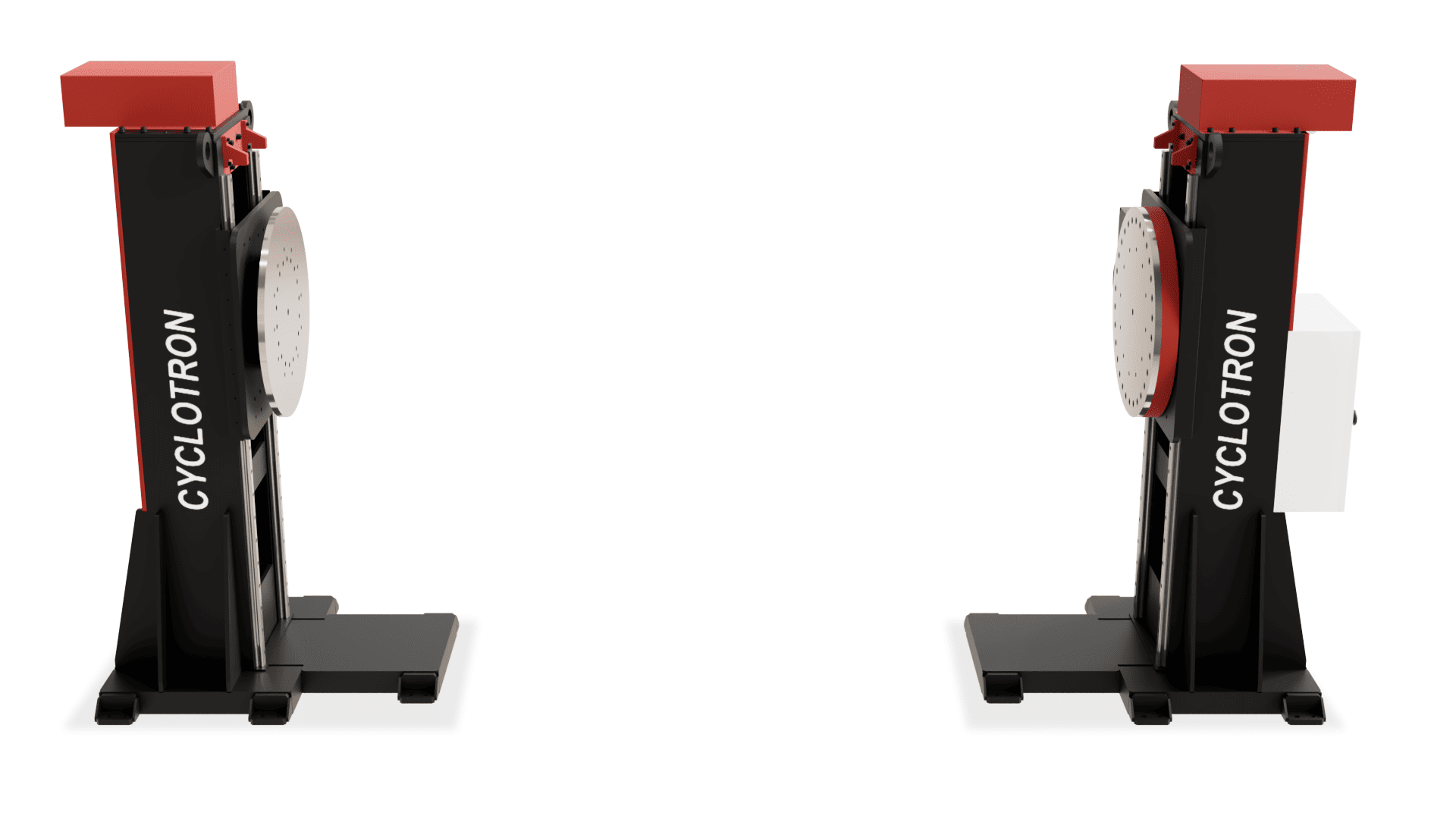

Headstock tailstock welding positioner-3

Introduction

Handling long and heavy fabrications can be challenging, especially when weld joints are difficult to reach. Cyclotron’s 2-Axis Headstock Tailstock Welding Positioners rotate and tilt the workpiece, making welding safer, faster, and more efficient. Designed for capacities from 500 kg to 50 tons, these positioners help improve weld quality, streamline production, and support manual, automated, and robotic welding applications.

Need a solution tailored to your application? Write to us and our engineering team will recommend the right positioner for your workpiece and production requirements.

Key features

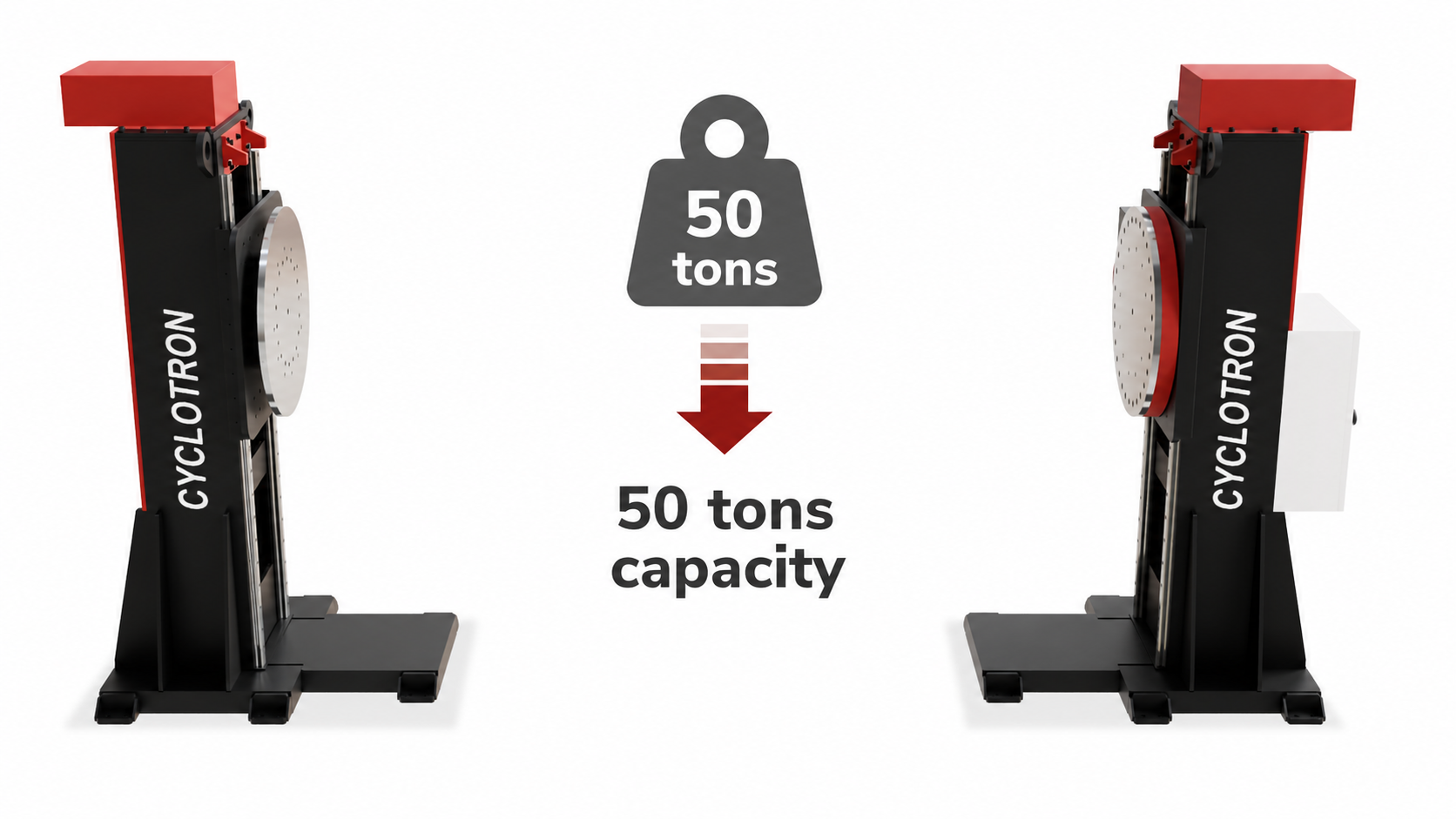

Upto 50 tons capacity

Cyclotron Headstock tailstock welding positioners are available from 500 kgs to 50 tons load capacity.

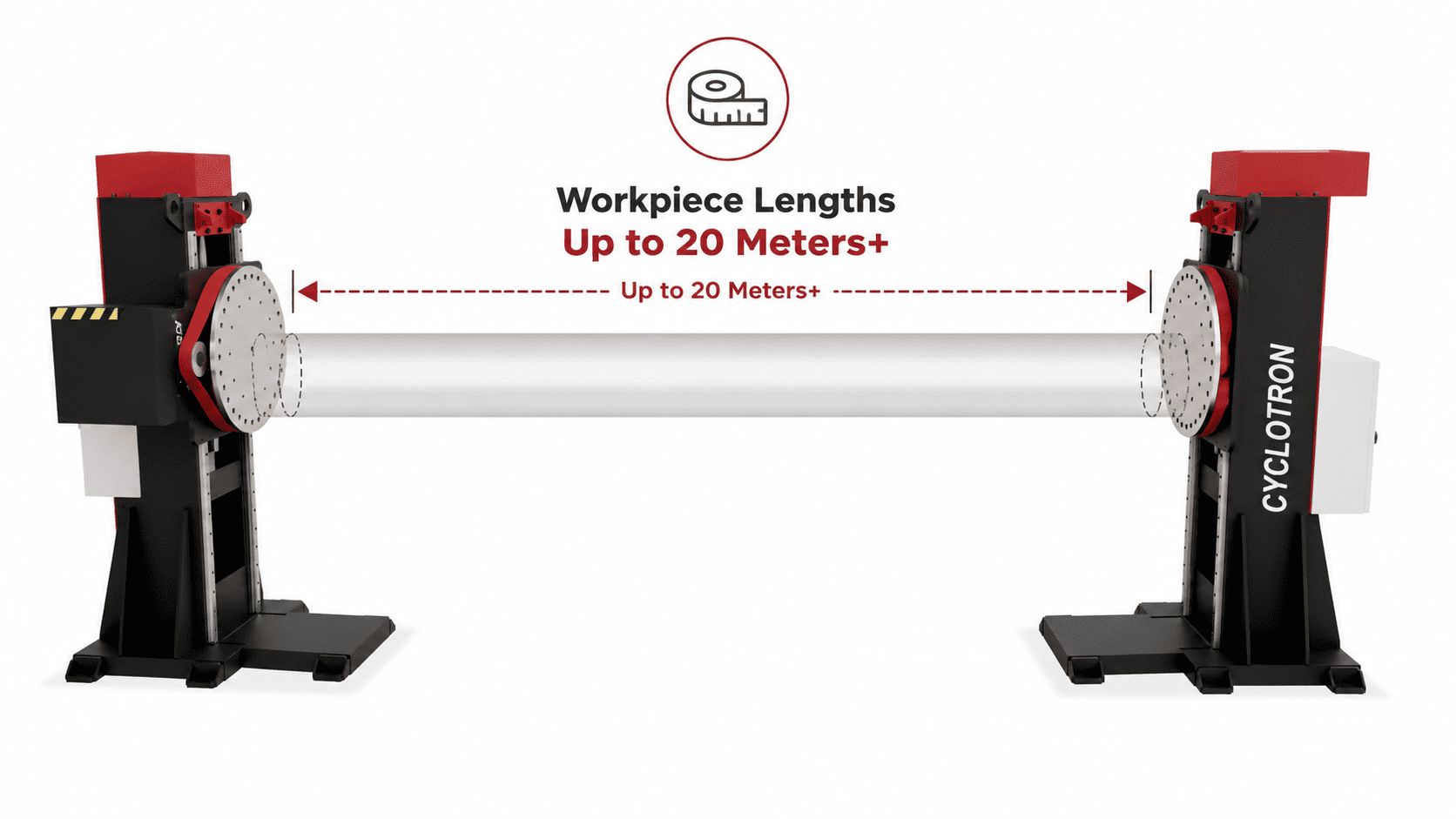

Workpiece Lengths Up to 20 Meters+

Engineered to handle long and oversized fabrications up to 20 meters and beyond. Ideal for pipes, structural beams, pressure vessels, wind energy components, and other heavy-duty welding applications.

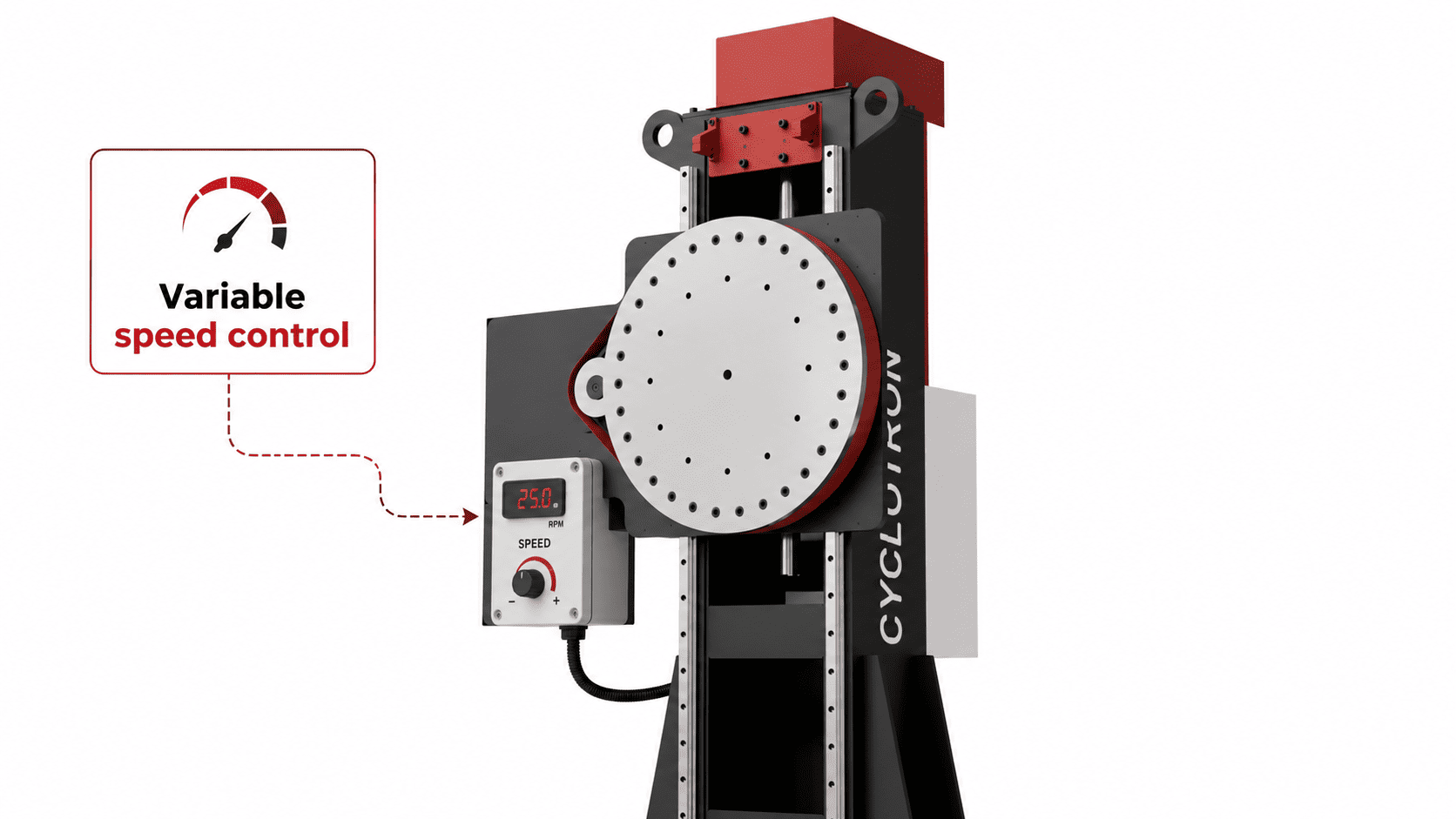

Variable Speed Rotation Control

The positioner features variable speed rotation control, enabling operators to precisely adjust the rotational speed to suit different welding processes, material thicknesses, and workpiece sizes.

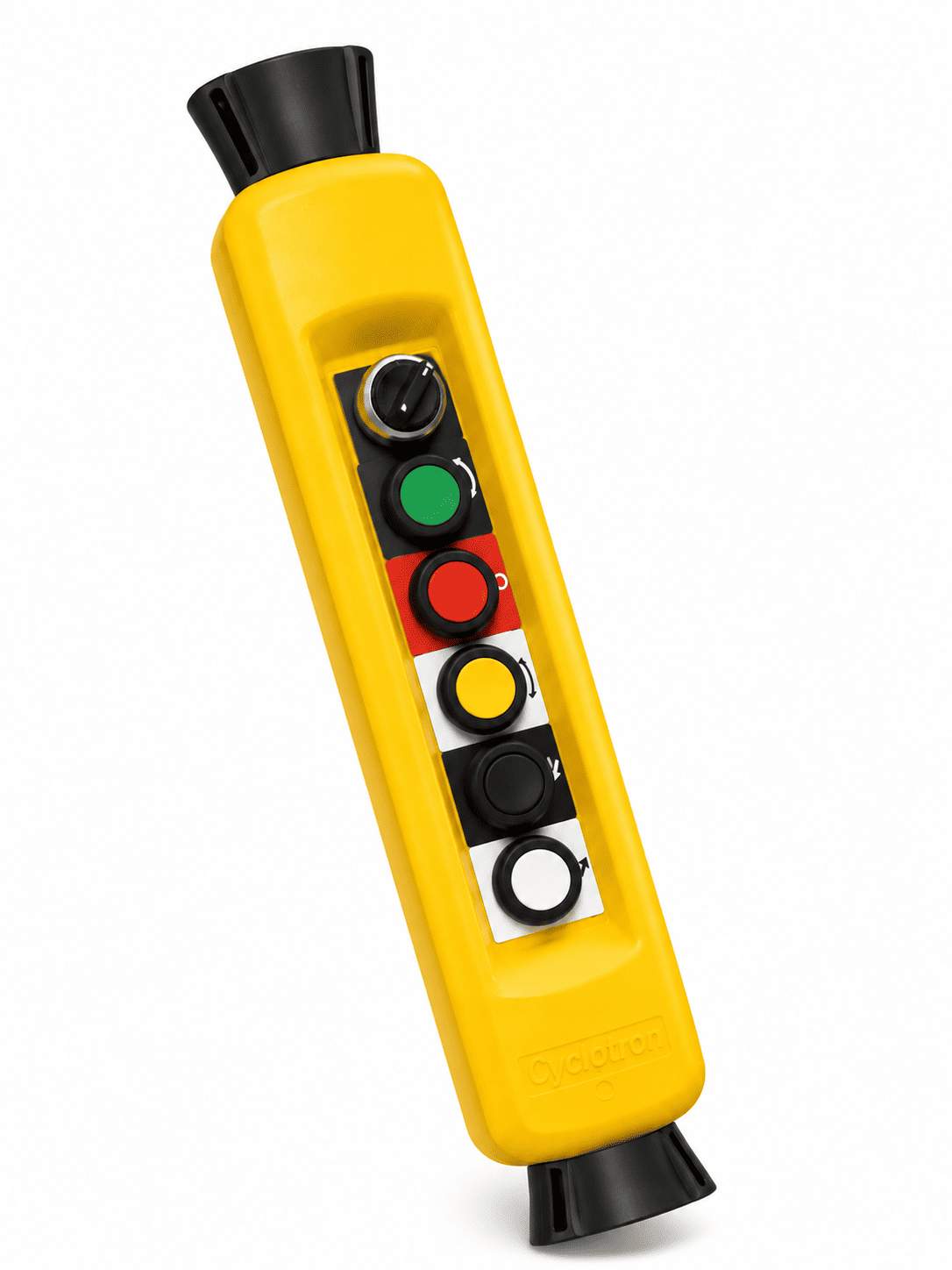

Pendant operated

The ergonomic pendant control allows operators to conveniently control rotation, start/stop functions, and speed adjustments from a safe working distance, improving precision, productivity, and operational safety.

Branded gearbox and motors

Equipped with internationally recognized gearboxes and motors for reliable performance and long service life. Backed by a 1-year global warranty, allowing warranty claims and support anywhere in the world for complete peace of mind.

Synchronized Headstock-Tailstock Drive

The synchronized headstock-tailstock drive system ensures smooth and uniform rotation of long workpieces, minimizing misalignment and vibration while delivering stable positioning for high-quality welding results.

Safety first approach

Designed with operator safety as a top priority, the positioner incorporates multiple safety features including emergency stop systems, secure locking mechanisms, and reliable control options.

1 Year Warranty

Every positioner is backed by a 1-year warranty against manufacturing defects, ensuring dependable performance and customer confidence. Our dedicated support team provides prompt assistance.

2-Axis Headstock Tailstock Welding Positioner Overview

Cyclotron’s 2-Axis Headstock Tailstock Welding Positioners are engineered to position long and heavy workpieces with precision.

Combining controlled rotation with tilting, they simplify complex welding operations, improve workflow, and ensure stable positioning throughout the welding process. Built for demanding fabrication environments, they are available in capacities up to 50 tons and can be integrated into both manual and robotic welding cells.

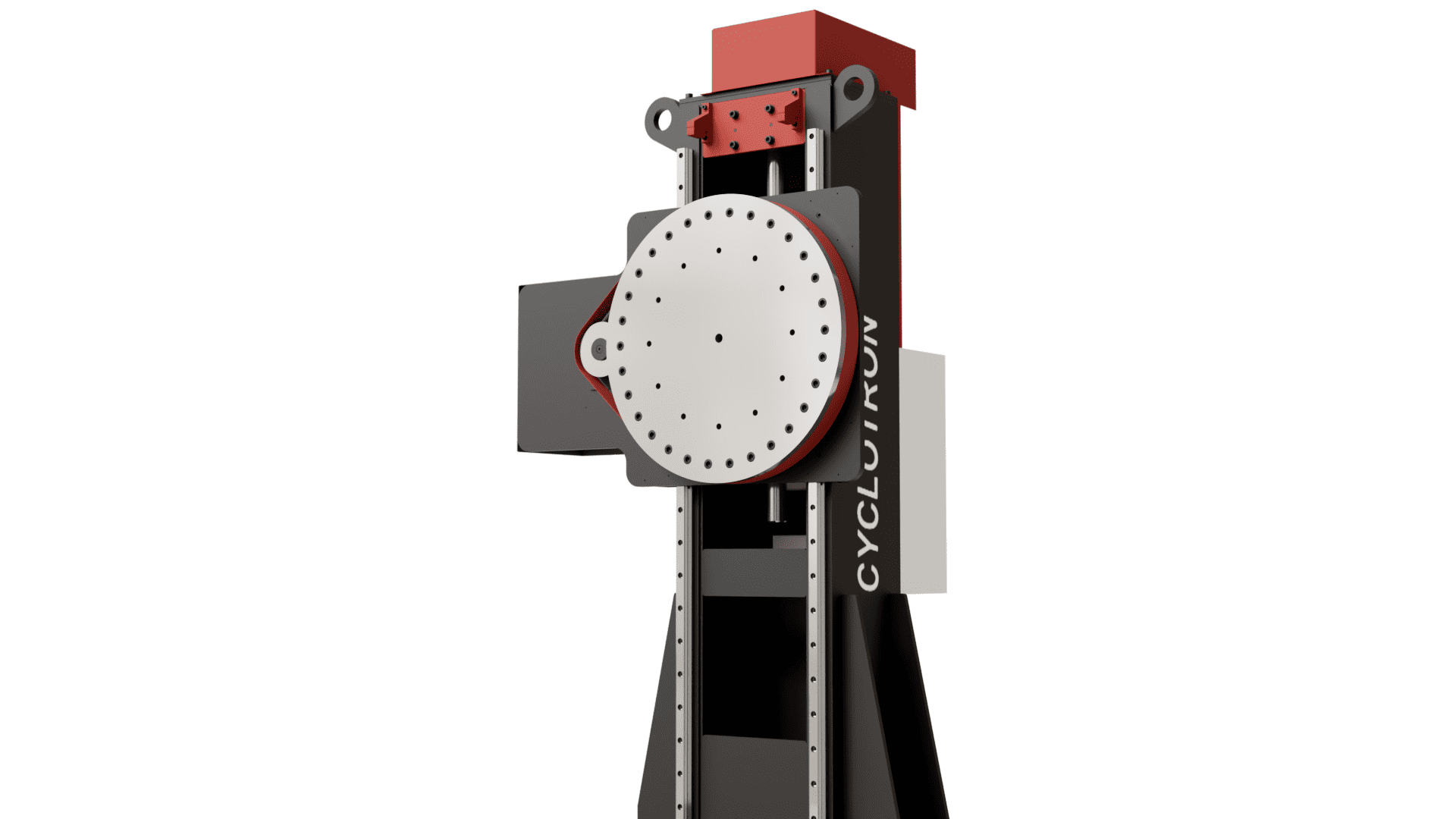

Headstock tailstock welding positioner-4

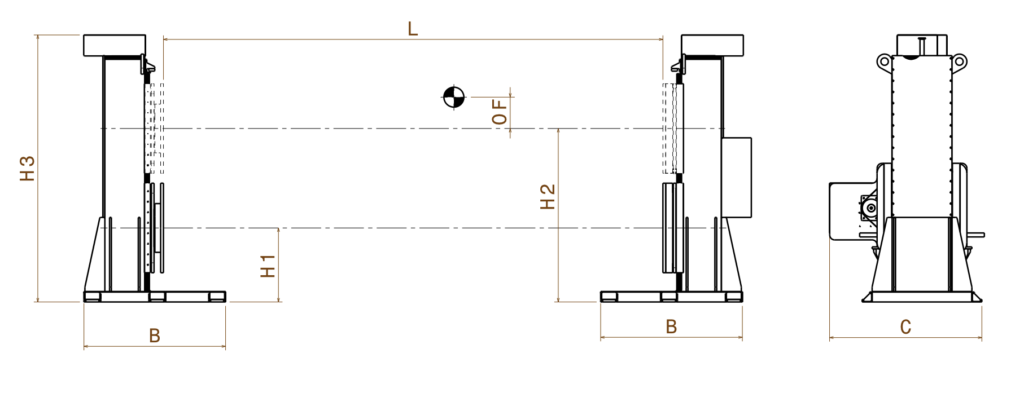

Headstock tailstock welding positioner charts

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-1.5	CY-HTP-2AX-3	CY-HTP-2AX-5	CY-HTP-2AX-6	CY-HTP-2AX-8	CY-HTP-2AX-10	CY-HTP-2AX-12	CY-HTP-2AX-15	CY-HTP-2AX-20	CY-HTP-2AX-30
Capacity		kg	1500	3000	5000	6000	8000	10000	12000	15000	20000	30000
Rotation Speed		rpm	0.2 - 1.2	0.2 - 1.15	0.2 - 1	0.2 - 1.2	0.1 - 0.68	0.1 - 0.62	0.1 - 0.67	0.1-0.5	0.1-0.4	0.1-0.4
Up & Down Speed		mm/min	540	500	500	450	500	450	450	450	400	400
Max. Rotational Torque		Nm	5000	10150	17800	20550	24000	30000	36000	45000	60000	90000
Up & Down Torque		Nm	200	326	446	490	862	950	950	1100	1200	1300
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600	600-1600	600-1600	600-1600	600-1600	600-1600	600-1600	700-1800	700-1800	700-1800
Offset Distance	OF	mm	300	300	300	300	300	300	300	100	100	100
Table Plate Diameter	ØD	mm	600	650	750	750	750	850	1000	1000	1000	1000
Max. Workpiece Diameter		mm	3200	3200	3200	3200	3200	3200	3200	3600	3600	3600
Height	H3	mm	2240	2260	2560	2560	2700	2900	2900	2900	2900	2900
Length	B	mm	1100	1200	1200	1300	1400	1400	1500	1600	1600	1650
Width	C	mm	1455	1530	1570	1570	1500	1640	1680	1700	1750	1750
Space Distance	L	mm	6000	6000	6000	6000	6000	6000	6000	8000	10000	10000
Motor Power Of Table		kW	0.75 x 1	1.5 x 1	1.5 x 2	1.5 x 2	1.5 x 2	1.5 x 2	2.2 x 2	2.5 x 2	2.5 x 2	3 x 2
Motor Power of Lifting		kW	0.75 x 2	1.1 x 2	1.5 x 2	1.5 x 2	3 x 2	3 x 2	3 x 2	3.5 x 2	3.5 x 2	3.5 x 2
Weight		kg	1500	1700	2100	2200	2300	2500	2700	3000	3300	3600

*The above values can change without prior notice. The values are approximate.

Universal Positioner technical charts

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-1.5
Capacity		kg	1500
Rotation Speed		rpm	0.2 - 1.2
Up & Down Speed		mm/min	540
Max. Rotational Torque		Nm	5000
Up & Down Torque		Nm	200
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	600
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2240
Length	B	mm	1100
Width	C	mm	1455
Space Distance	L	mm	6000
Motor Power Of Table		kW	0.75 x 1
Motor Power of Lifting		kW	0.75 x 2
Weight		kg	1500

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-3
Capacity		kg	3000
Rotation Speed		rpm	0.2 - 1.15
Up & Down Speed		mm/min	500
Max. Rotational Torque		Nm	10150
Up & Down Torque		Nm	326
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	650
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2260
Length	B	mm	1200
Width	C	mm	1530
Space Distance	L	mm	6000
Motor Power Of Table		kW	1.5 x 1
Motor Power of Lifting		kW	1.1 x 2
Weight		kg	1700

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-5
Capacity		kg	5000
Rotation Speed		rpm	0.2 - 1
Up & Down Speed		mm/min	500
Max. Rotational Torque		Nm	17800
Up & Down Torque		Nm	446
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	750
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2560
Length	B	mm	1200
Width	C	mm	1570
Space Distance	L	mm	6000
Motor Power Of Table		kW	1.5 x 2
Motor Power of Lifting		kW	1.5 x 2
Weight		kg	2100

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-6
Capacity		kg	6000
Rotation Speed		rpm	0.2 - 1.2
Up & Down Speed		mm/min	450
Max. Rotational Torque		Nm	20550
Up & Down Torque		Nm	490
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	750
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2560
Length	B	mm	1300
Width	C	mm	1570
Space Distance	L	mm	6000
Motor Power Of Table		kW	1.5 x 2
Motor Power of Lifting		kW	1.5 x 2
Weight		kg	2200

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-8
Capacity		kg	8000
Rotation Speed		rpm	0.1 - 0.68
Up & Down Speed		mm/min	500
Max. Rotational Torque		Nm	24000
Up & Down Torque		Nm	862
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	750
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2700
Length	B	mm	1400
Width	C	mm	1500
Space Distance	L	mm	6000
Motor Power Of Table		kW	1.5 x 2
Motor Power of Lifting		kW	3 x 2
Weight		kg	2300

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-10
Capacity		kg	10000
Rotation Speed		rpm	0.1 - 0.62
Up & Down Speed		mm/min	450
Max. Rotational Torque		Nm	30000
Up & Down Torque		Nm	950
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	850
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2900
Length	B	mm	1400
Width	C	mm	1640
Space Distance	L	mm	6000
Motor Power Of Table		kW	1.5 x 2
Motor Power of Lifting		kW	3 x 2
Weight		kg	2500

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-12
Capacity		kg	12000
Rotation Speed		rpm	0.1 - 0.67
Up & Down Speed		mm/min	450
Max. Rotational Torque		Nm	36000
Up & Down Torque		Nm	950
Adjust, tilting axle height min.-max	H1-H2	mm	600-1600
Offset Distance	OF	mm	300
Table Plate Diameter	ØD	mm	1000
Max. Workpiece Diameter		mm	3200
Height	H3	mm	2900
Length	B	mm	1500
Width	C	mm	1680
Space Distance	L	mm	6000
Motor Power Of Table		kW	2.2 x 2
Motor Power of Lifting		kW	3 x 2
Weight		kg	2700

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-15
Capacity		kg	15000
Rotation Speed		rpm	0.1-0.5
Up & Down Speed		mm/min	450
Max. Rotational Torque		Nm	45000
Up & Down Torque		Nm	1100
Adjust, tilting axle height min.-max	H1-H2	mm	700-1800
Offset Distance	OF	mm	100
Table Plate Diameter	ØD	mm	1000
Max. Workpiece Diameter		mm	3600
Height	H3	mm	2900
Length	B	mm	1600
Width	C	mm	1700
Space Distance	L	mm	8000
Motor Power Of Table		kW	2.5 x 2
Motor Power of Lifting		kW	3.5 x 2
Weight		kg	3000

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-20
Capacity		kg	20000
Rotation Speed		rpm	0.1-0.4
Up & Down Speed		mm/min	400
Max. Rotational Torque		Nm	60000
Up & Down Torque		Nm	1200
Adjust, tilting axle height min.-max	H1-H2	mm	700-1800
Offset Distance	OF	mm	100
Table Plate Diameter	ØD	mm	1000
Max. Workpiece Diameter		mm	3600
Height	H3	mm	2900
Length	B	mm	1600
Width	C	mm	1750
Space Distance	L	mm	10000
Motor Power Of Table		kW	2.5 x 2
Motor Power of Lifting		kW	3.5 x 2
Weight		kg	3300

*The above values can change without prior notice. The values are approximate.

CY-HTP-2AX	Sym	Unit	CY-HTP-2AX-30
Capacity		kg	30000
Rotation Speed		rpm	0.1-0.4
Up & Down Speed		mm/min	400
Max. Rotational Torque		Nm	90000
Up & Down Torque		Nm	1300
Adjust, tilting axle height min.-max	H1-H2	mm	700-1800
Offset Distance	OF	mm	100
Table Plate Diameter	ØD	mm	1000
Max. Workpiece Diameter		mm	3600
Height	H3	mm	2900
Length	B	mm	1650
Width	C	mm	1750
Space Distance	L	mm	10000
Motor Power Of Table		kW	3 x 2
Motor Power of Lifting		kW	3.5 x 2
Weight		kg	3600

*The above values can change without prior notice. The values are approximate.

Working of Head and tailstock positioner

Cyclotron’s 2-axis headstock tailstock welding positioner combines controlled rotation and tilting to keep the workpiece in the ideal welding position. This improves weld accessibility, reduces handling time, and supports both manual and automated welding.

1.Headstock Rotation Drive System

A powered headstock rotates the workpiece smoothly and accurately, allowing continuous access to weld joints without manual repositioning.

2. Tilting Mechanism and Position Control

The tilting axis positions the workpiece at the required angle, making difficult welds easier to reach while improving operator comfort.

3. Tailstock Synchronization System

The synchronized tailstock supports long and heavy workpieces, ensuring stable rotation and precise alignment throughout the welding process.

4. Workpiece Clamping and Support

The workpiece is securely clamped between the headstock and tailstock to maintain stability and positioning accuracy during welding.

5. Servo-Controlled Motion

Servo-driven controls provide smooth, repeatable movement for precise positioning and reliable robotic welding performance.

6. Automated Welding Cell Integration

The positioner integrates easily with automated welding cells, helping increase productivity and improve weld consistency.

7. PLC and HMI Control Systems

User-friendly PLC and HMI controls simplify operation, making positioning faster, safer, and easier for operators.

Key features of headstock tailstock welding positioners

1. Dual-End Sturdy Support This positioner offers rigid support at both ends of the workpiece, minimizing deflection, sagging, and vibration during welding. By stabilizing the component throughout the weld cycle, the system ensures consistent weld penetration and high-quality seam integrity, particularly on long or asymmetrical structures.
Optional Powered Tailstock For more demanding applications, the tailstock can be configured as a powered unit, capable of synchronized rotation with the headstock. This enhances the balance and alignment of especially heavy or off-center workpieces, leading to smoother motion control and better positioning accuracy.
High Load-Bearing Capacity Built to handle extreme workloads, this robotic positioner supports payloads ranging from a few hundred kilograms to several tons, depending on the model. This makes it ideal for heavy fabrication industries where large-scale components are the norm, such as oil and gas, shipbuilding, construction equipment, and aerospace.

Industrial-Grade Construction The system is constructed using high-strength, wear-resistant steel alloys and components, designed for continuous-duty operation in harsh industrial environments. The rugged frame and precision-machined bearings ensure long service life, minimal maintenance, and reliability under demanding usage conditions.
Programmable and Robotic Integration Compatible with robotic welding arms, the headstock-tailstock positioner can be fully automated via CNC controllers or robot programming interfaces. It allows for accurate, repeatable positioning for multi-pass welding, complex joint configurations, and batch production tasks, boosting productivity and reducing human error.
Advanced Safety Systems To protect both operators and equipment, the robotic welding positioner is equipped with a range of integrated safety features, including: Limit switches to prevent over-rotation Overload detection systems for torque and weight protection Emergency stop mechanisms for rapid response Remote control operation to maintain safe working distances

Advantages of headstock tailstock welding positioners

Superior Stability: During Welding These positioners offer axial support at both ends of the workpiece, dramatically increasing structural stability during rotation. This dual-end support is crucial when handling long or heavy components, as it prevents deflection, sagging, and vibration, factors that often compromise weld quality. The result is a more stable, controlled, and precise welding environment.
Precision-Controlled Rotation: With a motorized headstock, operators can achieve highly accurate control over rotational speed and positioning. This capability is particularly beneficial for: Long seam welds Circular welds Multi-pass robotic welding
Optimal Weld Accessibility: One of the biggest welding challenges is accessing difficult-to-reach weld zones. With this positioner, the workpiece can be rotated and tilted to achieve ideal torch angles and line-of-sight access for all weld areas. This promotes: Full weld fusion Deeper penetration Reduced spatter

Enhanced Operator Safety: Manual handling of large workpieces introduces risks such as crush injuries, back strain, and exposure to hazardous welding arcs. By automating workpiece positioning, these positioners remove the need for manual lifting and frequent repositioning, significantly: Reducing operator fatigue Preventing OSHA-reportable incidents Creating a safer and more ergonomic work environment
Greater Operational Flexibility: Welding businesses often handle a diverse range of projects, from structural frames to custom pipework. The modular design of headstock and tailstock positioners allows for: Quick fixture changes Adaptation to various workpiece lengths, diameters, and weights Smooth switching between production runs
Long-Term Cost Efficiency: While the initial investment in a robotic positioner may be significant, the return on investment (ROI) is undeniable. Over time, you will see measurable cost reductions through: Lower labor dependency Faster cycle times Reduced weld defects and rework Higher throughput Consistent part quality These savings compound over projects, making this equipment an asset rather than an expense.

Conclusion

From a technical and operational standpoint, the headstock and tailstock robotic welding positioner is a game-changer in welding industry. It ensures superior weld quality, faster production cycles, and also creates a safer, more productive work environment. For any welding business looking to stay competitive in today’s automated manufacturing landscape, this equipment is a must-have.

If you are exploring reliable solutions, we recommend Cyclotron Automation. We specialize in delivering high-quality, customizable headstock-tailstock robotic welding positioners built to meet your specific industrial needs. Let’s revolutionize your welding process. Contact us today and take your welding business to the next level.

Frequently asked questions (FAQs)

1. What is a 2-axis headstock tailstock welding positioner?

It is a heavy-duty positioning system that rotates and tilts long workpieces, providing better access to weld joints and improving welding efficiency.

2. What is the difference between a 1-axis and 2-axis positioner?

A 1-axis positioner only rotates the workpiece. A 2-axis positioner rotates and tilts it for better weld accessibility and greater flexibility.

3. How much weight can a 2-axis positioner handle?

Our Cyclotron positioners manufacture models with capacities from 500 kg to 50 tons, with higher capacities available on request.

4. Can the positioner be synchronized with a welding robot?

Yes. Servo synchronization enables smooth integration with robotic welding systems and automated production lines.

5. Can the tailstock be powered?

Yes. Cyclotron provides optional powered tailstocks for improved support and synchronized movement.

6. Do you provide installation and commissioning services?

Yes. We provide installation, commissioning, operator training, and after-sales support.

Get Yours with Cyclotron Automation

Upgrade your welding operations with Cyclotron Automation. Our Headstock tailstock welding positioners are a strategic investment designed to deliver high-quality welds while significantly reducing operational costs and downtime. With these advanced machines, large and heavy workpieces are easily handled, allowing you to achieve precise welds every time without manual repositioning. Their motor-assisted controls enable smooth rotation, tilting, and vertical movement, ensuring that each weld is executed at the optimal angle for unmatched consistency and strength.

At Cyclotron Automation, we understand that every welding requirement is unique. That’s why we are committed to helping you select the best headstock tailstock welding positioner that fits your budget and specific needs. Shop with us to experience cutting-edge technology that enhances productivity, improves safety, and drives long-term savings. Let’s discuss your welding requirements, and we’ll recommend the perfect solution to elevate your operations. Get yours with Cyclotron Automation today!
