30 Ton Welding Positioner for Railway Bogie Frame in Haryana

Case Study: 3

A leading railway bogie manufacturer in Haryana was looking to increase production capacity while maintaining the welding quality required for RDSO-certified railway bogie frames. Fabricating these heavy, asymmetric structures required multiple crane-assisted lifts to reposition the workpiece, adding handling time and creating safety concerns on the shop floor.

To address these challenges, Cyclotron recommended integrating a 30 Ton Welding Positioner into the fabrication process. The positioner enabled controlled rotation and tilting of the complete bogie frame. This eliminated repeated crane handling during welding, improving operator access to weld joints, and supporting an increase in production from 30-35 frames per month to 45-55 frames per month.

The Challenge

Railway bogie frames are among the most demanding fabricated structures used in the rail industry. They are heavy, structurally complex, and highly asymmetric. More importantly, they are RDSO-certified safety-critical weldments, where every weld must consistently meet strict quality and inspection requirements.

In this type of fabrication, consistency matters more than speed. Every weld must have repeatable penetration, bead profile, and dimensional accuracy. Any variation increases the likelihood of inspection delays and quality issues.

Handling the workpiece was one of the biggest production challenges.

Before installing the welding positioner, every bogie frame required six to seven crane-assisted lifts during fabrication. Each repositioning involved removing lifting slings, rotating the frame using an overhead crane, re-fixturing the assembly, checking alignment, and preparing for the next welding operation. Besides consuming valuable production time, every lift created another opportunity to disturb the fixtured assembly.

Selecting the right equipment was also more complex than matching the machine to the workpiece weight. The bogie frame’s centre of gravity sat well away from the mounting face, creating significant eccentric loading during rotation.

The manufacturer wanted to improve productivity and also maintain the repeatability expected in certified railway fabrication.

Cyclotron Welding Positioners from India

Cyclotron manufactures industrial welding positioners from 100 kg to 100 Tons capacity, designed for robotic/manual welding, heavy fabrication, and high-production welding environments.

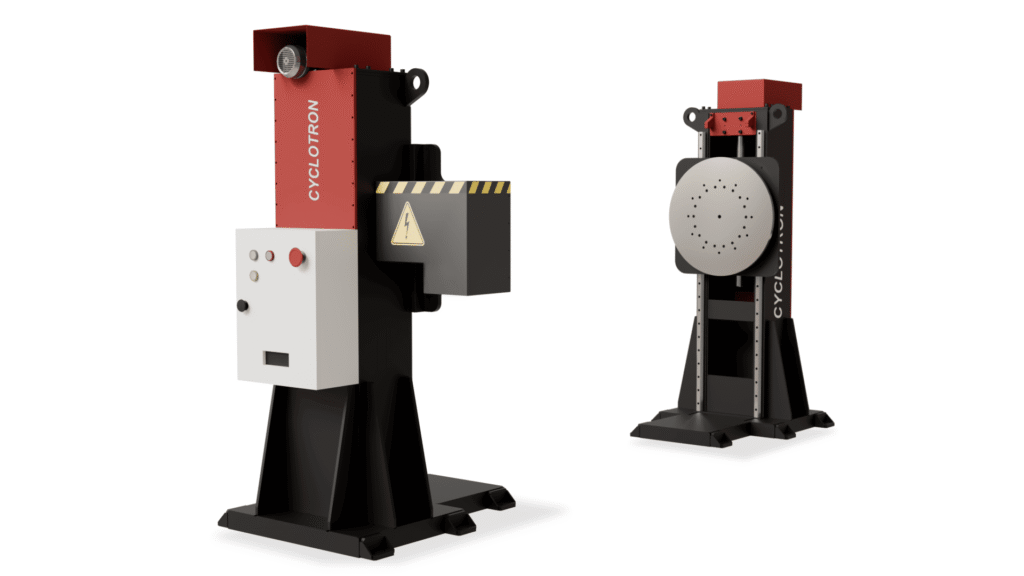

Cyclotron manufactures all types of Manual/Robotic welding positioners like 1 axis, 2 axis, 3 axis, Headstock-tailstock, L Type, skyhook, etc

Our Approach

The objective of the project was to reduce handling while creating consistent welding conditions throughout fabrication.

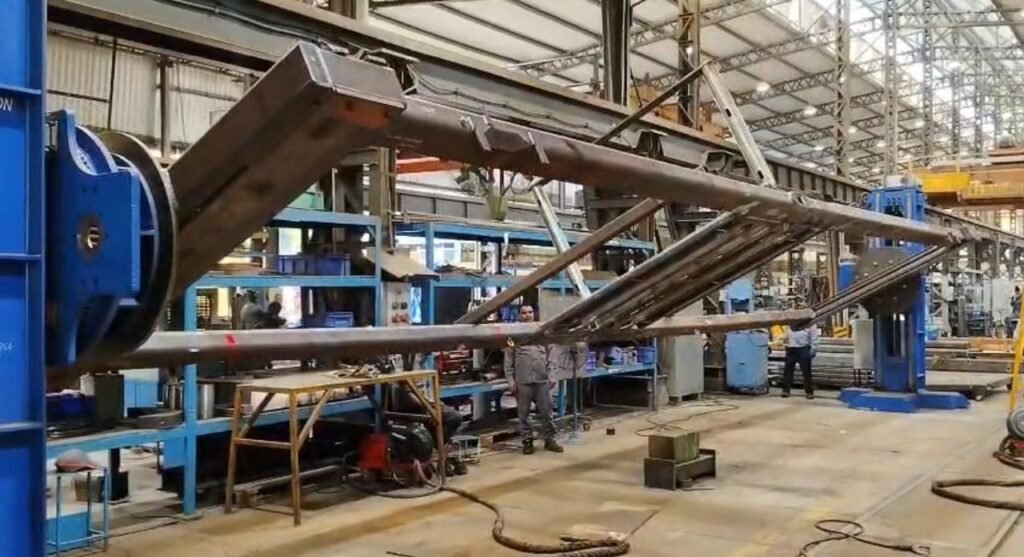

A 30 Ton Welding Positioner was designed to support the complete bogie frame and rotate or tilt it to present weld joints in the most suitable welding position. Once mounted, the workpiece remained on the machine throughout fabrication, eliminating repeated crane-assisted repositioning.

For certified railway fabrication, this was not simply a productivity improvement.

Flat-position welding provides the highest level of repeatability because it offers consistent weld penetration, a more uniform bead profile, better operator control, and fewer variables than vertical or overhead welding. It also reduces the number of weld passes required and minimises post-weld grinding.

Machine sizing was another critical aspect of the project.

Although the positioner was rated for 30 tonnes, the bogie frame’s centre of gravity was approximately 100 mm from the mounting face. This offset generated considerably higher turning moments than a centrally mounted load. The machine was therefore selected based on the actual loading conditions rather than the workpiece weight alone.

Structural rigidity was equally important. At this capacity, even small amounts of movement or deflection can affect weld quality. The positioner was designed with a robust structure, high-capacity drive system, and braking arrangement to maintain stable positioning throughout welding.

Continuous welding on heavy fabrications also requires protection of the rotating equipment. Without a dedicated return path, welding current can pass through the bearings, causing premature damage. To prevent this, the positioner incorporates an earthing brush that safely carries the welding current while protecting the bearing assembly.

For this application, the positioner was not primarily intended to make welding faster. Its purpose was to create repeatable welding conditions for a safety-critical component that must consistently satisfy inspection requirements.

Sizing a 30 Ton Machine

Selecting a heavy-duty welding positioner requires evaluating the complete loading condition, along with workpiece weight.

Here, the bogie frame’s centre of gravity was approximately 1000 mm from the mounting face, producing significant overturning moments during rotation and tilting. The positioner was therefore selected to safely handle both the 30-tonne rated load and the actual eccentric loading generated by the workpiece geometry.

This distinction is important because a machine rated for 30 tonnes under ideal conditions may not safely handle the same workpiece when the load is offset. Proper sizing considers weight, centre of gravity, mounting arrangement, and eccentricity together.

The Result

The figures below are projections based on typical arc-on-time improvements and handling-time reduction. They are not measured values from this installation.

Typical operational improvements include:

With this arrangement, we were able to

Parameter	Before	After
Crane-assisted lifts	6-7 per frame	None
Handling time	Approximately 2 hours per frame	Eliminated
Welding position	Mixed welding positions	Mostly flat-position welding
Monthly production	30-35 frames	45-55 frames

Flat-position welding generally provides:
- More consistent weld penetration
- Improved bead profile
- Fewer weld passes
- Reduced grinding and finishing work
- Better operator accessibility
A simple way to estimate the return on investment is:
Frames per month × Hours saved per frame × Loaded labour cost per hour = Estimated monthly savings
Positioner investment ÷ Monthly savings = Estimated payback period
While handling time savings contribute to productivity, the larger benefit in certified fabrication is consistency. Stable workpiece positioning reduces variation between welds and supports repeatable welding conditions throughout production. In many railway fabrication environments, preventing a single rejected or reworked safety-critical component can have a greater operational impact than the labour saved through faster handling.

Conclusion

This project demonstrates how a properly engineered 30 Ton Welding Positioner can improve both productivity and welding consistency in railway fabrication. By replacing repeated crane-assisted handling with controlled rotation and tilting of the bogie frame, the manufacturer increased production capacity from 30-35 frames to 45-55 frames per month, improved operator safety, and created more repeatable welding conditions for RDSO-certified safety-critical weldments. For heavy railway fabrication, consistent workpiece positioning is an important part of achieving consistent weld quality.
